Low hours and in excellent condition!
PRICE REDUCTION: ONLY $21,900.00
| Tonnage | 88 T | 79.832 t |
| Type | HYD | HYD |
| Overall Length | 100" | 2.5 m |
| Between Housings | 83" | 2.1 m |
| Stroke | 7.8" | 198.12 mm |
| Control | CNC (Amada Operator 2) | CNC (Amada Operator 2) |
| Dimensions | 120" x 60" x 96" high | 120" x 60" x 96" high |
| Weight | 12,680 lbs. | 12,680 lbs. |

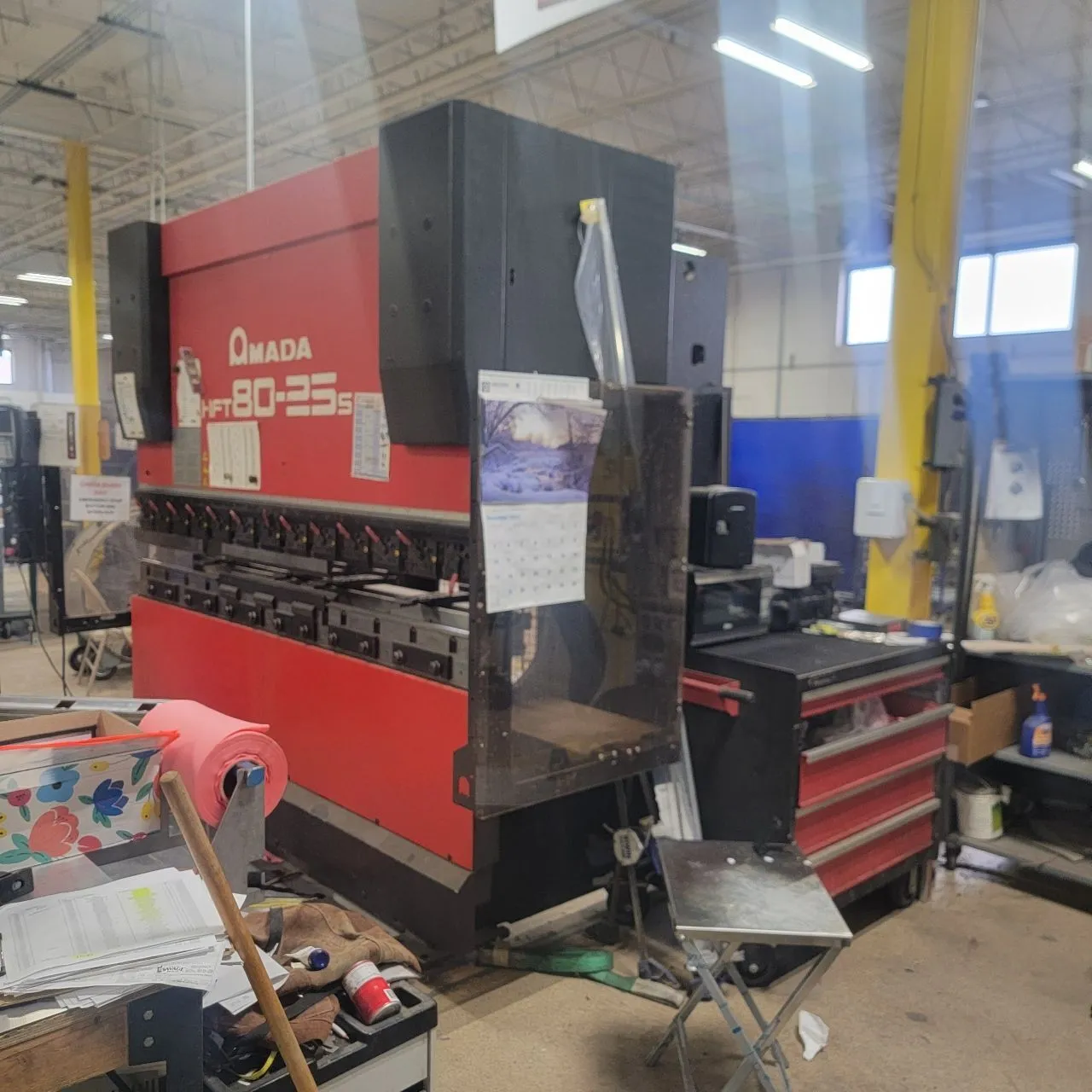

ONE USED AMADA DOWN ACTING 6-AXIS HYDRAULIC PRESS BRAKE
Model: HFT 80-25S
Tonnage: 88 ton
Overall bending length: 100”
Distance between housings: 83”
Max. stroke: 7.87”
Approach speeds: 240 ipm
Forming speed: 233 ipm
Return speed: 188 ipm
Open height: 18.5”
Throat depth: 16.5”
Dimensions: 120” x 60” x 96” high
Weight: 12,680 lbs.
Main motor: 20 HP
Wired 440v/3 ph/60cy
Equipped with:
Amada Operator 2, version V6-02A
Y1, Y2, X, R CNC controlled
4) Back gauge fingers
Remote foot pedal
Ram clamps
Manuals
Rear fence type guarding
SN: V060073
New: 2006
Condition: Very good
F.O.B. – Lake Zurich, IL $
Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.
