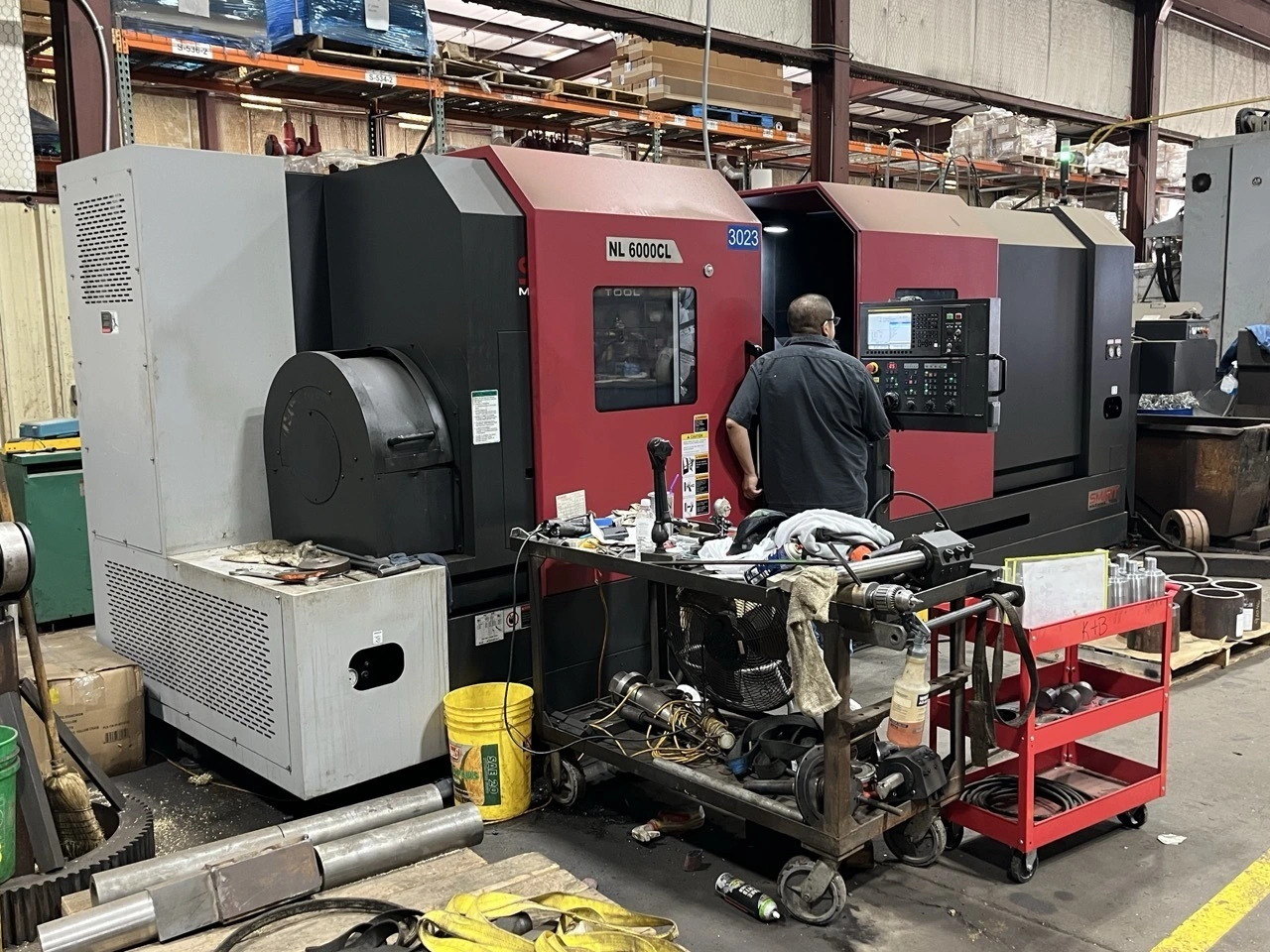

Used CNC Lathe features Fanuc 0i-TF, 24″ Samchully Air Chuck, 10.8″ thru bore, hydraulic steady rest, and programmable tailstock. Max turn dia 37.8″, length 88.58″. Spindle speed 1,000 RPM, power 73 HP. Chip conveyor included.
| # Axis | 2 | 2 |
| Chuck Size | 24" | 609.6 mm |
| Power | 73 hp | 54.4 kW |
| Max RPM | 1,000 RPM | 1,000 RPM |
| Turning Dia | 37.8" | 960.12 mm |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 236″x94.1″ | 236″x94.1″ |
| Weight | 38,140 lbs | 38,140 lbs |
Chuck Size: 24″
Max Turn Dia: 37.8″
Max Turn Length: 88.58″
Thru Hole: 10.83″
Spindle Speed: 1,000 RPM
Spindle Power: 73 HP
12 Station Turret
Dimensions: 236″x94.1″
Weight: 38,140 lbs
Fanuc 0i-TF Control
24″ Samchully Air Chuck w/ 10.8″ Hole
24″ Rear Manual Chuck
Hydraulic Steady Rest Prepped
Programmable Tailstock
140 PSI Coolant
Chip Conveyor
All Available Manuals
