USED 2005 FIPI AF510H
Overview
Description

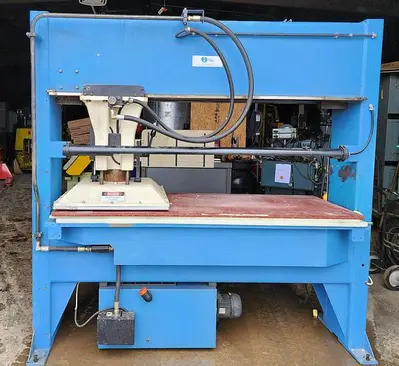

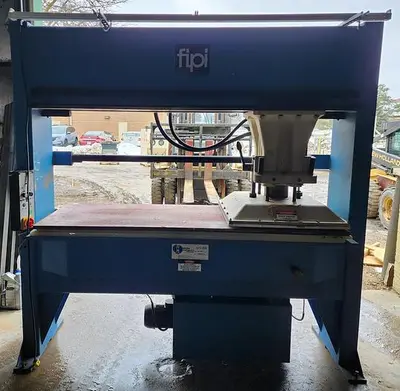

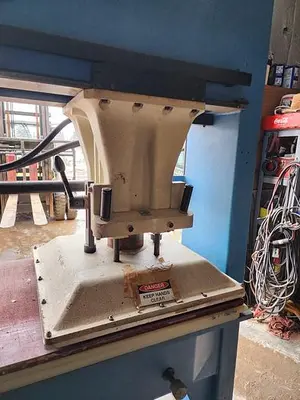

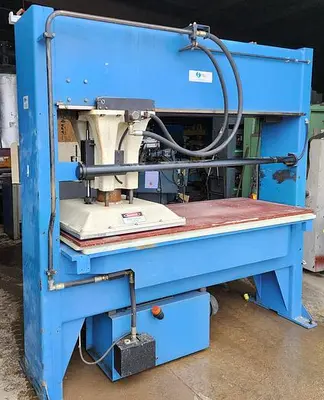

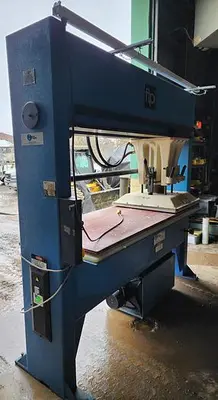

Hudson AF510H 30-Ton Traveling Head Clicker PressMassive 82" Table | Italian Built by Fipi | S# 250B20146Take your die-cutting production to the next level with this Hudson AF510H. Built by Fipi in Italy, this traveling head press is a high-capacity workhorse designed for large sheet material like leather, foam, rubber, and gaskets. The powered traveling head allows for rapid, effortless positioning across the entire 82-7/8" table, maximizing material yield and reducing operator fatigue. Featuring a robust hydraulic system and dual-hand safety controls, this machine is ready to integrate into any professional production floor.Tech SpecsModel Number: AF510H (Fipi / Hudson)Serial Number: 250B20146Capacity: 30 Ton (Hydraulic)Main Table Size: 82-7/8” LR x 29-1/2” FBTraveling Head Size: 29-1/2” x 29-1/2” (Square)Vertical Stroke: 3" – 4" (Adjustable)Motor (Hydraulic Pump): 1.85 HP (3 kW)Motor (Head Drive): 0.52 HP (0.39 kW)Power Requirement: 220V, 3-Phase, 60HzSafety Features: Dual electric safety palm buttons with non-repeat circuitApproximate Weight: 3,500 lbsKey Selling PointsHigh-Volume Sheet Cutting: The expansive table and 30-ton head allow for nesting large dies, significantly cutting down on material repositioning time.Variable Head Speed: Precision longitudinal geared drive allows the operator to control the travel speed for exact die placement.OSHA-Compliant Safety: Features synchronized dual-palm buttons and a non-repeat circuit, ensuring the press only cycles when both hands are safely clear.Italian Engineering: Fipi presses are renowned for their rigid frames and long-term durability, ensuring consistent cutting pressure across the entire work surface.
Specifications
Capacity: 30 Ton

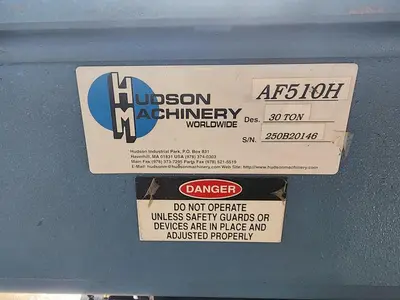

S/N: 250B20146
MOTOR DRIVE: wired 220 volts, 3-phase

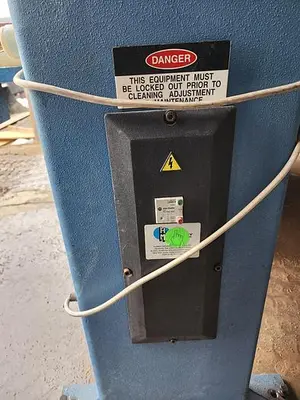

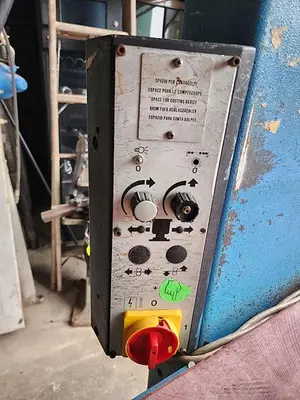

CONTROLS: Control circuit 115 volts

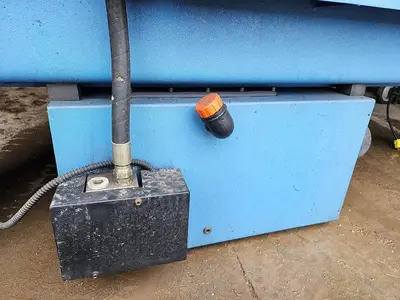

* Motor (Hydraulic Pump): 1.85 HP (3 kW)
* Power Requirement: 220V, 3-Phase, 60Hz
* Capacity: 30 Ton (Hydraulic)

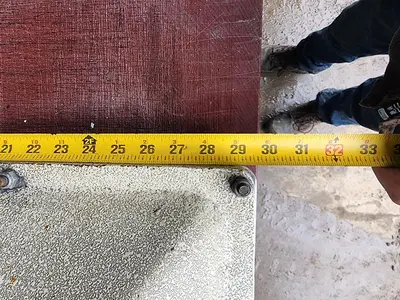

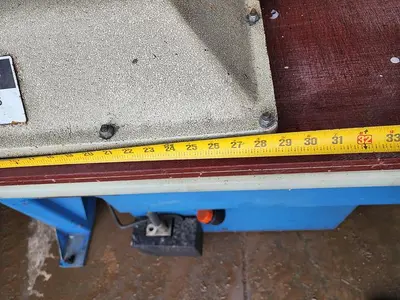

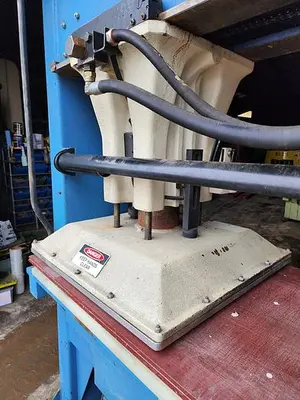

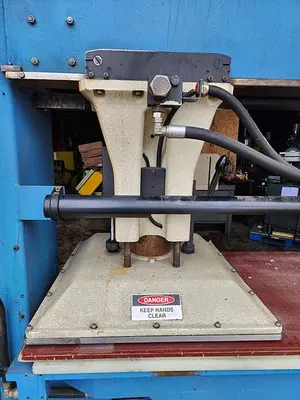

* Traveling Head Size: 29-1/2” x 29-1/2” (Square)
* Vertical Stroke: 3" – 4" (Adjustable)
* Motor (Head Drive): 0.52 HP (0.39 kW)
* Approximate Weight: 3,500 lbs
