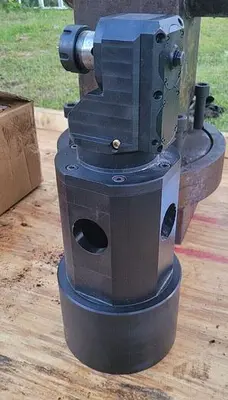

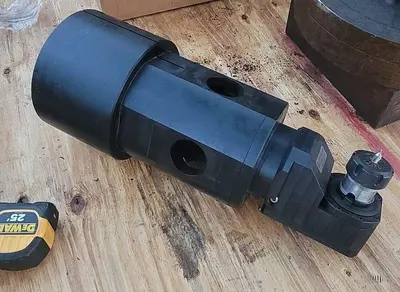

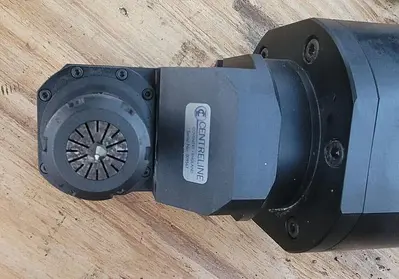

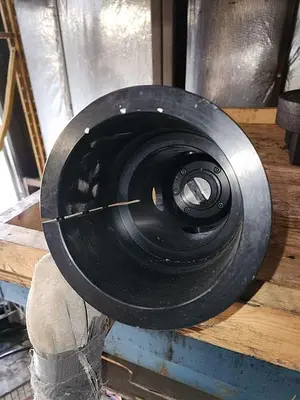

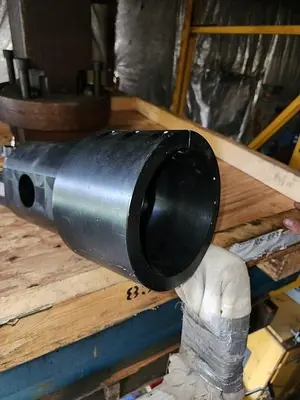

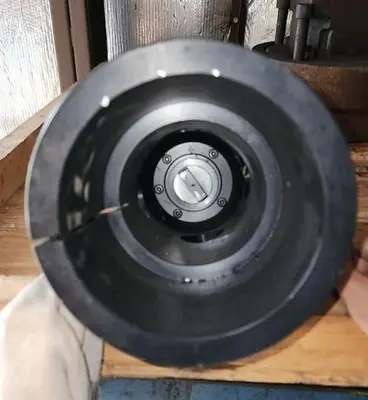

USED CENTRELINE TCL

Centreline CTL Right Angle Milling Head – TCL SeriesTaper: CAT50 | Power: 9.3 kW | Max Speed: 7,000 RPMExecutive SummaryExpand your machining envelope without the cost of a dedicated 5-axis machine. This Centreline TCL Right Angle Head is a premium, UK-manufactured attachment designed for heavy-duty CAT50 taper machines and horizontal boring mills. Engineered for rigidity and high-speed precision, this unit allows for 90-degree milling, drilling, and tapping, making it an essential tool for large-frame aerospace, automotive, and energy-sector fabrication.Technical SpecificationsSpindle Taper: CAT50Power Rating: 9.3 kW (12.5 HP) – High torque delivery for aggressive metal removalMaximum RPM: 7,000 RPM – Suitable for both high-speed finishing and standard roughingMaximum Torque: 34 NmGear Ratio: 1:1Orientation: 360° Manual AdjustmentOrigin: Made in the United Kingdom by Centreline (CTL)Key Performance FeaturesSuperior Rigidity: Features an integral drive shaft and high-precision spiral bevel gears. These gears are hardened and ground to ensure maximum power transmission with minimal vibration and noise.Compact High-Power Design: Despite its 9.3 kW rating, the TCL series maintains a streamlined profile to allow for machining in tight bores and complex internal geometries.Advanced Thermal Management: Engineered to withstand the heat generated by 7,000 RPM continuous duty cycles. The high-quality bearing arrangement ensures long-term spindle accuracy and minimal thermal growth.Versatile Mounting: Designed to be compatible with most standard CAT50 machining centers. (Note: Requires a standard or custom stop block for installation).Primary Mounting DimensionsLocation Pin Center Distance: The most critical dimension for mounting to your machine's spindle face (stop block). Standard options for the TCL series are:80 mm (Common for standard CAT50/ISO50)100 mm110 mm (Heavy-duty standard)Location Pin Diameter: Typically 18 mm or 20 mm (tapered pins are standard for CTL to ensure maximum rigidity).Shank Taper: CAT50 (7/24 taper) with standard pull stud threads.Body Diameter: Approximately 120 mm to 124 mm (designed to maintain a slim profile for bore entry).Reach (Gauge Line to Spindle Center): Standard length is typically around 160 mm to 200 mm, though "Extended" versions are available at 240 mm, 280 mm, or up to 800 mm.Technical Integration DetailsOrientation Pin Height: The pin is usually adjustable or spring-loaded to engage with the Stop Block on the machine spindle nose.Automatic Tool Changer (ATC) Compatibility: The TCL series is generally equipped with a "V-Groove" and spring-loaded interlock, allowing it to be swapped by the machine's ATC if the weight (approx. 8.5 kg to 12.3 kg) is within the machine's limit.360° Adjustment: The head can be manually rotated 360° relative to the shank, allowing you to align the 90-degree output to any radial position.

Seller notes: “Used - in excellent condition”
Modified item: No
Machine type: Right Angle Milling Head
Custom bundle: No
Max spindle speed (rpm): 7000
Function: Milling
