USED MID RIVERS M-R

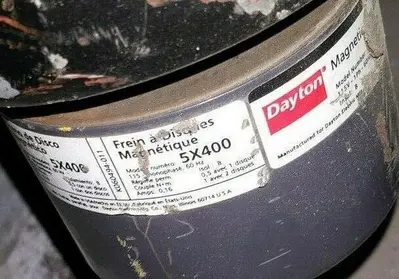

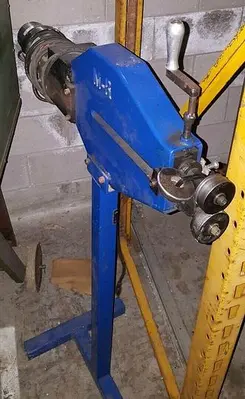

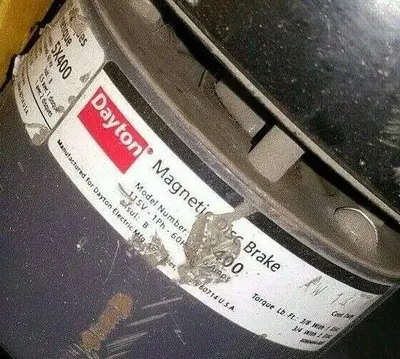

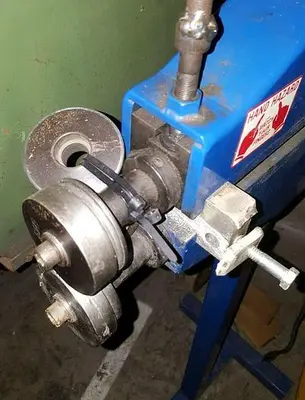

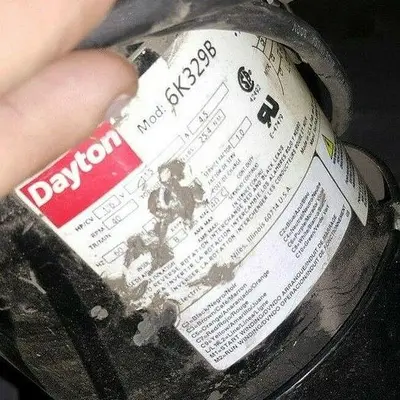

The Mid Rivers (M-R) Floor Model Roll Beader is a professional-grade rotary machine designed for high-efficiency trimming, beading, and flanging in sheet metal fabrication. This industrial-strength unit is characterized by its heavy-duty powered drive and stable floor pedestal, making it a "hands-free" solution superior to manual bench-top models.Technical SpecificationsModel: Mid Rivers Floor Model Roll Beader.Motor: 1/6 HP Dayton Motor (115V, 1 Ph, 60 Hz).Operating Speed: Fixed at approximately 40 RPM for a consistent and controlled feed.Safety Features: Equipped with a Dayton Magnetic Disc Brake safety system (Model #: 5X400) for immediate stopping power.Gauge Capacity: Typically rated for 14 to 16 gauge mild steel, depending on specific material width.Construction: Heavy-duty cast iron housing (painted M-R blue) mounted on a rugged T-base floor stand.Key FeaturesPowered "Hands-Free" Operation: The gear-driven motor allows the operator to use both hands to manipulate and guide large panels or ductwork through the rolls, significantly improving accuracy and reducing fatigue.Versatile Functionality: Designed for various rotary operations including trimming, beading, and flanging using interchangeable die sets.Precision Manual Adjustment: Features a top-mounted hand crank for manual top-shaft control, allowing for precise depth of bead or pressure adjustments.American-Made Durability: Proudly made in the USA using high-grade materials to ensure years of reliable industrial service.

Modified item: No
Custom bundle: No
Item type: Floor model Roll Beader
