USED 1997 QUINCY QSV1-4DWNN3

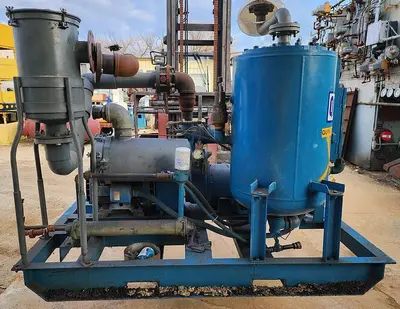

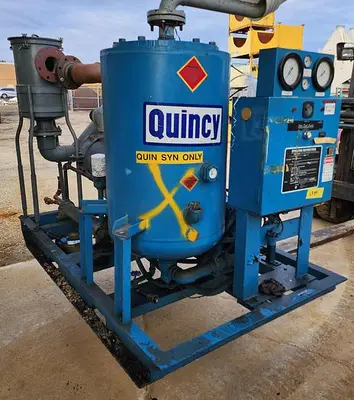

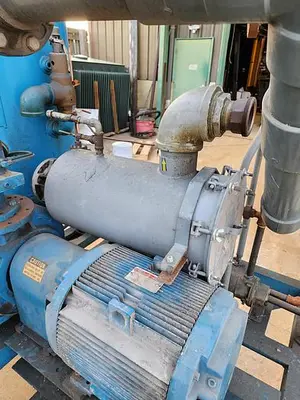

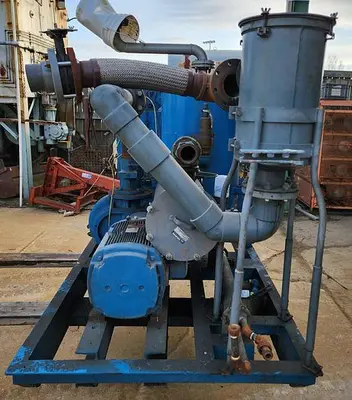

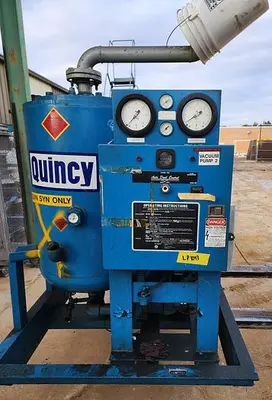

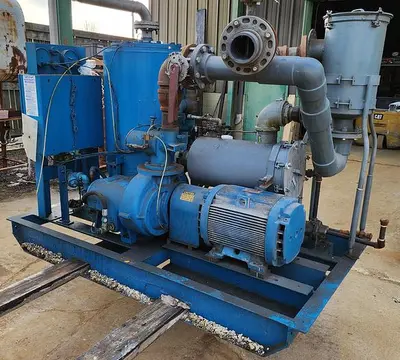

1997 Quincy QSVI-40WNN3 Skid Mounted Rotary Screw Vacuum Pump40 HP | 550 ACFM | Direct Drive | S/N: 33569Available for acquisition is a professional-grade Quincy QSVI-40WNN3 rotary screw vacuum pump. Manufactured in 1997, this 40 HP unit is built on a "compressor-duty" platform, designed for continuous 24/7 operation in the most demanding industrial environments. Unlike competitive models that lose capacity as vacuum increases, the QSVI series features specialized airend porting that maintains full delivered flow across its entire operating range.Technical SpecificationsModel: QSVI-40WNN3Year of Manufacture: 1997Serial Number: 33569Motor Size: 40 HorsepowerNominal Capacity: 550 ACFMHours: 25627Vacuum Range: 10” HgV to 29.9” HgV (0.5 torr)Voltage: 460V / 3-Phase / 60HzInlet/Outlet Connections: 4” NPT / 4” NPTApproximate Weight: 2,450 lbsDimensions: 78”L x 49”W x 60”HKey Features & PerformanceDirect-Drive Efficiency: Features a 1:1 drive ratio between the motor and the airend, eliminating the power loss, heat, and maintenance associated with belts or gearboxes.Modulating Inlet Valve: Quincy’s signature modulating valve automatically adjusts the pump's capacity to match your system's real-time demand, significantly reducing energy consumption during low-use periods.Stand-Alone Package: This is a fully integrated system including a magnetic motor starter, air-cooled horizontal draft fluid cooler, and full instrument control panel.Extreme Life Cycle: Built with oversized, compressor-style bearings designed for a 400,000-hour design life, making this a long-term asset for any facility.Air-Cooled Design: Utilizes an integrated fluid cooler and requires no seal water, saving your facility thousands in water consumption and sewer charges.Condition & LogisticsThis unit was recently decommissioned from a professional manufacturing environment and is in good physical condition.

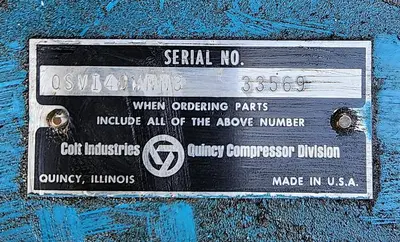

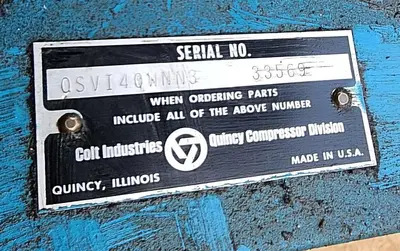

S/N: 33569

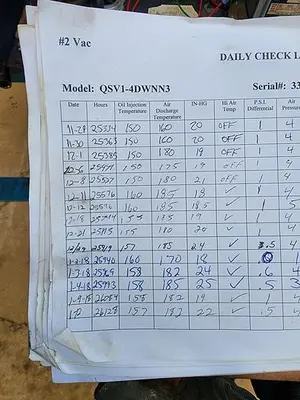

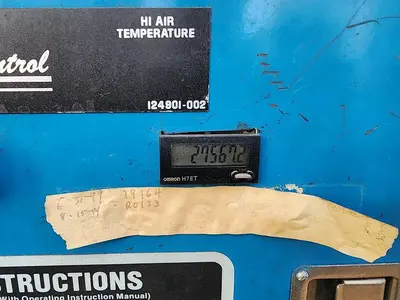

Hours: 27567.2

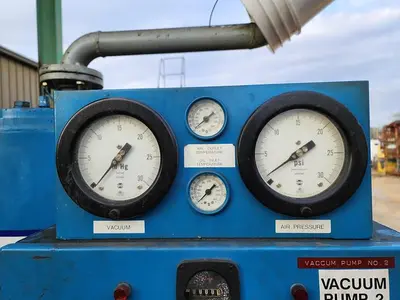

Max Vacuum: 30 Hg

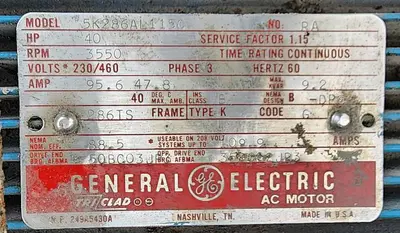

Horsepower: 40
RPM: 3550
