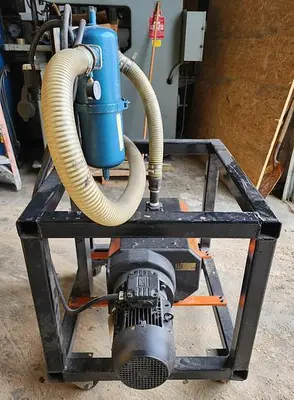

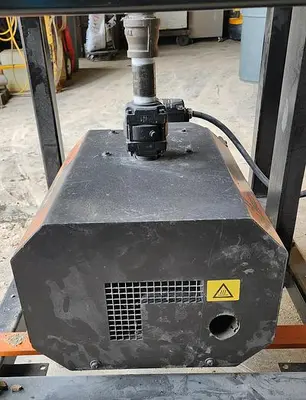

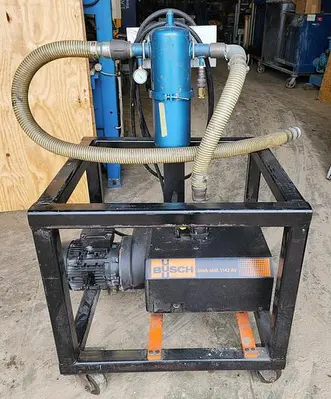

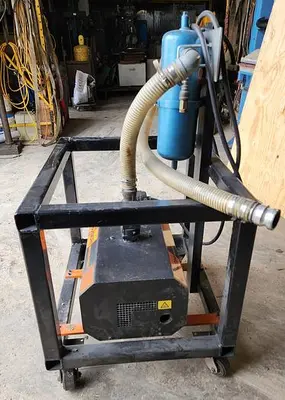

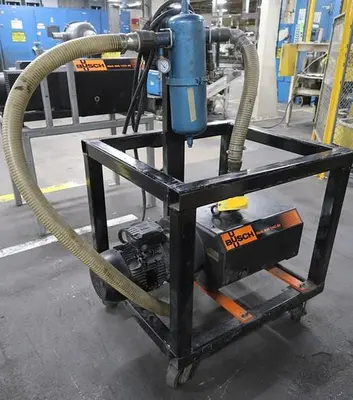

USED BUSCH MINK MM 1142 AV

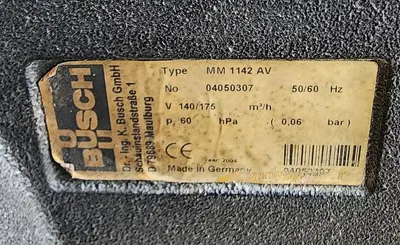

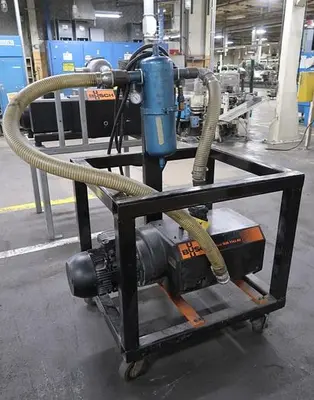

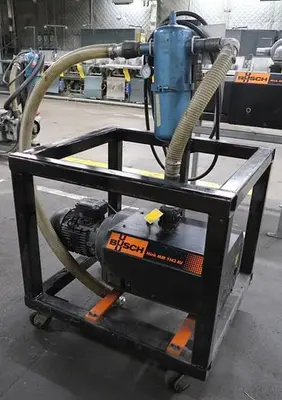

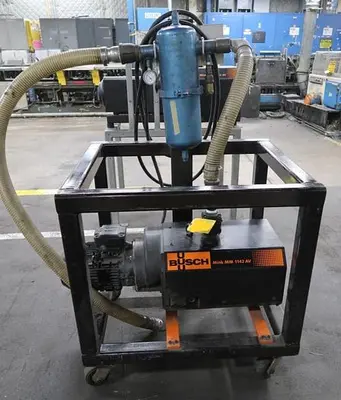

Busch Mink MM 1142 AV Dry Claw Vacuum Pump116 CFM Displacement | Oil-Free / Contactless Design | 5.3 HP | High EfficiencyAvailable for sale is a high-performance Busch Mink MM 1142 AV dry claw vacuum pump. This unit represents the peak of low-maintenance industrial vacuum technology. Because the internal claws operate without touching, there is virtually no friction or wear in the suction chamber, leading to significantly longer service intervals and lower total cost of ownership compared to rotary vane or screw pumps.Technical SpecificationsModel: Mink MM 1142 AVType: Dry Claw (Oil-Free Pumping Chamber)Free Air Displacement: 116 CFMNominal Pumping Speed: 97 ACFMUltimate Vacuum (Continuous): 37.5 Torr (28.4" HgV)Motor Power: 4.0 kW (5.3 HP)Electrical: 230/460V, 3-Phase @ 60 HzMotor Speed: 3600 RPMInlet/Outlet: 1-1/4" NPT / 1" NPTWeight: Approx. 352 lbsKey Features & PerformanceDry & Contact-Free: The dual-claw design ensures no oil is used in the vacuum path, making it ideal for clean-room, food packaging, and sensitive CNC woodworking applications.Extreme Reliability: With no vanes to break and no internal friction, the Mink series is famous for running 20,000+ hours before requiring a simple gearbox oil change.Air-Cooled Efficiency: Highly efficient air-cooling eliminates the need for water utilities or external heat exchangers.Consistent Suction: Unlike regenerative blowers, this positive displacement claw pump maintains strong vacuum levels even as airflow varies during a process.Quiet Operation: Rated at approximately 79-80 dBA, making it suitable for modern industrial plant environments.

Pump Horsepower Rating: 5.3 (4kw)
Nominal pumping speed ACFM: 97
Amps: 18-9
Free air displacement CFM: 116
End vacuum continuous duty: Torr 37.5
End vacuum intermittent duty: Torr N/A

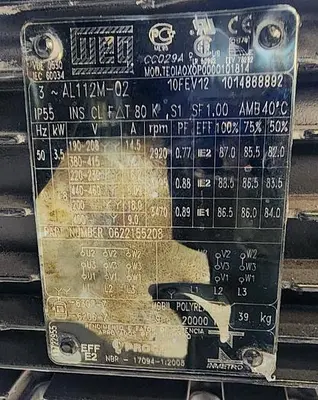

Motor size kW (HP): 4.0 (5.4)
Motor speed RPM: 3600
Sound rating dBA: 80
Approx. weight Lbs: 352
