USED ROOTS DRESSER 412 RCS-H

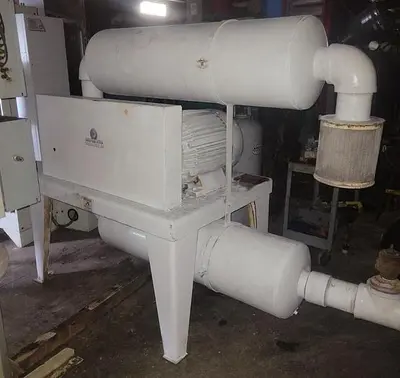

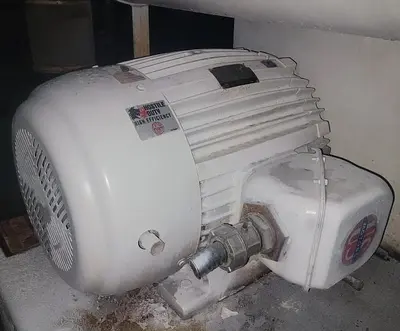

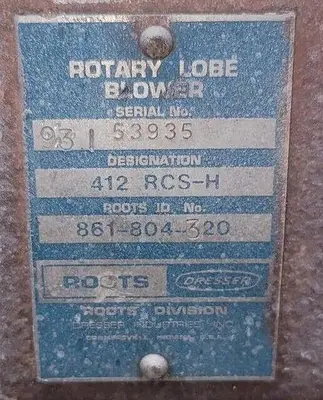

Roots 412 RCS-H Rotary Lobe Blower Package75 HP Motor | 1,106 CFM | 15 PSI / 15" Hg | S/N: 53935Available for acquisition is a high-capacity Roots Dresser 412 RCS-H rotary lobe blower package. This industrial-grade unit is engineered for continuous duty in pressure or vacuum applications, such as pneumatic conveying, wastewater aeration, or industrial suction. The RCS series features integral-shaft ductile iron impellers and a center-timed design, allowing for rotation in either direction and field-adaptable mounting.Technical SpecificationsModel: 412 RCS-H (Horizontal Airflow)Serial Number: 53935Motor Power: 75 HP (230/460V, 3-Phase, 1780 RPM)Flow Capacity: Up to 1,106 CFMMax Pressure: 15 PSIMax Vacuum: 15" HgSpeed Range: 848 RPM (Min) to 3,820 RPM (Max)Connections: 6" Flanged Inlet and OutletShaft Diameter: 1.5"Lubrication: Dual Splash Oil (Gear and Drive ends)Weight: Approx. 1,520 lbs (Full Package)Key FeaturesRugged Construction: Features a rigid one-piece grey iron casing and headplates for maximum mechanical stability.Piston Ring Seals: Effectively reduces air leakage through shaft openings, ensuring maximum volumetric efficiency.Splash Oil Lubrication: Both ends of the blower are splash-lubricated for cooler operation and reduced maintenance compared to grease-fed units.Complete Skid Package: Includes a heavy-duty steel base, 75 HP motor, V-belt drive system with safety guarding, and 6" flange ports.Condition & LogisticsThis unit was recently removed from a professional industrial facility and was in good working condition upon decommissioning.

Custom bundle: No
Modified item: No
