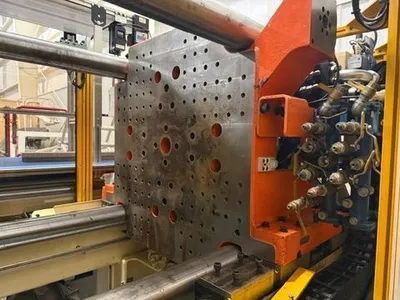

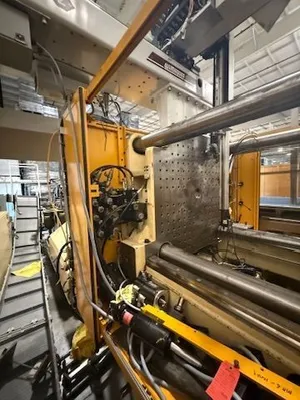

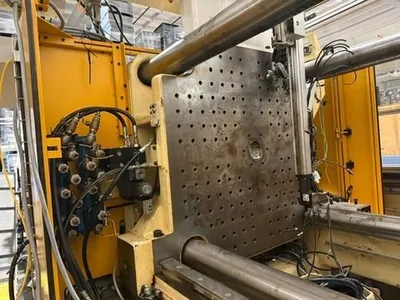

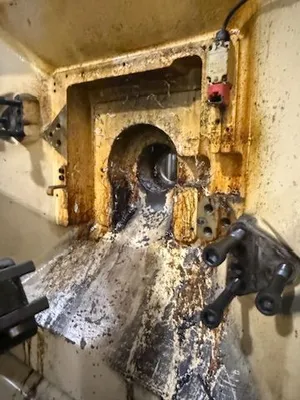

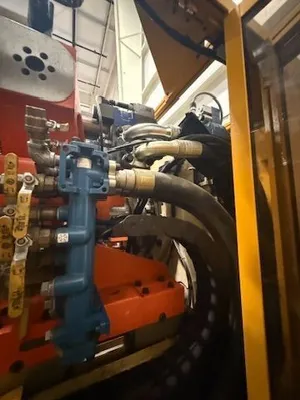

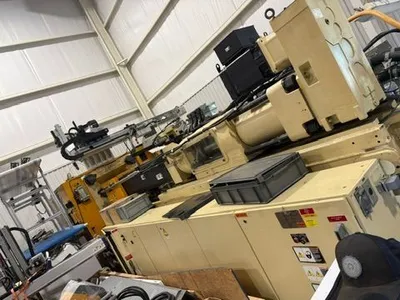

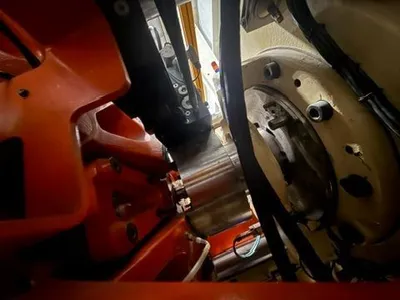

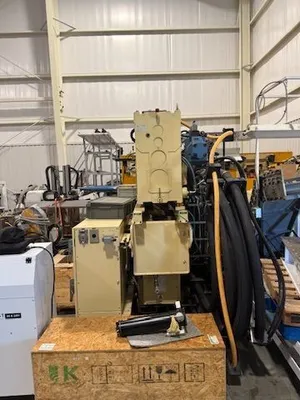

USED 2014 HUSKY Hyelectric H300 RS80/65

337 U.S. tons-force

Tie-bar spacing 30.7 × 30.7 in.

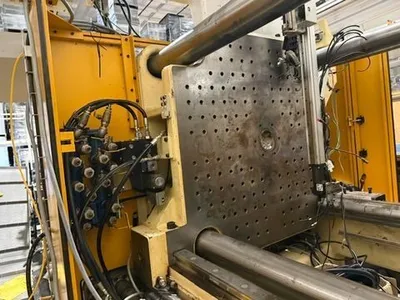

Platen size 42.5 × 44.5 in.

Clamp stroke 23.6–42.3 in.

Mold shut height 11.8–30.5 in.

Maximum daylight 54.1 in.

Ejector stroke 5.9 in.

Ejector force 16,400 lbf

Screw diameter 2.56 in.

Screw L/D ratio 25:1

Injection stroke 13.8 in.

Injection capacity 70.9 in³

Maximum shot weight 37.2 oz. of polystyrene

Injection pressure 27,470 psi

Barrel heat capacity 43 kW / 57.6 hp

Control zones 5

Dry-cycle time 2.4 seconds

Overall length 29.8 ft

Overall width 7.0 ft

Overall height 8.3 ft

Approximate machine weight 46,300 lb.
