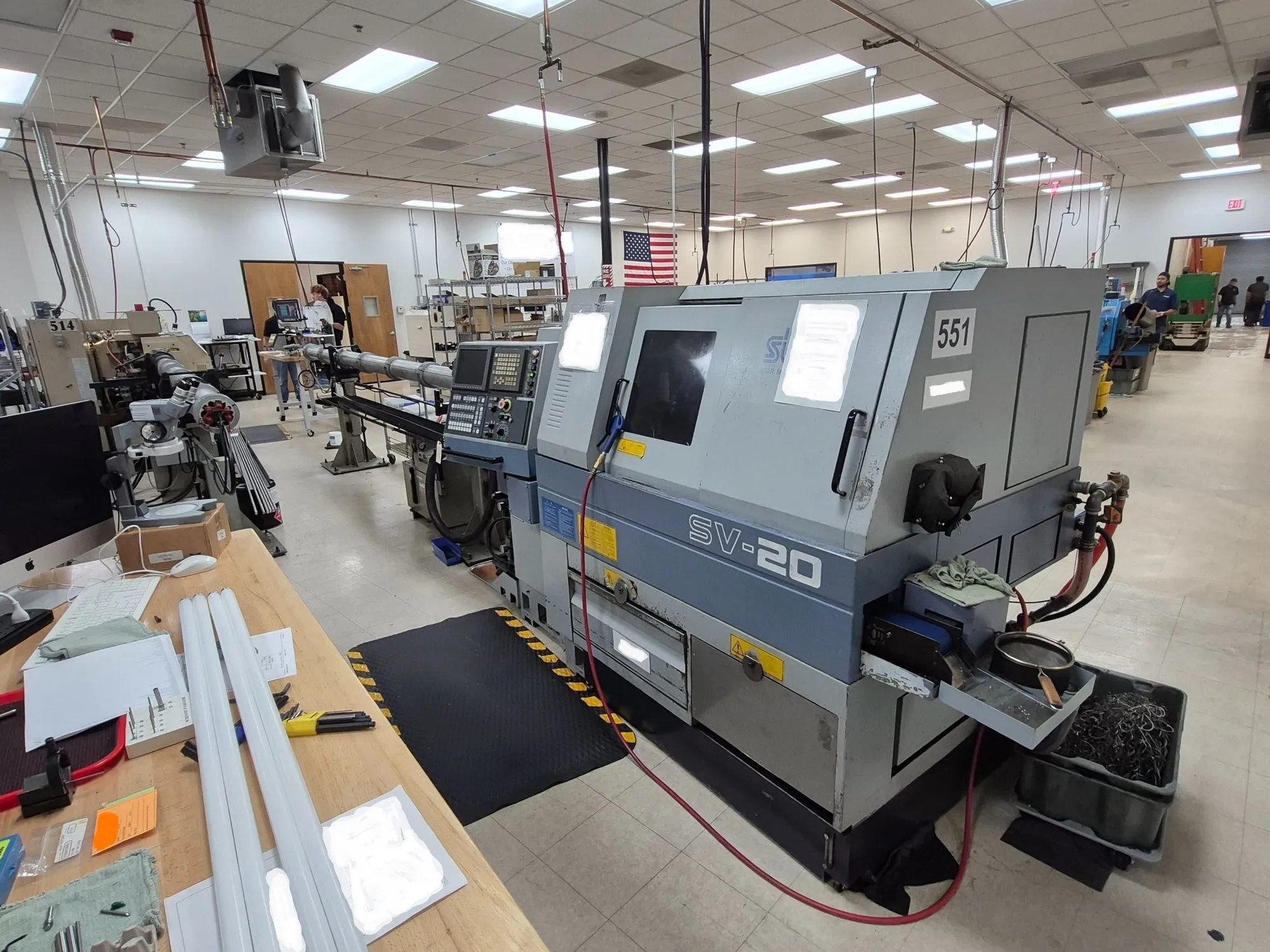

USED STAR SV-20

Star SV-20 Swiss Turning Center with LNS Super Hydrobar Barfeed, High Pressure Coolant.

Max. Turning Diameter.................20mm
Headstock Stroke......................205mm
with: Gripping unit...................195mm
Headstock Spindle Speeds..............10,000 RPM
Spindle indexing......................0.001 Deg.
Drilling Capacity:
Stationary Tool.......................14mm
Power driven Tool Gang Tool Post......8mm
Number of Tools.......................4
Power-Driven..........................3
Turret 8 Stations
Tool Shank............................16x135mm
Turret................................16x70mm
Tapping Capacity:
Turret................................M10 x P1.5
Power driven Tool Gang Tool Post......M6 x P1.0 Opt.
Milling Capacity......................25/64"
Max. Die Cutting Capacity.............M12 x P1.75
Main Spindle Motor....................5.5 kw (cont) 7.5 kw (30 min)
Tool Shank............................16 x 135mm
Turret................................16 x 70mm
Gang Tool Post power driventool:
Spindle Speed Max......................6,000 min opt motor 0.5 kw (servo Drive)
Power Consumption......................8.0 Kva
Backworking Attachment:
Max. Chucking Capacity.................20mm
Drilling Capacity......................10mm
Tapping Capacity.......................M8 x P1.25
Spindle Speeds.........................10,000 RPM
Sub-Spindle Motor......................2.2 kw (contin) 3.7 kw (15 min)
Machine Dimensions.....................128" x 52" x 70"
Total weight...........................10,000 lbs.

Fanuc CNC Control
LNS Super Hydrobar Barfeed
High Pressure Coolant

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
