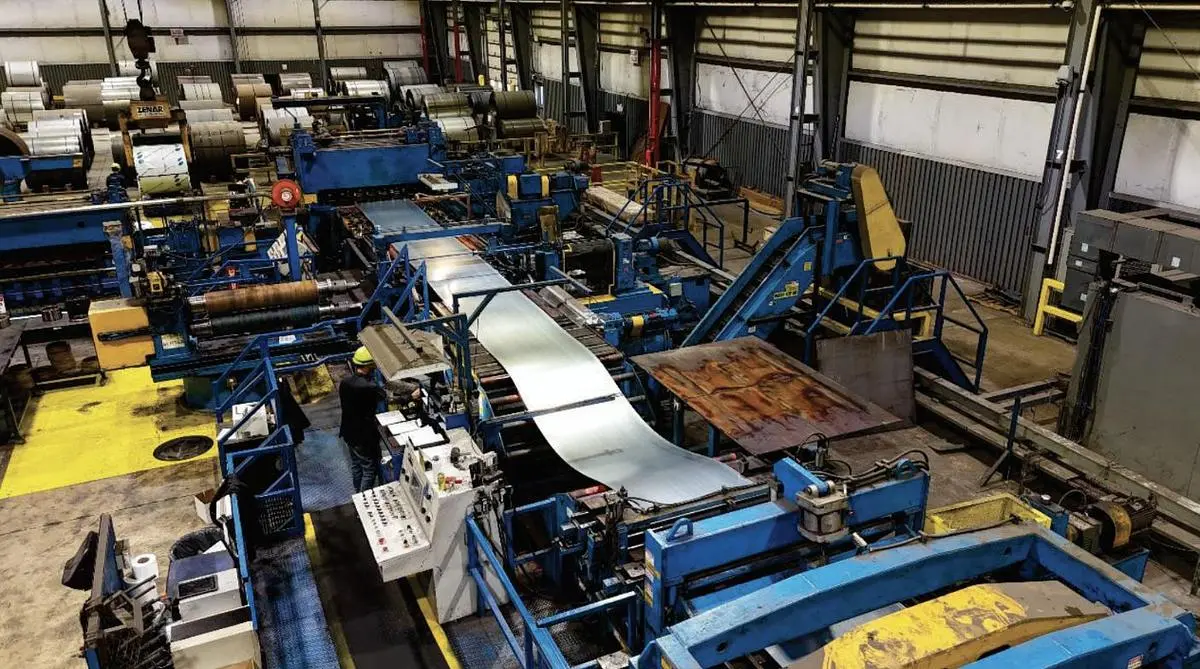

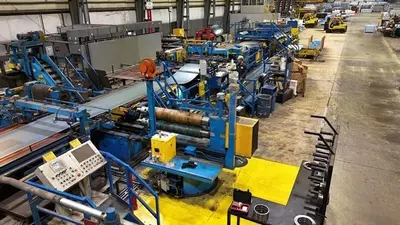

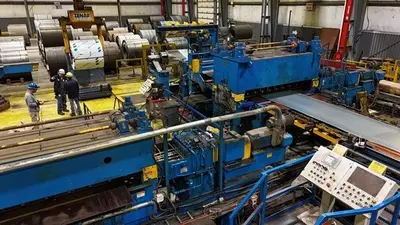

74” x .135” x 80,000 Lbs. SMS/Pro-Eco Multi-Blanking CTL

Specifications:
Manufacturer: SMS/Pro-Eco
Material: CR, Galvanized
Maximum Coil Width: 74”
Minimum Coil Width: 18”
Maximum Coil O.D.: 84”
Minimum Coil O.D.: 40”
Maximum Coil Weight: 80,000 Lbs.
Coil I.D.: 20” / 24”
Thickness Range: .010” – .135”
Maximum Shear Strength: 80,000 PSI @ .135” / 120,000 PSI @ .090”
Yield Strength Range: 30,000 – 120,000 PSI
Line Direction: Left To Right
Slitting / Processing:
Slitter Arbor Diameter: 9”
Slitter Knife Diameter: 11.5” – 13.5”
Cut Chart: 11 Cuts @ .1345” / 31 Cuts @ .010” @ 60,000 Shear Strength
Cut-To-Length:
Maximum Cut Length: 240”
Minimum Cut Length: 16”
Stack Weight Capacity: 1,000 – 20,000 Lbs.
Maximum Stack Height: 24” With Dunnage
Speed:
Line Speed: 200 FPM
Line Includes:
4 Arm Turnstile:
-Power Rotation
-C-Hook Slot 6" x 12"
-20" ID
Entry Coil Car:
-L-Type, above floor
-Self-contained Hydraulic Power Unit
-84" Max. OD
-28" Lift
Single Mandrel Uncoiler:
-Hydraulic Expansion
-20" - 24" ID
-84" O.D.
-Water Cooled Brake
-Sliding Base
-Holddown Roll
Automatic Center Guide Control Unit:
Peeler Table:
Pinch Rolls:
-Urethane Covered
-10" Diameter Upper Roll
-8" Diameter Bottom Roll
Mechanical Centering Guides:
Hydraulic Crop Shear:
-15 Second Cycle Time
Belt Conveyor for scrap:
Leveler: 5 HI
-17 Work Rolls
-2.50" Dia. x 100" Face Work Rolls
-Cassette Type
-300 HP Drive
Carryover Table:
Leveler: 5 HI
-19 Work Rolls
-1.50" Dia. x 102" Face Work Rolls
-Cassette Type
-20 HP Drive
Inspection Table:
Speed Reference Roll:
Mechanical Centering Guides:
Slitter Head:
-Full Head Arrangement with Automatic Tooling Setup
-9" Diameter Arbors
-Single Eccentric Arbor Adjustment
Scrap Choppers:
Scrap Discharge Conveyor:
Carryover Table:
-At Scrap Choppers
Loop Pit Equipment:
Squaring Guides:
Precision Feed Roll Unit:
-8" Diameter Rolls
-Urethane Covered
Reciprocating Flying Shear:
-250 HP Drive
-16" Minimum Cut Length
Reject Conveyor
Runout Conveyor
Reject Cart:
-86" - 16" Length
Automatic Air Stacker:
-End Discharge
-16" Min. - 240" Max. Length
Pallet Feed System
Scissor Lift Stacking Table:
-24" Max. Lift
-20,000 lb. Weight
Storage Conveyor:
-20,000 lb. Weight Capacity
-240" Long
Water Cooling Unit:
