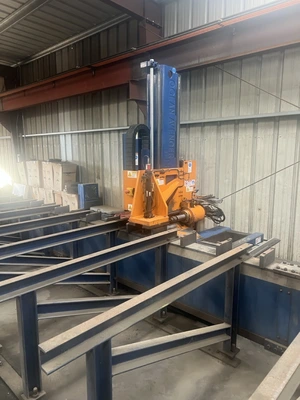

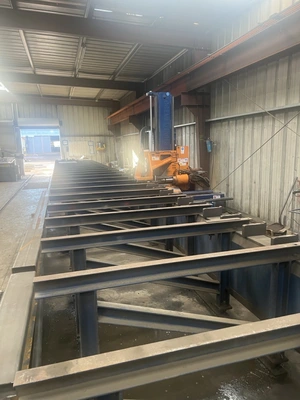

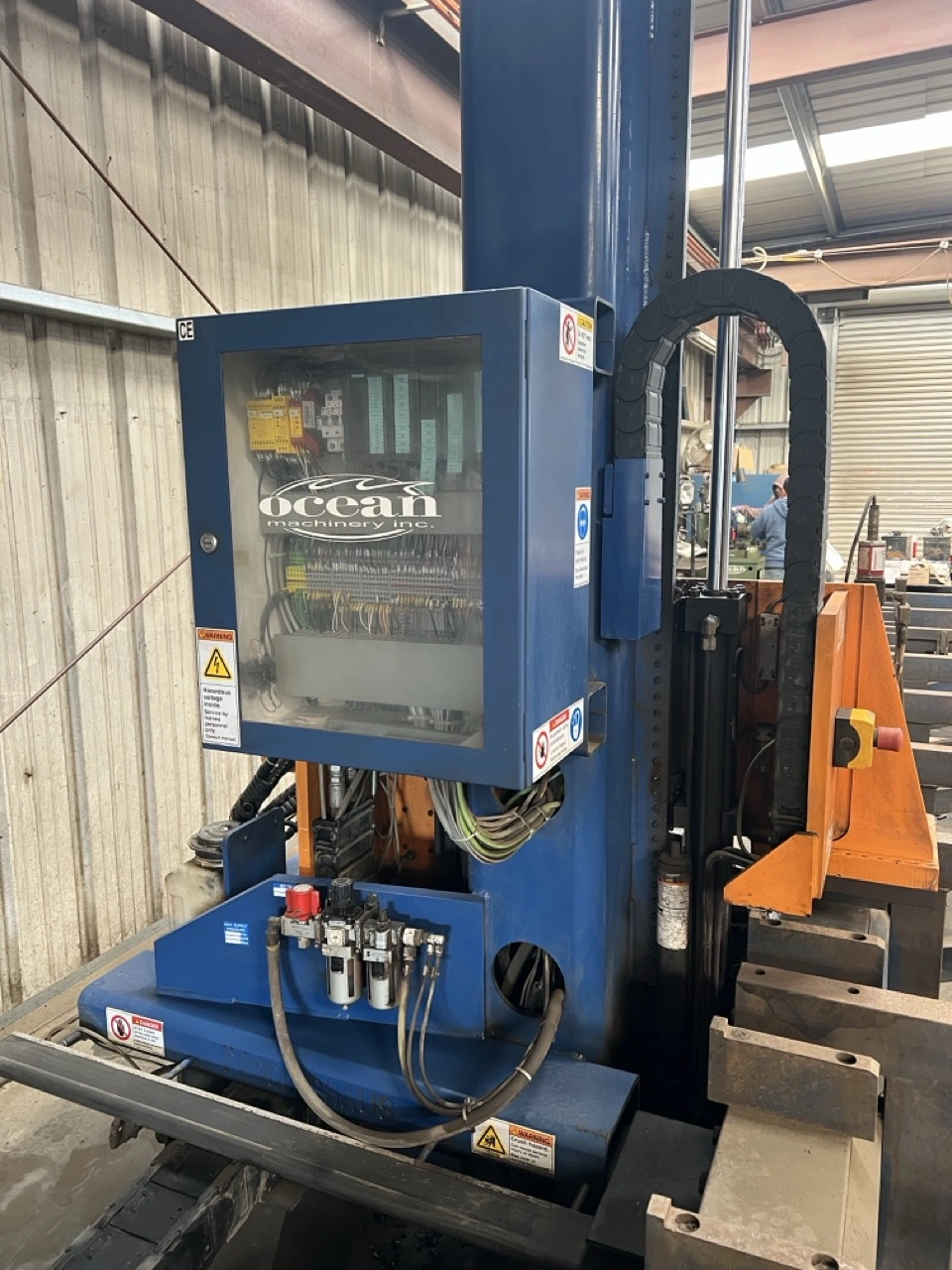

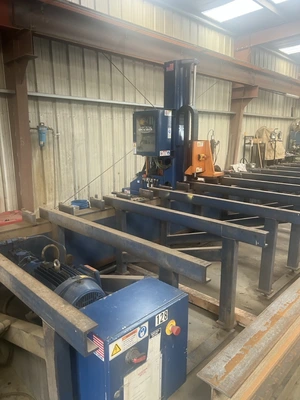

USED 2008 PEDDINGHAUS MDL 1000

Max. Drill Diameter: 1-9/16”
Max Profile Height: 39″
Max Beam Length: 480”
Max Speed (X-Axis):1417 IPM
Max Speed (Y-Axis):1417 IPM
Maximum Thickness: 6″
Spindle Speeds: 200 – 850 RPM
Spindle Motor Power: 13.5 HP
Drilling Feed Rate: 2 – 10 IPM
Drill Spindle Rapid:192 IPM
Maximum Spindle Stroke:13″
Equipped With:

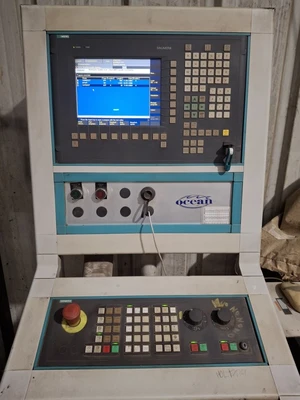

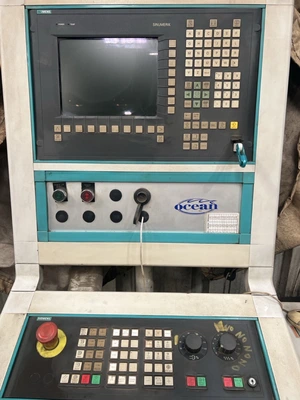

Siemens CNC Control

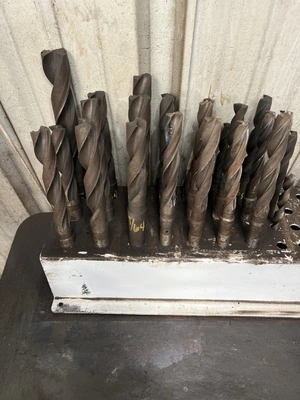

Available Tooling
