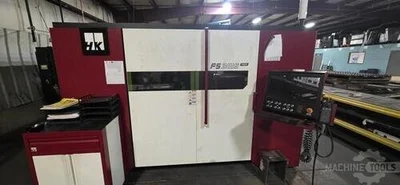

USED HK LASER FS3015F

The FS3015 2.5kw -20 kW offers the ultimate value without compromise when it comes to your laser cutting needs. It features a compact design with a front door. A helical rack & pinion drive system is used with synchronized dual servo motors at the gantry. The CNC and fiber laser resonator are built in to the unit itself.

Sheet-W: 60″
Sheet-L: 120″
Weight: 34,000
Items Specifications Remarks Model FS3015F FALCON Laser power 2.5kw fiber Max cutting size 60” x 120” Positioning Speed 4200 IPM +/-0.0039” Repeatability 0.001” Monitor 19” Flat Touch Screen Cutting Head Auto focus control Head Sensing Focal Length 5.90” (150mm FL) Assist gas port Two(2) – Oxygen, HP Nitrogen Machine weight Electric Consumption 38KW Positioning Accuracy Non-contact capacitive sensing X and Y axis combined Over 120” travel Including dust collector

HK CNC 4.0kW IPG-YLS Resonator Auto Focus Cutting Head
