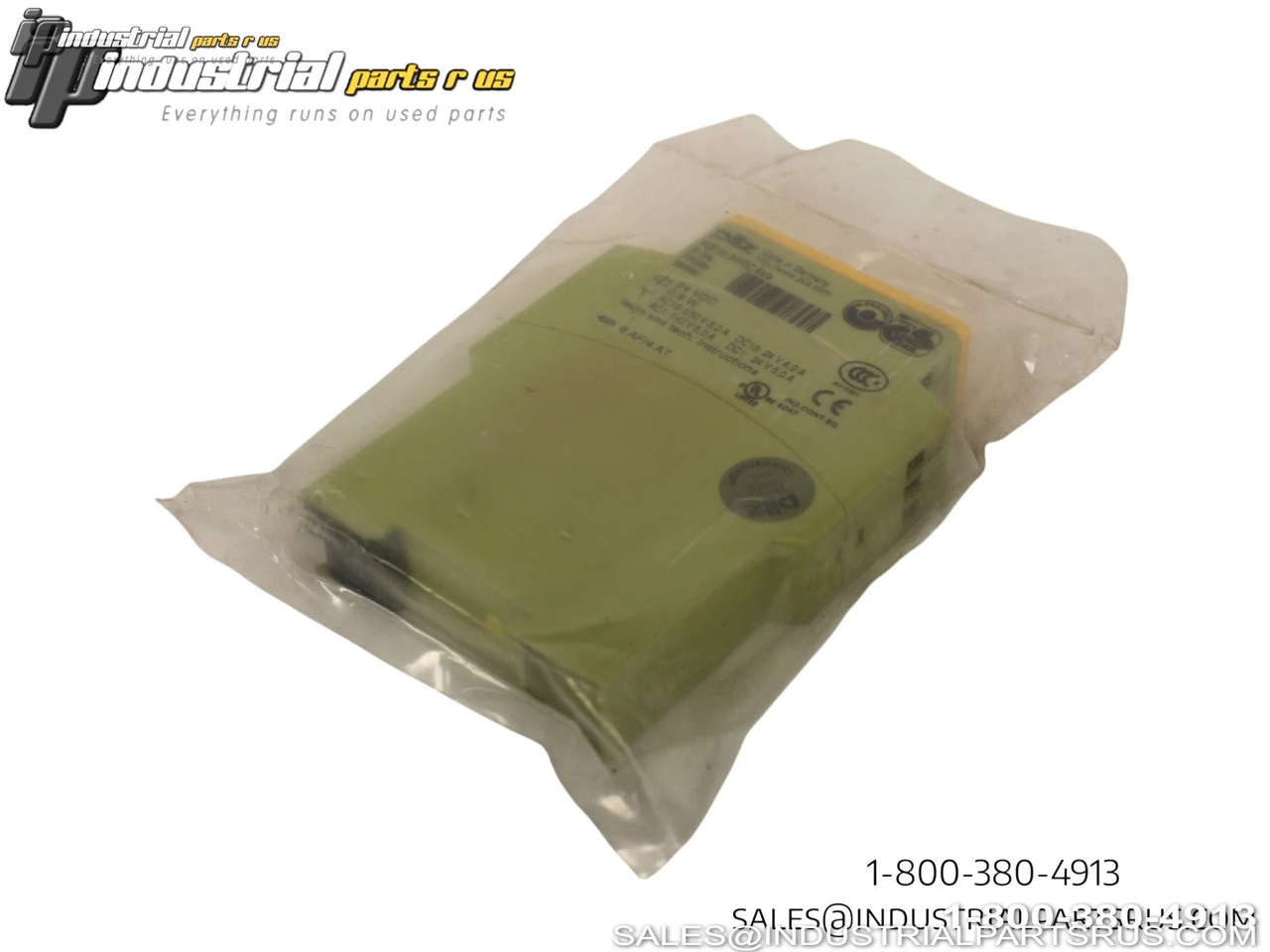

NEW PILZ PZE X4 24VDC 4N/O
Overview
Description
The Pilz PZE X4 is a contact expansion module designed to increase the number of available safety contacts in safety-related control circuits. This instantaneous safety relay features positive-guided relay outputs with 4 normally open safety contacts and operates on 24VDC power supply. It connects to base units like emergency stop relays to expand existing safety circuits while maintaining the safety function integrity.
Specification
Value
Brand
Pilz
Model/Part Number
PZE X4 24VDC 4n/o
Manufacturer Part Number
774585
Series
PNOZ X
Product Family
PZE X4
Operating Voltage
24VDC
Power Consumption
2.5W
Contact Configuration
4 N/O (Normally Open)
Contact Rating
5A
Contact Type
Positive-guided safety contacts
Operation
Single-channel wiring
Response Time
Instantaneous
Width
25mm
Terminal Type
Screw terminals integrated
Mounting
DIN rail mount
LED Indicator
Yes, for switch status
Feedback Loop
Connection included
GTIN
4046548010770
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI0255
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Germany
GTIN: 679523686161
Mounting Style: DIN rail mount
Current Rating: 5A
Application: Contact expansion for safety circuits
Manufacturer: Pilz
Part Number: PZE X4 24VDC 4N/O
Shelf: K-5
Model: PZE X4 24VDC 4N/O
Coil Voltage: 24VDC
MPN: PZE X4 24VDC 4N/O
Type: Safety Relay
