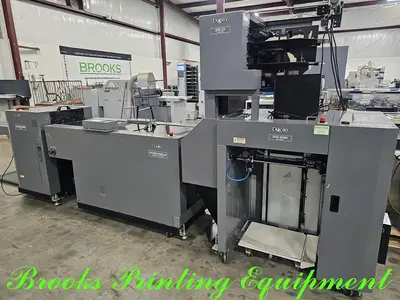

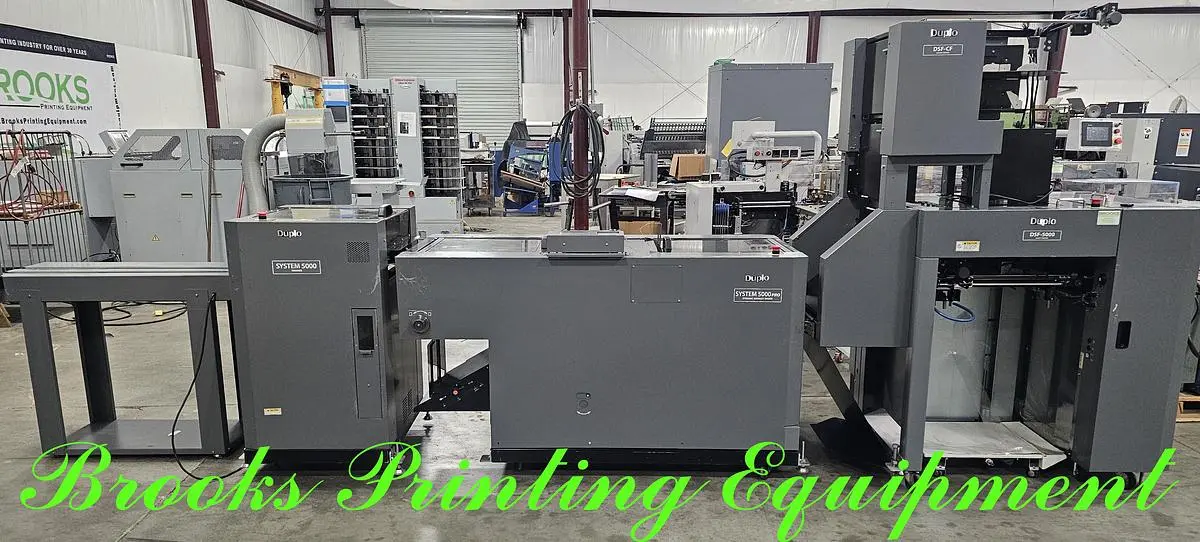

USED 2014 DUPLO DSF-500

Duplo DSF-5000 Pro, 2014
Serial #140400075
Count: 0807156

Feeding System: Belt suction feed system using a fan and pump; Elevator feeder system
Maximum Paper Loading Capacity: 24.02” maximum stack height
Paper Size: Max.: length: 20.5" Min.: length: 8.5"; Max. Width:14.25” Min. Width: 4.75"
Paper Type: Art/coated paper, laminated paper: 84.9 to 300 gsm, fi ne paper: 64 to 300 gsm
Buffer Capacity: 10 sheets depending on paper type
Processing Speed: Maximum 400 sheets per minute (A4 SEF) at transportation speed of 2,800 mm per second
Processing Speed Exceptions: Exception when using end mark and barcode detection function; When continuously feeding without intervals between sets; Varies upon paper type
Conveyance Speed: Paper type which can be conveyed at 2,800 mm per second: fi ne quality paper above 80 gsm coated paper above 100 gsm
Control Panel: Liquid crystal display unit with a jog dial (attached to the main unit), controls are through PC
Additional Functions: Hand feed (sheet and set); end mark detection (CCD sensor); anti-static bar (SIMCO)
Dimensions: 54” W x 46” D x 32” H main unit only; 60” W x 46” D x 32” H with ejection guide and IF/Box
Power Source: AC 100 - 240V, 50/60Hz
Power Consumption: 3 - 1.5A 300W
Power Source (I/F Box): AC 100 - 240V, 50/60H
Unique id: 20250207DNC140400075
