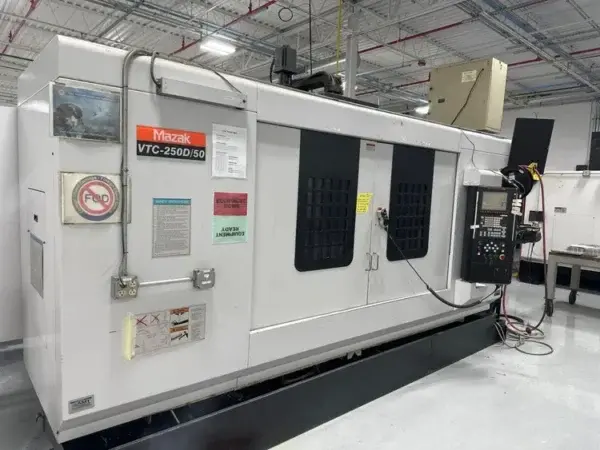

Mazak VTC-250/50D with Rotary Table – 2008

MAZAK VTC250D/50 CNC Mill

Specifications (subject to buyer verification):

Controlled axis: 4

X-Axis travel: 69.3”

Y-Axis travel: 25”

Z-Axis travel: 25.6”

Min/Max distance spindle nose to table: 7.1” – 32.2”

Table size: 82.7” x 25”

Maximum weight on table: 2,778 lbs

Spindle taper: CAT-50

Spindle speeds: 6,000 RPM (2-range)

Spindle motor: 30 HP

ATC capacity: 24

Maximum tool diameter x length: 4.3” x 13.7”

Maximum tool weight: 17.8 lbs

Electrical requirements: 480 Volt; 60A; 50 kVA

Machine dimensions: 171″ x 134″ x 105″

Machine weight: 24,000 lbs

– Mazatrol 640 MN CNC Control

Misc toolholders

– High pressure coolant thru spindle

Mazak Superflow T8 1000 psi pump

Mist Buster mist collector

– Mayfran Chip Conveyor

– Coolant Tank with filtration

Rotary Table
