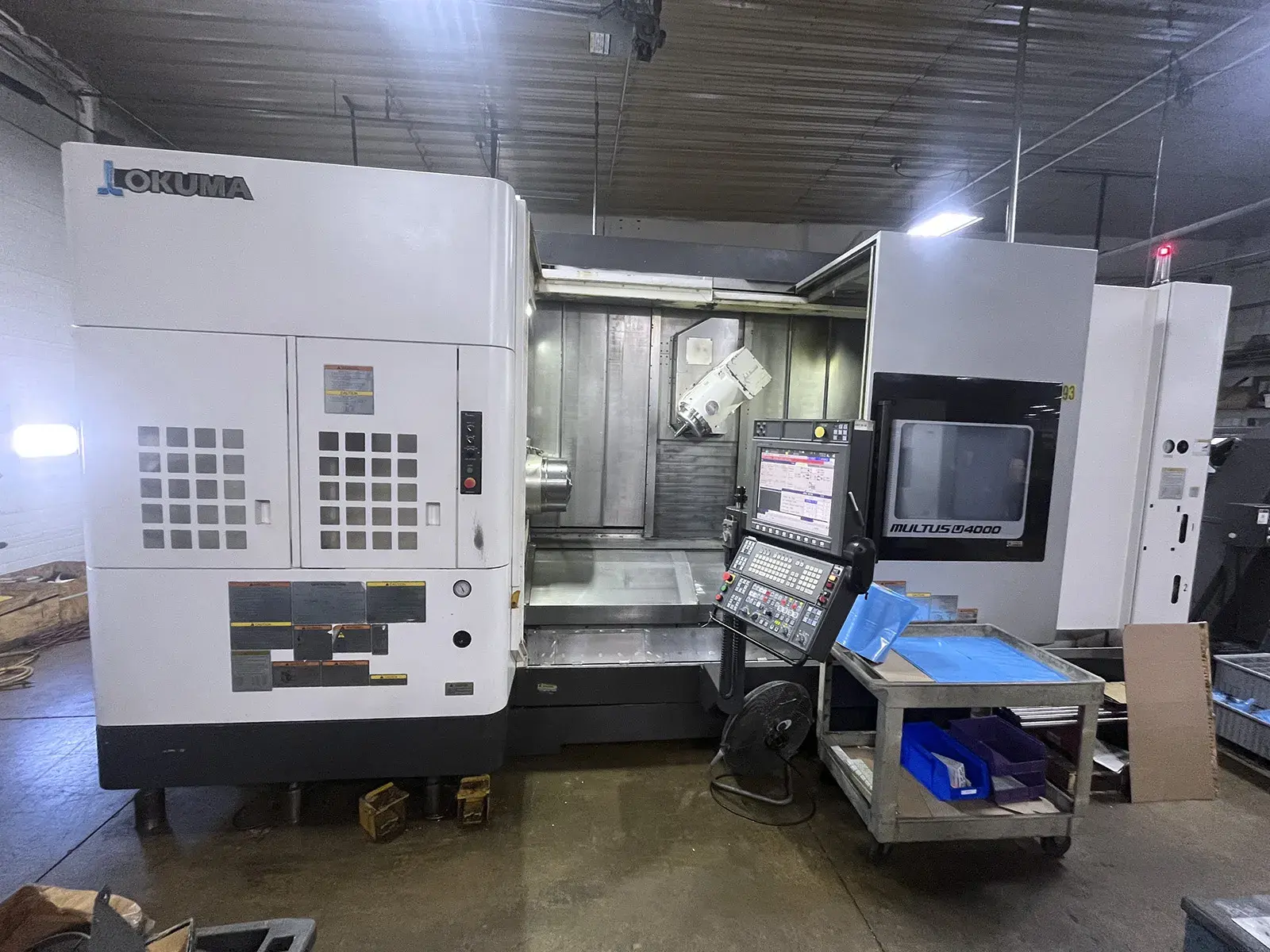

Used 5+ axis CNC lathe, features an A2-11 spindle nose, 3,000 RPM speed, and 25.6″ max turning diameter. Equipped with Okuma OSP-P300S control, 80-tool ATC, box-way design, Renishaw probing, and more.
| # Axis | 5 | 5 |
| Bar Capacity | 4.41" | 112.01 mm |
| Power | 43 hp | 32.1 kW |
| Max RPM | 3,000 RPM | 3,000 RPM |
| Turning Dia | 25.6" | 650.24 mm |
| Control | CNC (OKUMA) | CNC (OKUMA) |
Main Spindle
Spindle Nose: A2-11
Maximum Speed:3,000 RPM
Spindle Power:22 HP (Continuous) / 43 HP (30-Minute)
Spindle Bore (Big Bore):4.41″
Sub-Spindle:A2-8
Maximum Turning Diameter:25.6″
Maximum Turning Length:78.7″
B-Axis Milling Head
B-Axis Range:-30° To +210°
Milling Spindle Speed:12,000 RPM
Axis Configuration:8-Axis / Simultaneous 5-Axis Machining
AUTOMATIC TOOL CHANGER:80 Tools – Capto C6
Machine Construction
Heavy-Duty Box-Way Design For High-Torque Cutting
Control:Okuma OSP-P300S
Big Bore A2-11 Main Spindle
5-Axis Machining Package
NC B-Axis Contouring
C-Axis Synchronization
Lower Turret Milling Function
Negative Tool Radius Compensation
Lathe Tool Indexing – Multi-Edge
Z-Axis Auto Zero Offset
C-Axis Auto Zero Offset
Hydraulic Oil Temperature Regulator
Rapid Traverse Override Switch
80-Station ATC – Capto C6 (With Barfeeder Cover)
Renishaw RMP60 Automatic Part Probing
Touchsetter
Used Tool List Display
