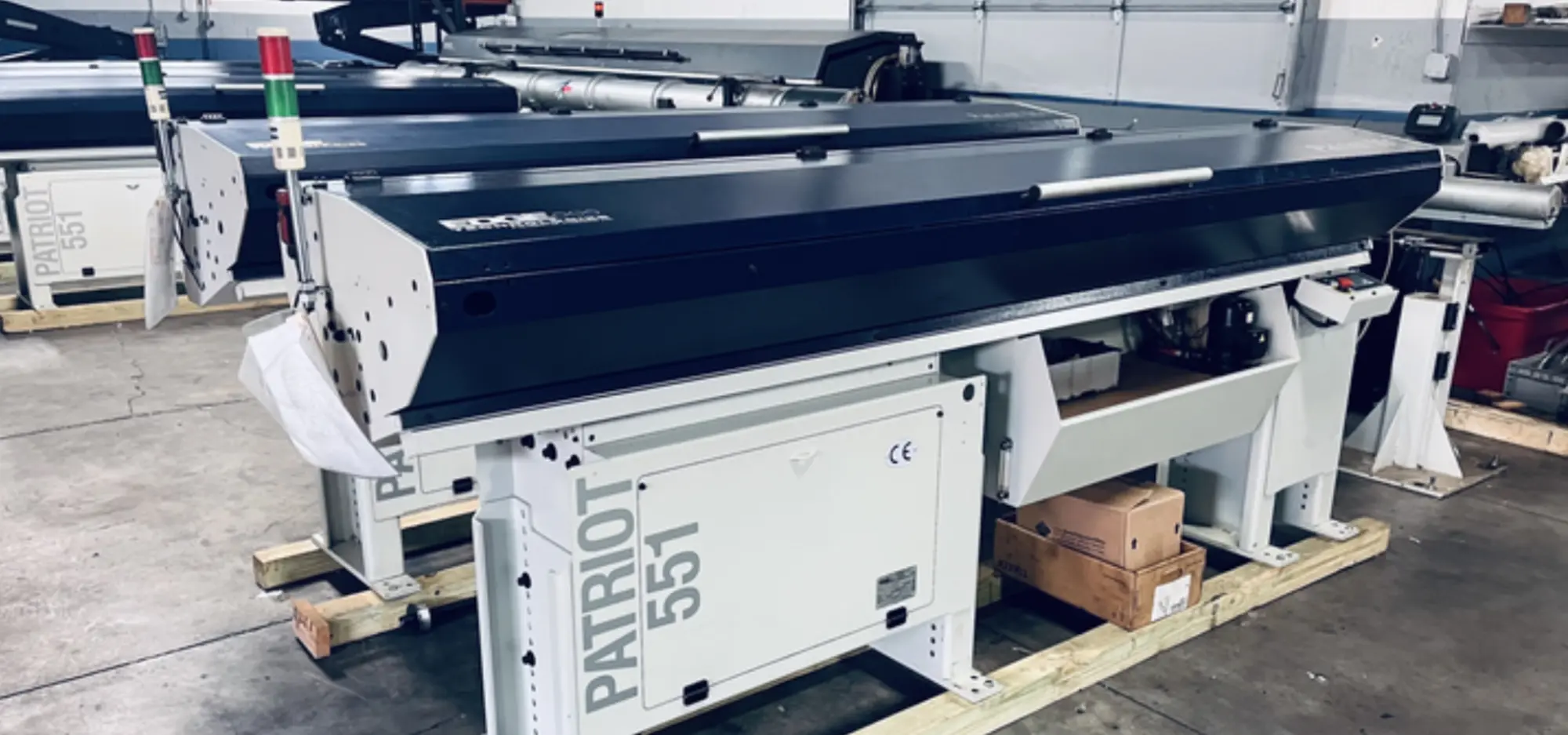

USED 2011 EDGE TECHNOLOGIES PATRIOT 551
Overview
Description
Used Magazine type bar loader, used condition. Features a bar capacity of 2" and length up to 8'.
Specifications
| Capacity | 2" | 50.8 mm |
|---|---|---|
| Bar Length | 8' | 2.4 m |
| Dimensions | 133" x 28" x 49" | 133" x 28" x 49" |
| Weight | 2,100 lbs | 2,100 lbs |
Bar Capacity
No Prep: 5mm to 44.5mm (.196" to 1.75")
With Prep: 5mm to 51 mm (.196" to 2.000")
Maximum Bar Length: 8'
Minimum Bar Length: 39.4"
Maximum Remnant Length: 16"
Magazine Rack Capacity: 12"
Bar Loading Cycle: 30 seconds for 12' bar
Material Straightness Specifications: .007"TIR/ft of material
(V Blocks, 3 points equidistant)
Feed Force (pusher torque): max 450N, adjustable
Foward Feed Rate: 750 inches/min max, adjustable
Return Feed Rate: 1000 inches/min max, adjustable
Power Consumption: 1.5kW
Operating Voltage: 230V/60 Hz - 3 phase
Control Voltage: 24V DC
Oil Capacity: 57 liters (15 gallons)
Oil Viscosity: ISO 150cST
Compressed Air Supply: 6 bar (90 psi)
Compressed Air Consumption: approx. 8 liters/loading cycle
