USED 2004 Mazak Integrex

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Y-Axis Travel: 25.6"

B-Axis Head Tilt: -30° to +210°

C-Axis Index: 0.001°

Coolant Through Milling Head

CAT#50

Bar Capacity: 6.0
B Axis: false
C Axis: true
Chuck Size: 24.0

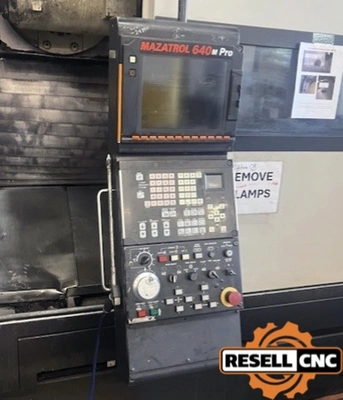

Control Make Model: Mazatrol 640M CNC Control
Distance Between Centers: 80.0
High Pressure Coolant Psi: 1000.0
Live Milling Hp: 50
Live Milling Max Rpm: 5000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Max Cutting Turning Diameter: 32.0
Max Swing Over Bed: 36.2
Max Turning Cutting Length: 80.0
Probe Make Model: Renishaw Probe
Programmable Tailstock: false
Second Spindle Motor: 60
Second Spindle Nose: A2-15
Second Spindle Speed: 1000
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 60
Spindle Nose: A2-15
Spindle Speed: 1000.0
Sub Spindle: false
Tailstock: false
Tool Positions: 40.0
Twin Turret: false
X Travel: 40.35
Y Axis: true
Z Travel: 118.0
