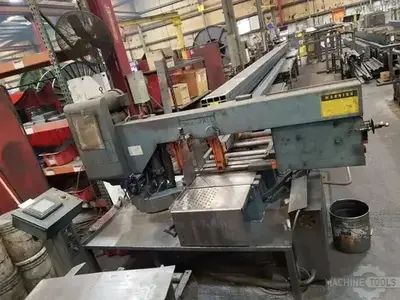

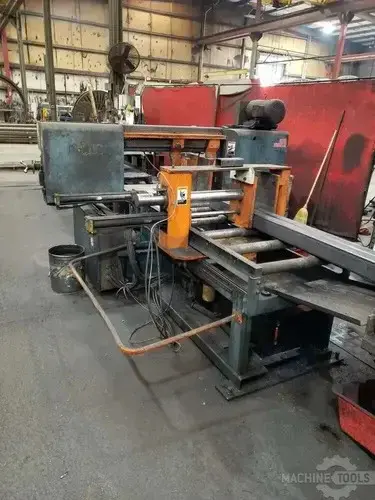

Horizontal Band Saw
| Rect-Cap (H) | 14" | 355.6 mm |
| Rect-Cap (W) | 20" | 508 mm |
| Rounds-Cap | 14.75" | 374.65 mm |
| Power | 5 hp | 3.7 kW |
| Blade Width | 1.25" | 31.75 mm |
| Blade Thickness | 0.042" | 1.0668 mm |
| Blade Length | 197" | 5,003.8 mm |
Request a Quote
Add to Cart
Capacity at 90 Degrees: 14" x 20" / Rounds 14"
Capacity at 45 Degrees: 14" x 14" / Rounds 14"
Capacity at 60 Degrees: 14" x 8" Rounds 10"
Recommended Blade: 1-1/4" x .042"
Max. Blade Length: 197"
Band Speed: 50-400 FPM
Band Drive Motor: 5 HP
Hydraulic System Capacity: 12 Gal.
Hydraulic Motor: 20 HP
Approximate Dimensions: 8' x 8'
Machine Weight: 3000 Lbs
Equipped with Band Tension Spring Loaded by Handwheel: Feed Control Adjustable Feed Rate and Feed
Head Counter Balanced: Vise Hydraulic Full Height and Stroke
Wheels 20" Diameter Cast Iron: Flood Coolant System
