| Table-W | 6" | 152.4 mm |
| Table-L | 12" | 304.8 mm |
| Horz/Vert | Horz | Horz |
| Power | 2 hp | 1.5 kW |
| Grinding Wheel Width | 1" | 25.4 mm |
| Grinding Wheel Dia. | 8" | 203.2 mm |
| Dimensions | 58 x 46 x 71 | 58 x 46 x 71 |
| Weight | 1650 - 1850 lbs | 1650 - 1850 lbs |

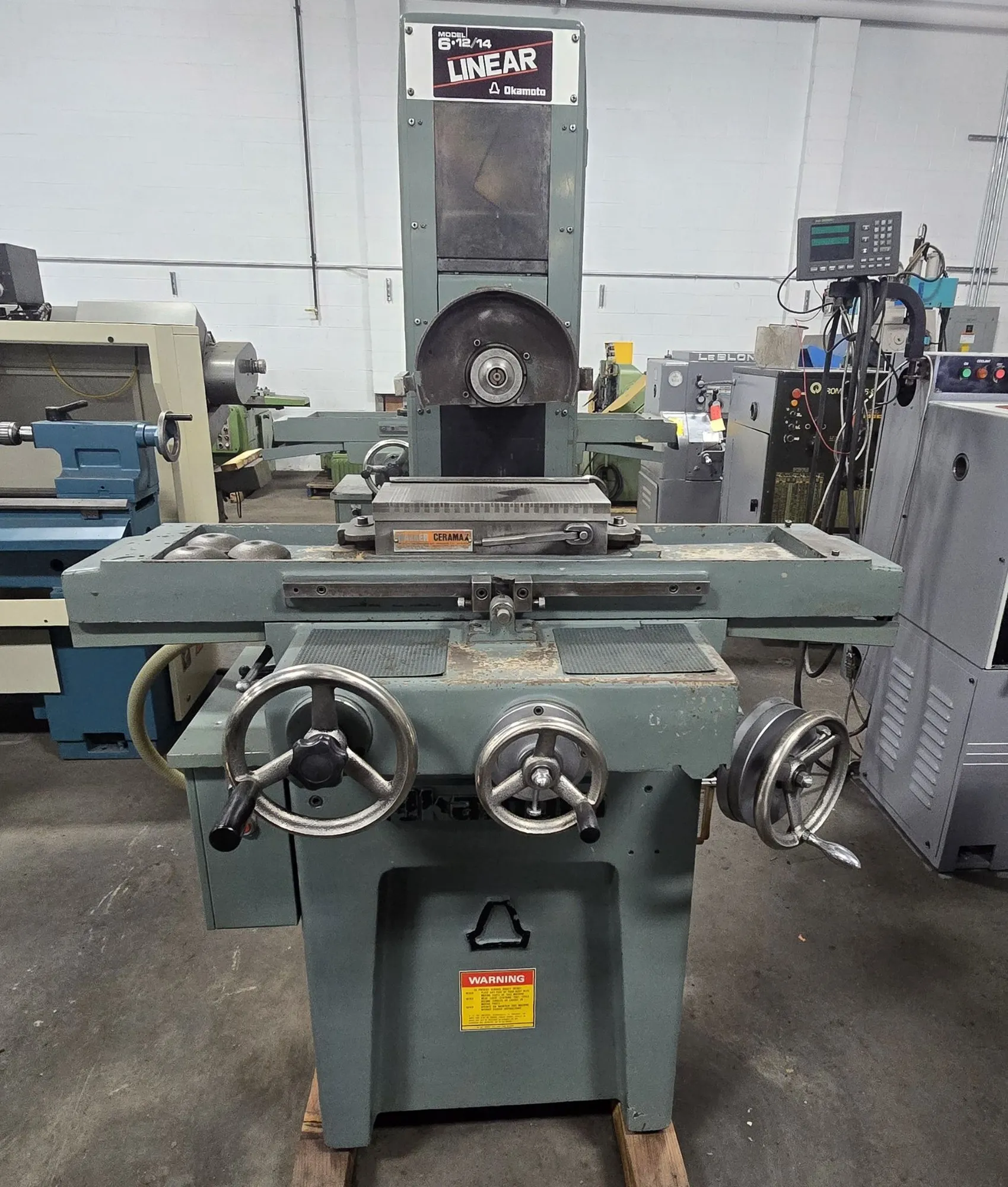

The Okamoto Linear 612/14 is a manual high-precision 6" x 12" (152.4 mm x 304.8 mm) surface grinder with a 14" longitudinal and 8" cross-travel capacity.
It features a 2 HP spindle motor, linear ball bearing ways for smooth movement, and a 8" x 1" x 1-1/4" grinding wheel, offering high accuracy for toolroom applications.
Key Specifications:
Table Size (Working Capacity): 6" x 12"
Maximum Table Travel (Longitudinal x Cross): 14" x 8"
Max Distance (Table to Spindle Center): 18"
Max Work Height (under 8" wheel): 11"
Spindle Motor: 2 HP
Wheel Size: 8" Diameter x 1" Width x 1-1/4" Bore
Vertical Feed (Per Rev/Graduation): 0.050" / 0.0002"
Cross Feed (Per Rev/Graduation): 0.100" / 0.001"
Approx. Weight: 1,650 - 1,850 lbs
Way Type: Linear ball bearings (for longitudinal movement)
Features & Capabilities:
High Precision: Designed for fine-finish grinding.
Control: Manual hand-feed for both table and saddle movement.
Magnetic Chuck: Typically equipped with a 6" x 12" permanent magnetic chuck.
Spindle Speed: Typically 3450 RPM.
Dimensions: Approximately 58" x 46" x 71" H.
