| size | 4.3" | 4.3" |
| Spindle Size | 4.3" | 109.22 mm |
| X-Horiz Tvl of Table | 78.7" | 1,999 mm |
| Y-Vert Tvl of Head | 59" | 1,498.6 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| Table-W | 65" | 1,651 mm |
| Table-L | 55" | 1,397 mm |
| Spindle Tvl. | 19.7" | 500.38 mm |
| Control | CNC (Tosnuc 888) | CNC (Tosnuc 888) |
| Dimensions | 201 x 236 x 156h | 201 x 236 x 156h |
| Weight | 61400 | 61400 |

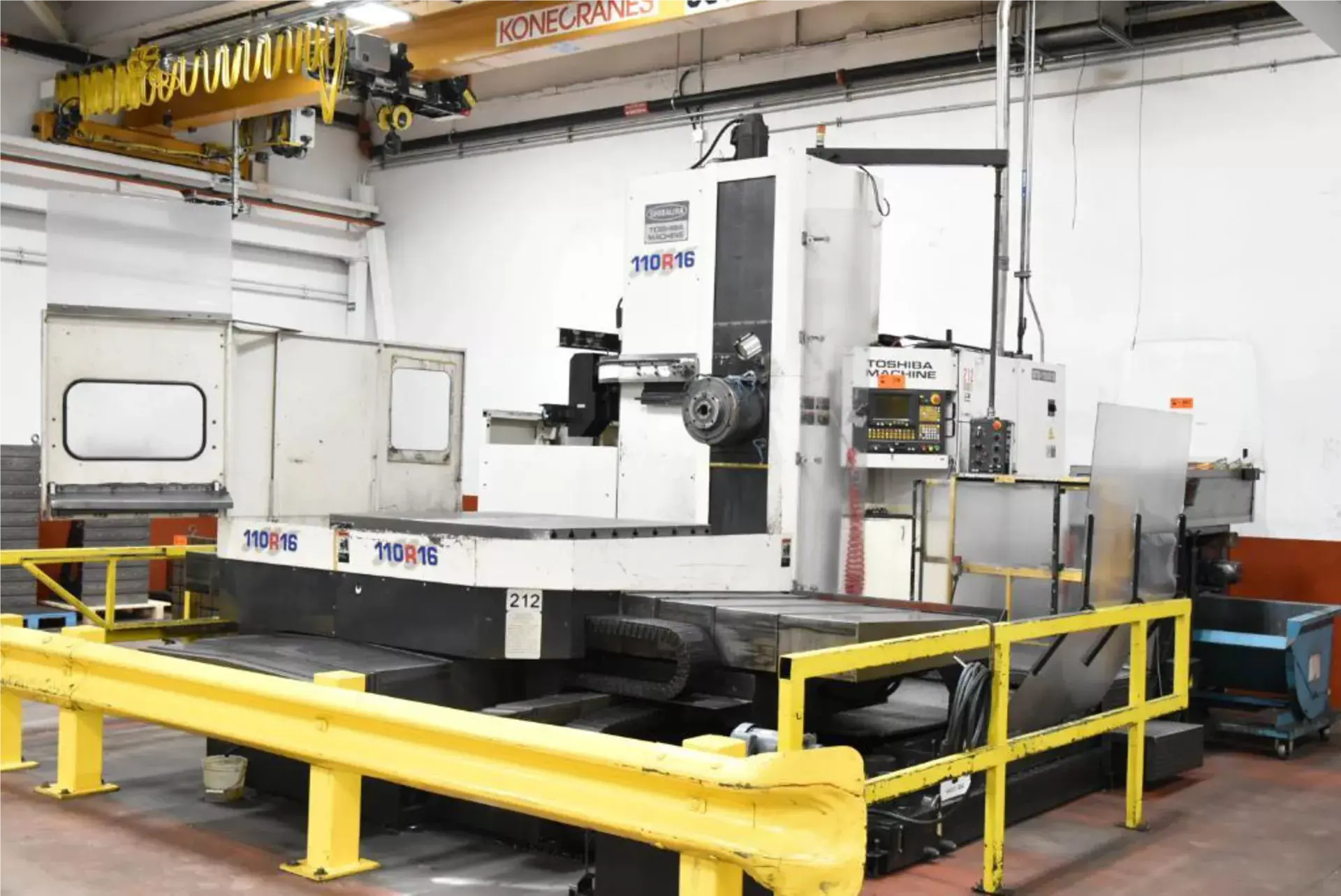

Toshiba BTD-110 R16 4.33 Table Type Horizontal Boring Mill (2000)
4.33 Spindle
Table 63''x55'' Rotary .0001 degree
X Travel 78''
Y Travel 59''
Z Travel 78''
W Travel 15.7''
Cat 50 taper tooling
Spindle RPM 3000
50 HP motor
38 station tool changer
13,860 lbs table load capacity
Dimensions 201x236x156h 61,400 LBS
Tosnuc Control 888
Full Pendant Control
38 position tool changer
Coolant system
Chip conveyor
Manuals
