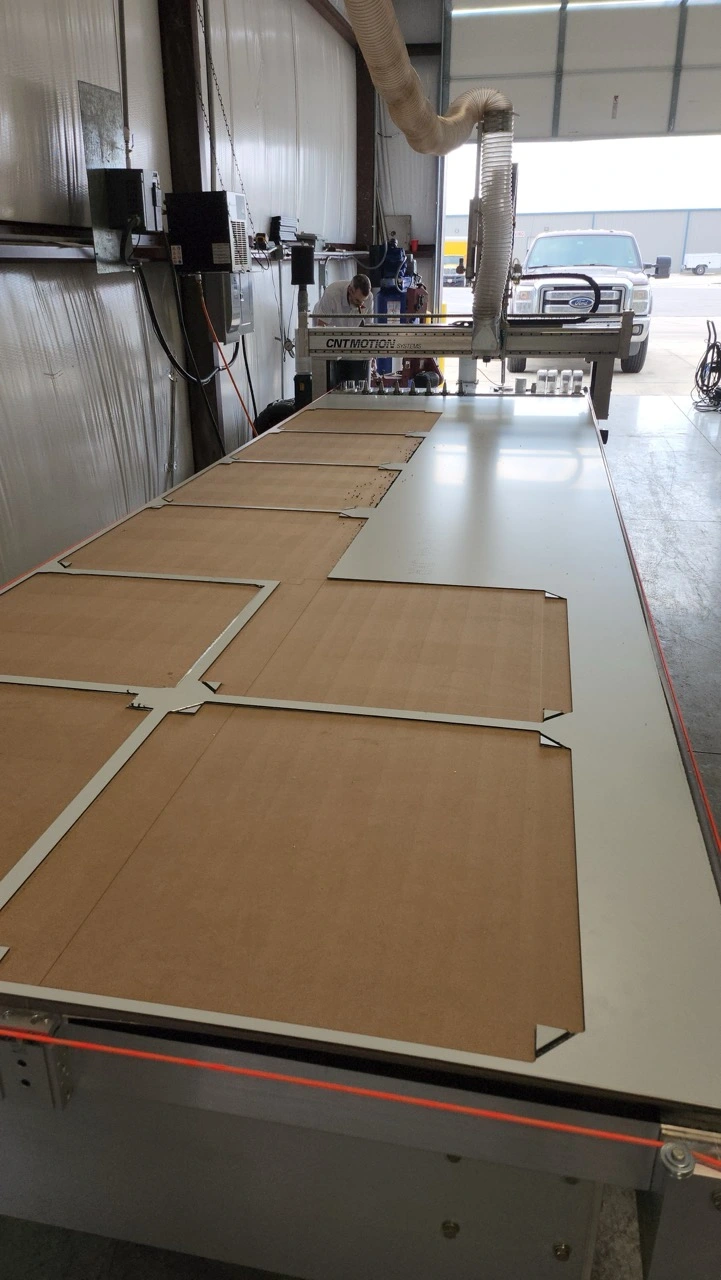

USED 2022 CNT MOTION SYSTEMS 950 SERIES

Cutting Area: 62″ x 196″
Table Footprint: 81″ x 223″
X Axis: 62″
Y Axis: 196″
Z Axis Travel: 8″
Rapid Traverse (X & Y): 1500 IPM
Rapid Traverse (Z): 550 IPM
Repeatability: 0.001″
Positioning Accuracy: ±0.002″
Drive System: Mitsubishi servo (X & Y: Helical Rack-and-Pinion, X & Z: Hiwin Ball Screw)

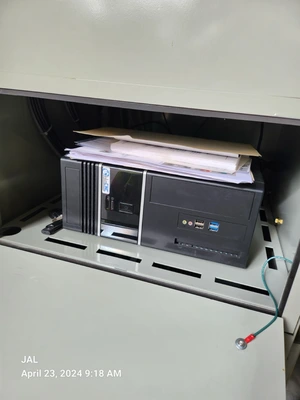

Controller: Windows PC CNC Controller

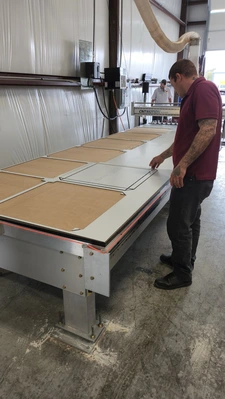

Vacuum Hold-Down: 13.2″ Hg, 380 CFM, 62″ x 196″ x 1/2″ aluminum grid
Vacuum Blower: Two-stage 25-HP regenerative

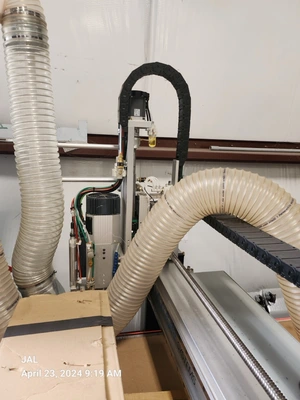

Router Spindle: 12 HP HSD ISO30 4-pole 230 V long-nose tool changer, 24,000 RPM (advanced dust collection)

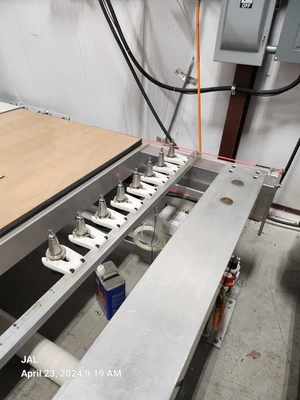

Tool Storage: 12-position fixed tool bar with eight ISO30 holders
Software: EnRoute24 Plus CAD/CAM with Nesting
Control Cabinet: NEMA 12
Weight: ~3500 lbs
Equipped With

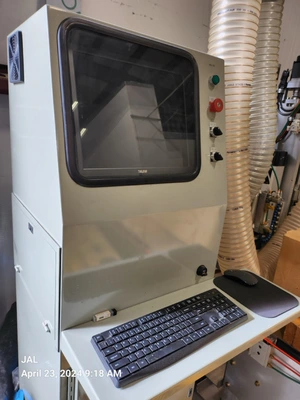

Windows CNC Controller
12 HP HSD ISO30 Router Spindle

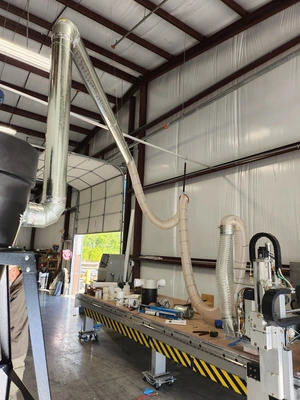

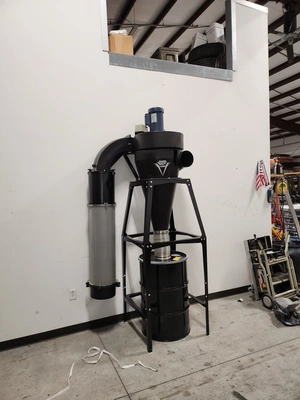

Advanced Dust Collection
Vacuum Hold-Down System
Tool Bar With ISO30 Tool Holders
EnRoute24 Plus CAD/CAM Software
NEMA 12 Control Cabinet
All Available Manuals
