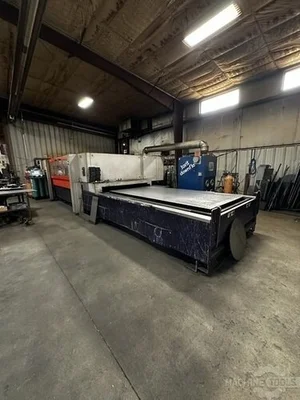

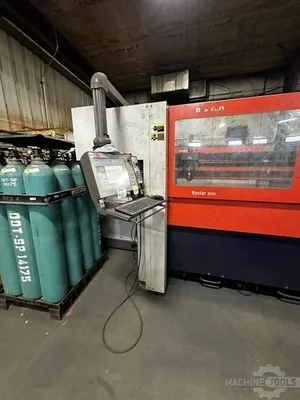

USED BYSTRONIC BYSTAR 4400

Brand – BYSTRONIC Model – BYSTAR 4400 Year – 2007 Type – Laser Cutters

Specification Value Nominal table size 3000 mm × 1500 mm (≈120″ × 60″) X-Axis travel 3048 mm (120″) Y-Axis travel 1524 mm (60″) Z-Axis travel ~100–170 mm (3.9″–6.7″, depends on configuration) Max sheet size 3000 × 1500 mm Max workpiece weight ~890 kg (≈1,960 lbs) Material Typical Max Thickness Mild/Structural Steel ~20–25 mm (~0.75″–1.0″) Stainless Steel ~12–20 mm (~0.47″–0.75″) Aluminum ~8–12 mm (~0.31″–0.47″) Copper* ~3 mm (~0.12″) (varie Feature Typical Value Positioning Accuracy (Pa) ±0.004″ (±0.10 mm) Repeatability (Ps) ±0.002″ (±0.05 mm) Edge detection accuracy ±0.020″ (~±0.5 mm) Max positioning speed (X/Y) ~50–80 m/min (some listings state 4,700 ipm) Axis acceleration ~177 in/s² (≈4.5 m/s²) (depending on option set) Control & Operator Interface CNC Control: Bystronic ByVision series (P8004B / CNC Windows-based depending on year) Operator Panel: Typically 15″ touchscreen + keyboard + manual control unit Data Ports: RJ45 10/100 Mbit/s networking

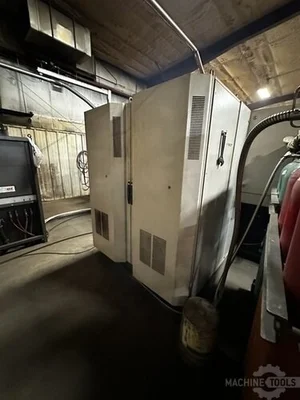

Standard Equipment / Accessories Automatic shuttle table(s) (dual pallet) Dust collector (Donaldson / Torit style) Chiller (EF Cooling WKL series) Cut-control system (software for cutting power & speed optimization) Multiple cutting heads (e.g., 5″ & 7.5″ lenses) on many configurations Height sensing & auto focus systems
