USED 2011 MIYANO DNA-42 DHY

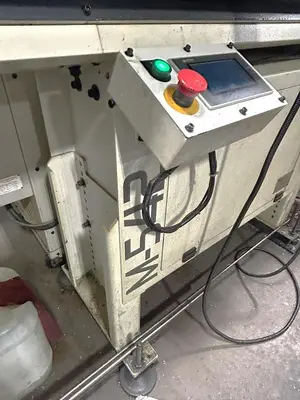

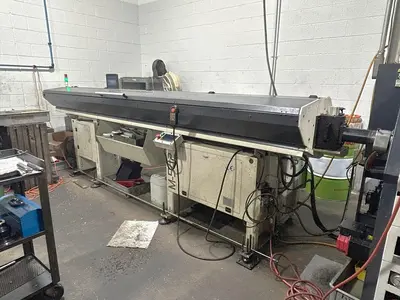

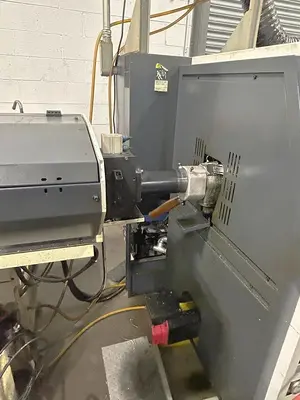

Miyano M-542 (Edge Patriot 338) Magazine Bar Feed

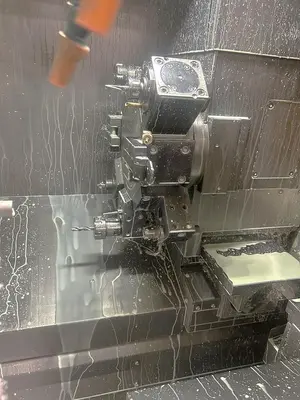

Live Milling/Drilling Capability
Subspindle

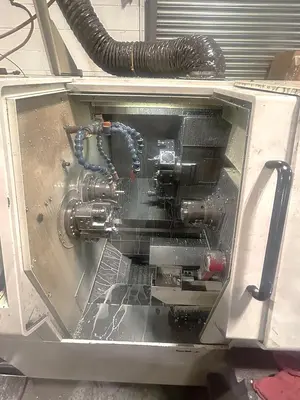

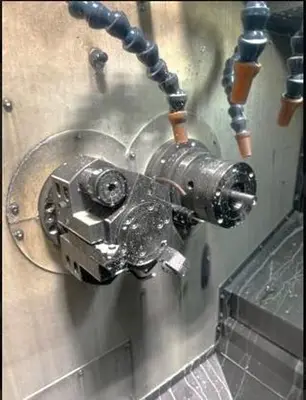

Dual Front/Rear Turret Design
C Axis Spindle Rotation Both Spindles
Y Axis Capability on Rear Turret
Hainbuch Collet Chuck on Main Spindle
Hainbuch Collet Chuck on Subspindle

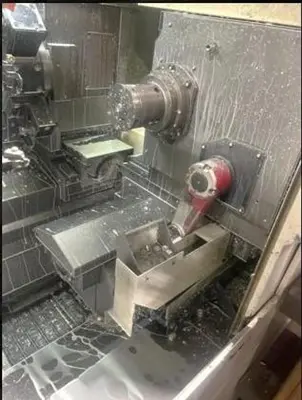

Automatic Parts Catcher
Parts Exit Conveyor
Chip Conveyor
Mist Collector
Rigid Tapping
Fixed Headstock Design
RS 232 Port Interface

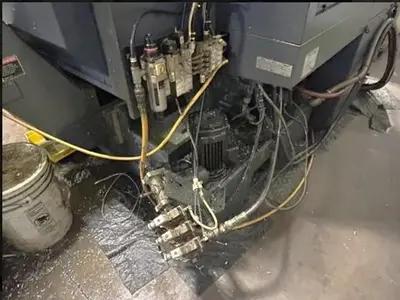

Complete Coolant System with Tank & Pump

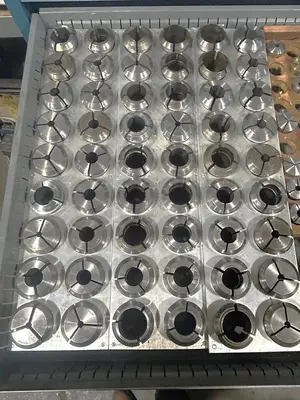

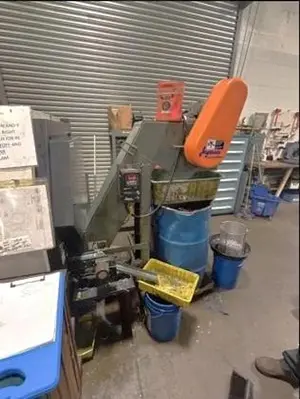

All Available Tooling as seen in photos
All Available Manuals

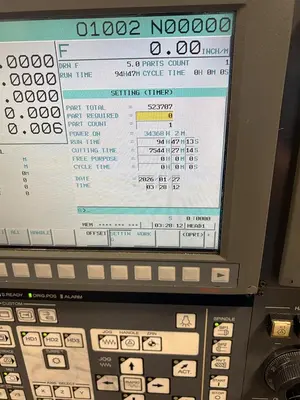

**Power On Hours 34,368**
**Cutting Hours 7,544**

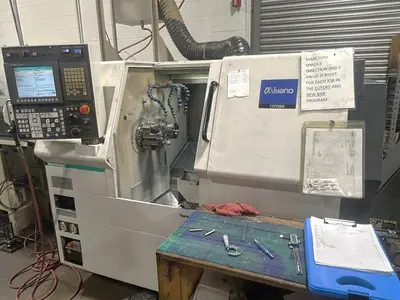

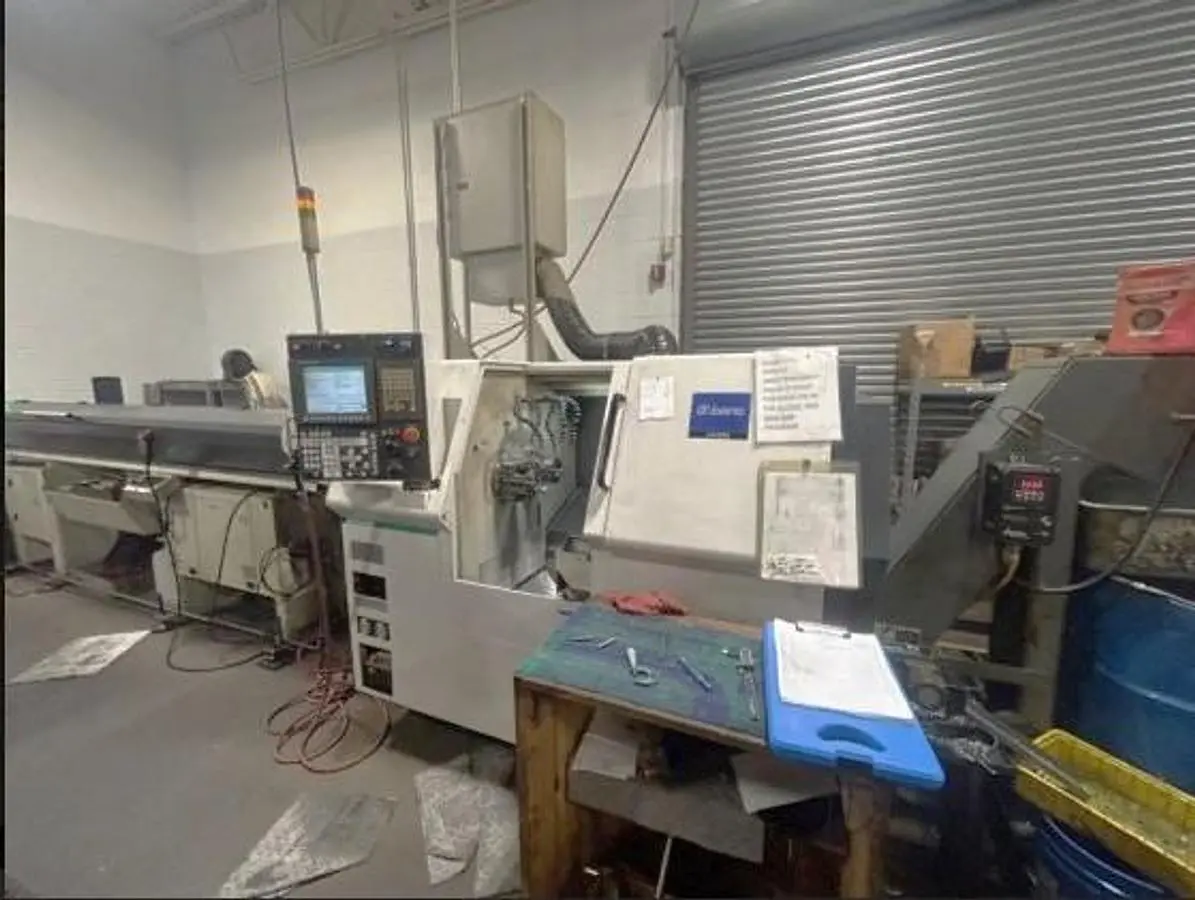

The 2011 Miyano DNA-42 DHY is a used CNC lathe designed for precision machining with a notable twin turret configuration and twin spindles. This machine is equipped with a Y-axis on the upper turret, enhancing its milling capabilities. It supports a collet chuck for both the main and subspindle, allowing for efficient handling of materials with a maximum machining diameter of 1.65 inches and a standard machining length of 3.94 inches.

This lathe is powered by a Miyano/Fanuc control system, coupling reliability with high-performance operations. The main spindle achieves speeds up to 6,000 RPM and the subspindle up to 5,000 RPM, driven by a 10 HP and 7.4 HP motor, respectively. The machine also features live tooling with a speed of 5,000 RPM powered by a 3.75 HP motor, and C-axis spindle rotation capabilities at increments of 0.001 degrees for precise movements.

With a compact footprint measuring 88.25" x 58" x 66.2" and weighing 6,600 lbs, the DNA-42 DHY includes a barfeed and chip conveyor to facilitate continuous operation. Its travel capabilities, including an X-axis travel of 5.52", Y-axis travel of +/- 1.379", and Z-axis travel of 9.26" and 14.18" for Z1 and Z2 respectively, provide versatility in complex machining tasks. The rapid traverse rates of 788 IPM on X1/Z1 and 473 IPM for Y1/X2/Z2 ensure efficient material processing.

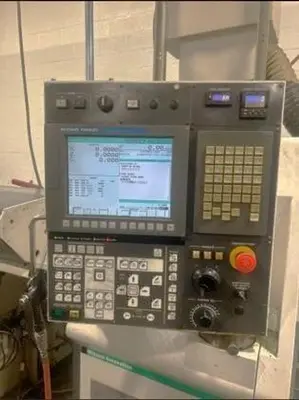

Machine Control: Miyano / Fanuc Control
Chuck types main / subspindle: Collet Chuck / Collet Chuck
Maximum Machining Diameter: 1.65"
Standard Machining Length: 3.94"
Maximum Bar Capacity Spindle 1 / Spindle 2: 1.65" / 1.34"
X-Axis Travel - Both X1 and X2: 5.52"
Y-Axis Travel: +/- 1.379"
Z-Axis Travel - Z1 / Z2: 9.26" / 14.18"
B-Axis Travel (Subspindle): 12.21"
C-Axis Spindle Rotation - Both: 0.001 Degree
Maximum Spindle Speed - Spindle 1 / Spindle 2: 6,000 RPM / 5,000 RPM
Spindle Motor - Main / Subspindle: 10 HP / 7.4 HP
Live Tooling Speed: 5,000 RPM
Live Milling Motor: 3.75 HP
Number of Turret Positiions - Front Turret / Rear Turret: 6 Positions / 8 Positions
Number of Live Tools Capable - Rear Turret: 8 Positons
Rapid Traverse Rates X1, Z1 / Y1, X2, Z2: 788 IPM / 473 IPM
Machine Dimensions: 88.25" x 58" x 66.2"
Machine Weight: 6,600 lbs.
