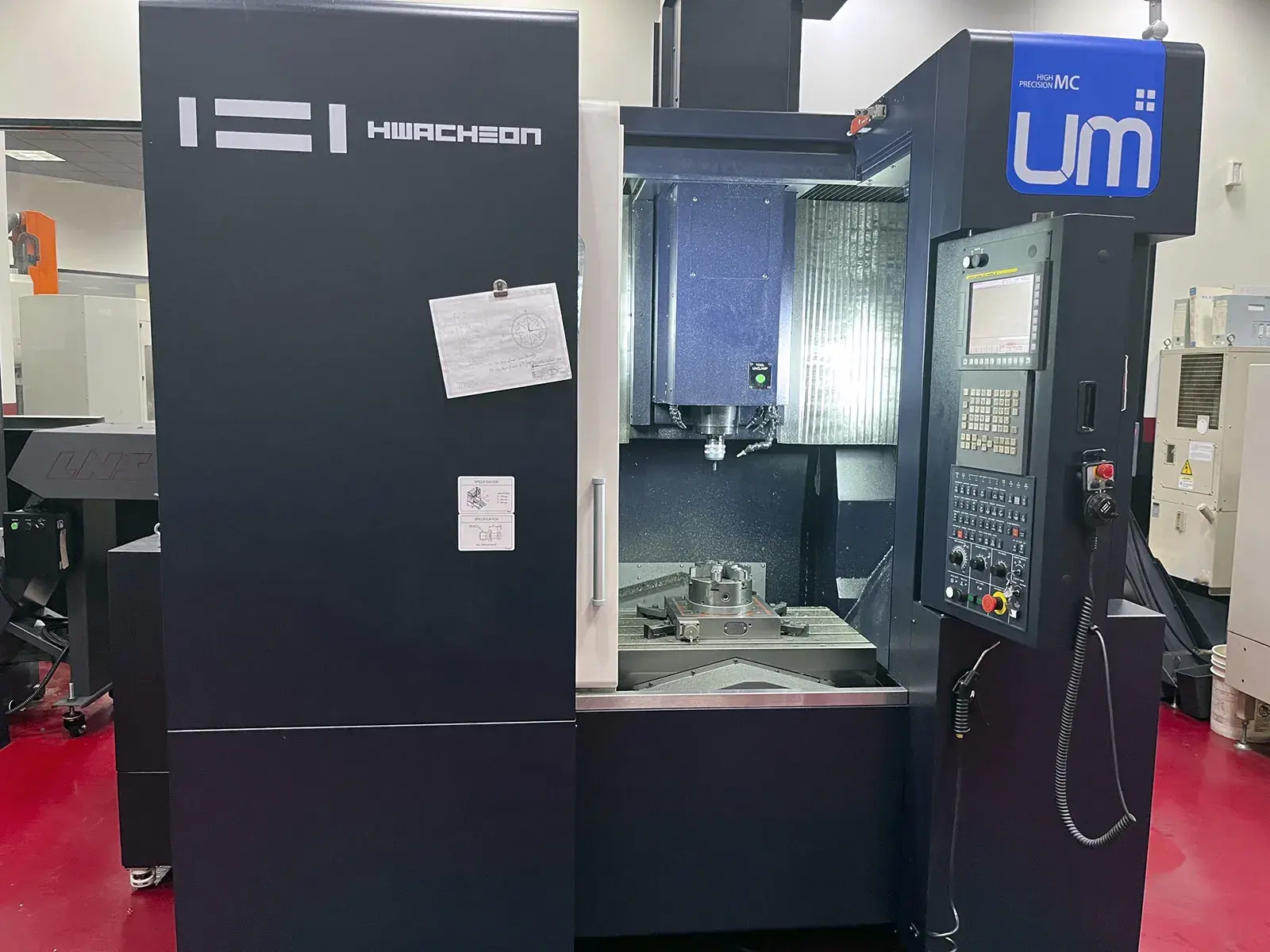

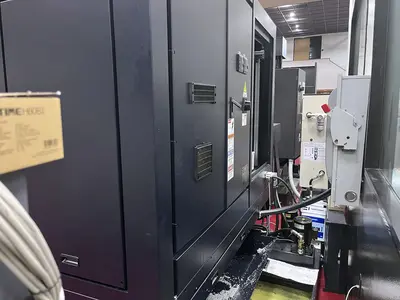

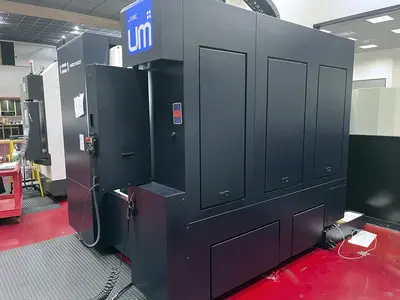

USED 2020 HWACHEON SIRIUS UM+

Mold and Die VMC| 20000 RPM Spindle| 1000 PSI Coolant Thru
Hwacheon Sirius UM+ Vertical Machining Center (2020) with Fanuc 31i Control delivers high-speed, high-precision machining with exceptional surface finishes. Ideal for mold & die, medical, semiconductor, aerospace, and automotive applications, it excels in producing precision molds, thermoplastic components, and complex high-accuracy parts. A reliable solution for advanced manufacturing environments demanding superior quality and performance.

X-axis: 29.5 in
Y-Axis: 19.68"
Z-axis: 18 in
Table Size: 33.5" x 19.68"
Table Weight Capacity: 1800 lbs
Spindle Speed: 20,000 RPM
Spindle Taper: CAT 40
Tool Changer Capacity: 30 tools
Floor Space: 92" x 110"
Machine height: 110"
Machine Weight: 17,600 lbs

Fanuc 31i Control
High Speed Spindle - 20000 RPM
Coolant Thru Spindle (1000 PSI)
Spindle Chiller
Coolant Tanks
