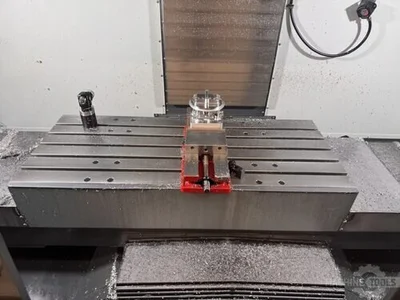

USED 2023 HAAS VF-3SS

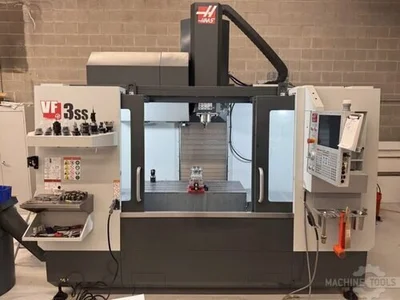

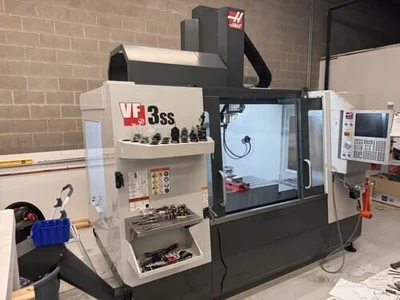

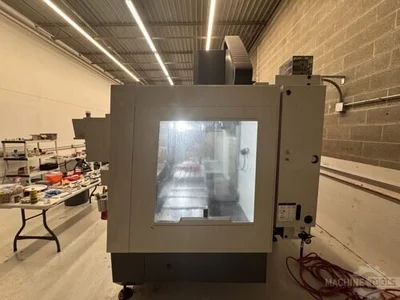

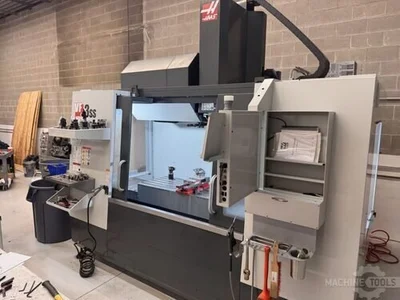

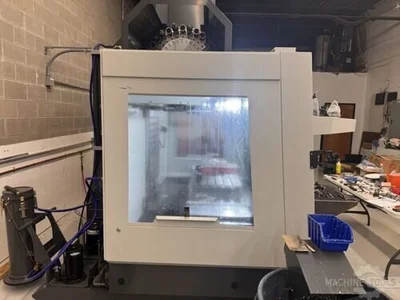

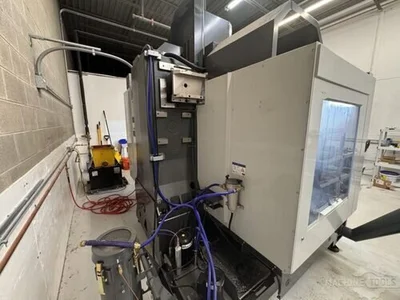

Haas VF-3SS CNC Vertical Machining Center w/ TRT 210 (2023)

General Info

Stock #: 111260006
Location: GA
Brand: Haas
Model: VF-3SS
Year: 2023
Loading Fee: Rigging Required

Specifications

X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Traverse (X,Y,Z): 1,400 IPM
Max Table Load: 1,750 Lbs
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: CAT 40

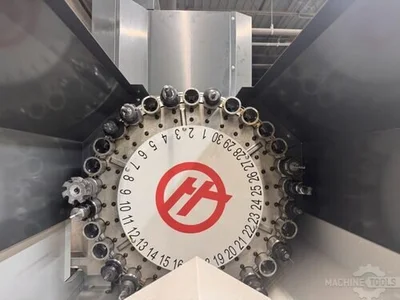

Tool Changer: 30 ATC
Max Cutting Speed: 833 IPM
Max Tool Weight: 12 Lb
Tool-to-Tool: 2.8 sec
Cip-to-Chip: 3.6 sec
Table Size: 48" x 18"

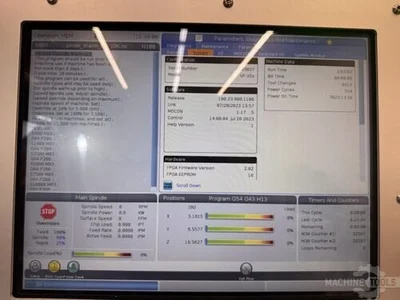

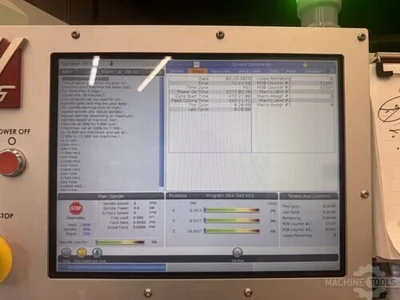

Power On Time: 3772
Cycle Start Time: 472
Feed Cutting Time: 294

Equipped With

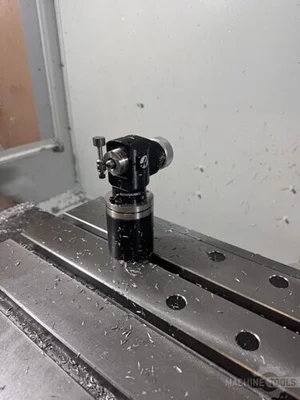

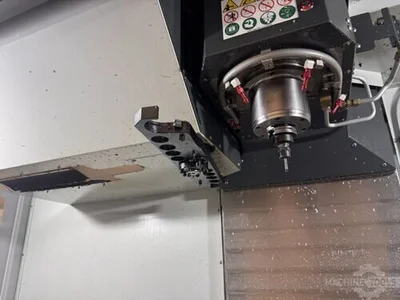

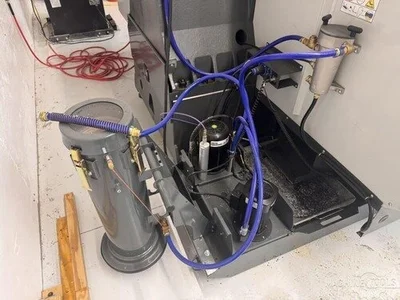

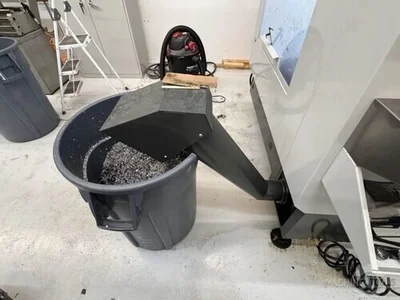

2,000 rpm inline direct-drive spindle, 40-taper (CT40), 30+1 side-mount tool changer, equipped with 4th Axis Drive Wiring, 5th Axis Drive and Wiring for brushless rotary tables, TRT210 210mm Trunnion Rotary Table, Through Spindle Coolant (TSC) 300 psi / 21 bar, Auger-Style Chip Conveyor, High-Speed Machining with Look-Ahead (HSM), Wireless Intuitive Probing System (Renishaw WIPS-R), Probe Riser Block (PRB-EC3), Auxiliary Coolant Filter System 25-micron (ACF), Through-Tool Air Blast (TAB), Chip Strainer / Chip Tray Filter Kit

Additional Info

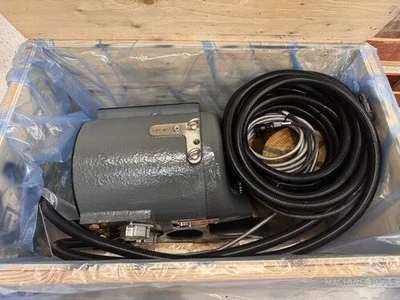

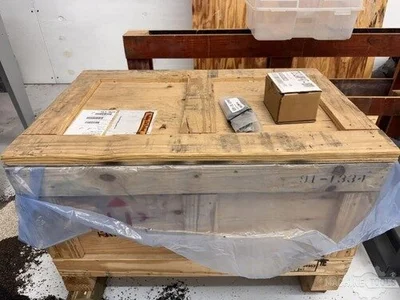

Machine includes an unused TRT210 trunnion table (can be seen in pictures). Machine also is under power and has hardly any use. Can be demoed upon request
