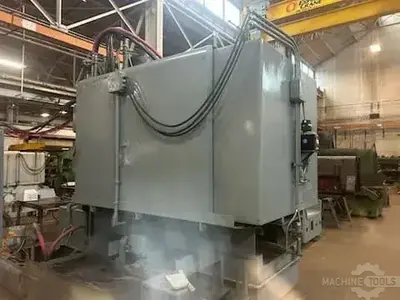

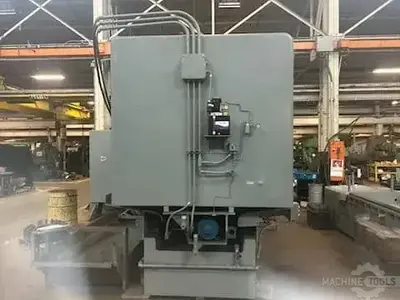

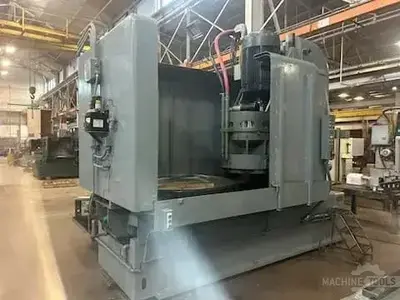

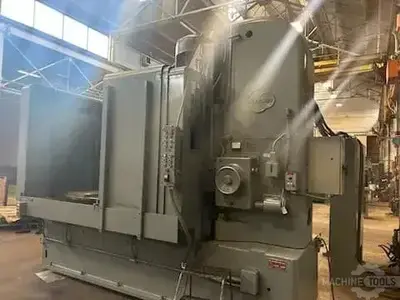

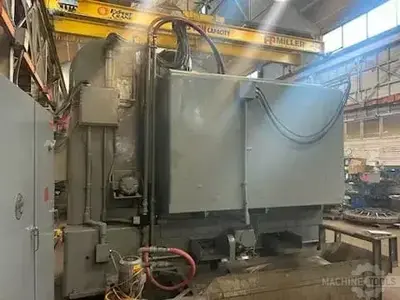

Vertical Rotary Surface Grinder
| Chuck Size | 60" | 1,524 mm |
| Horz/Vert | Vert | Vert |
| Power | 100 hp | 74.6 kW |
| Swing | 72" | 1,828.8 mm |
| Grinding Wheel Dia. | 32" | 812.8 mm |
Request a Quote
Add to Cart
Chuck Diameter: 60"
Grinding Wheel Diameter: 32"
Swing Inside Guards: 72"
Height Under Wheel: 48"
Wheel Speed: 500 RPM
Motor: 200 HP
Approx. Weight: 40,200 Lbs
Dimensions: 186" L X 90" W X 11'-9" Tall
Cortland Style 8 Segment Grinding Chuck: New Bearings and Seals
New Pinion Gear Shaft: Rebuild Spindle
Requires External Coolant System (Not Included): Wheel Dresser
