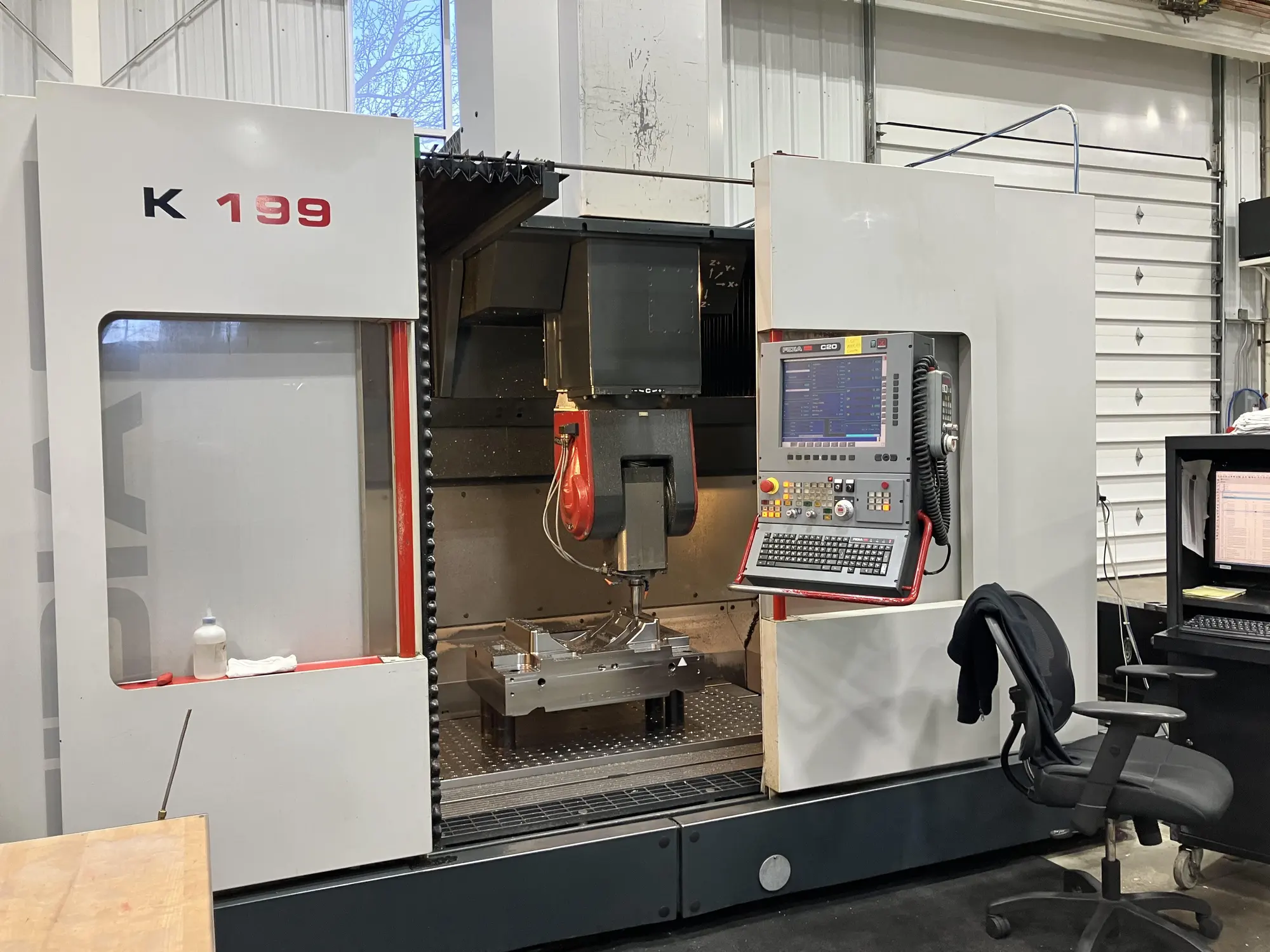

Explore precision machining with the 2007 FIDIA K199, equipped with a Fidia C-20 control, 3-axis configuration, and 24,000 RPM spindle speed. Features high-pressure coolant, chip conveyor, and 42-tool capacity. Dimensions: 79" x 49" table, 18,300 kg weight.
| X | 65" | 1,651 mm |
| Y | 29.5" | 749.3 mm |
| Z | 33.5" | 850.9 mm |
| Table-W | 49" | 1,244.6 mm |
| Table-L | 79" | 2,006.6 mm |
| # Axis | 3 | 3 |
Travels : 64" x 29" x 33"
Table Size: 79" x 49"
Table Load Capacity: 26,455 Lbs.
Control: Fidia C-20
Axis speeds: 1181 IPM
Spindle Speed: 24,000 RPM
Spindle Taper: HSK 63A
Dimensions:
18,300 Kg machine mass weight (73,000 Lbs.)
5150 MM length (202")
4400 M width (173")
4157 M height (163")
Weight Max. On Table 12000 kgs (40,000 Lbs.)
Sindle Taper HSK 63A
Spindle motor: 55 kW (73 HP)
Spindle rotation speed: 24,000 t/min - rp
Number Of Tools: 42 ATC
Equipped With:
High Pressure Coolant Through Spindle
Chip conveyor
Coolant Filtration
Ballscrews for linear axis movement
M5A/55 continuous Bi-Rotary Head
New spindle installed in yr 2018
+150 mm rotating the C axis with vertical spindle
New Spindle 2026
