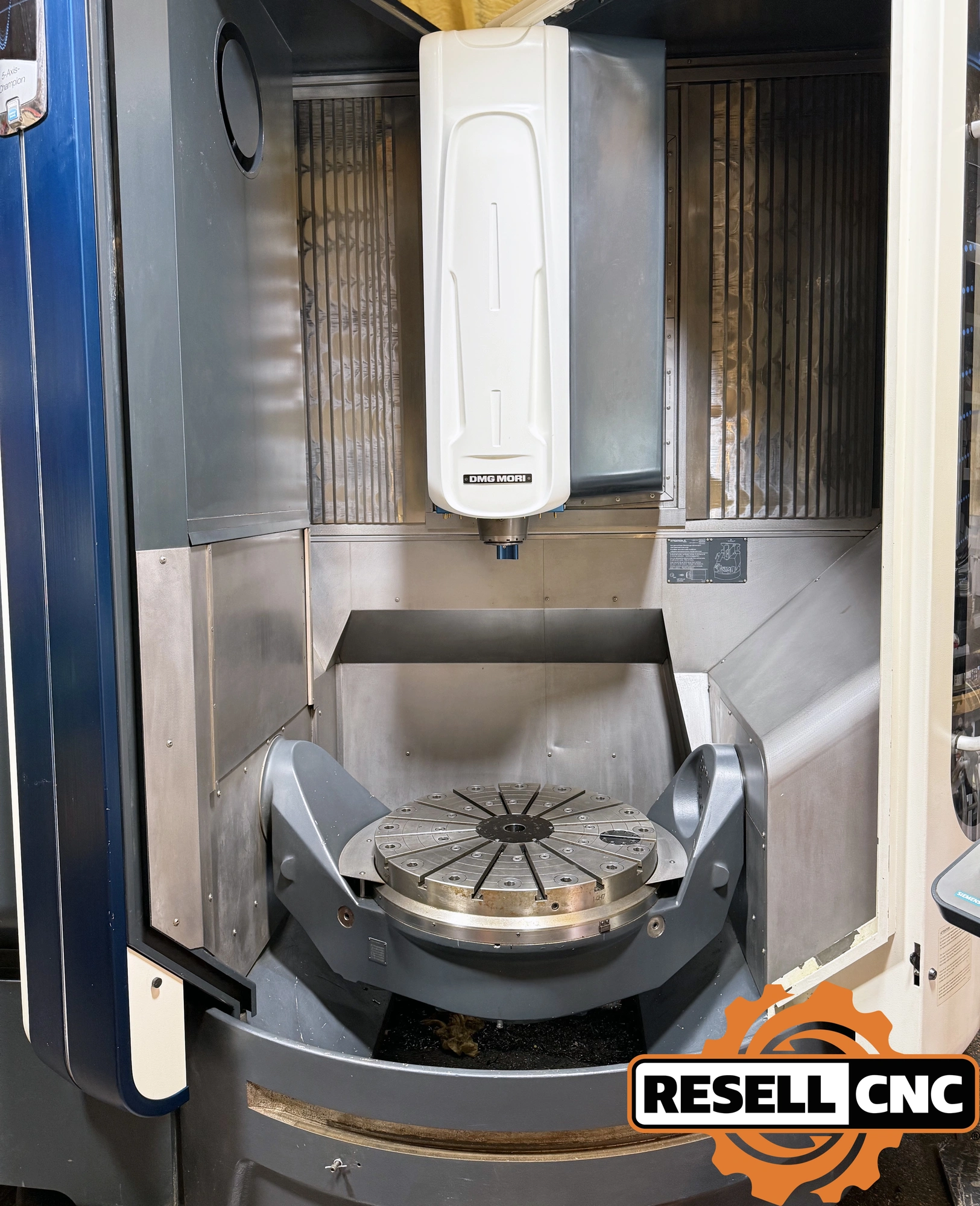

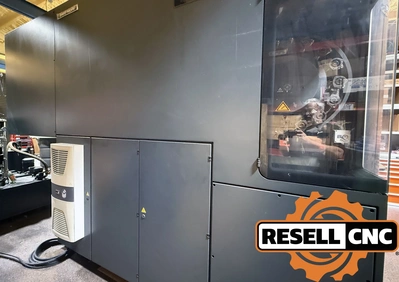

USED 2014 DMG Mori Ultrasonic 65

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Adaptive Control (ADC)

Glass Machining Package

easySONIC Control

3D Control

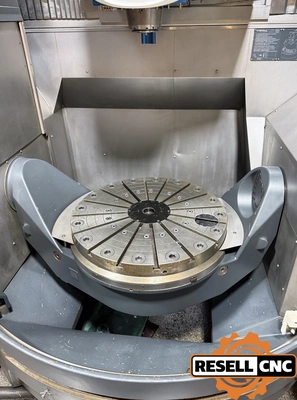

Additional Machine Specs: NC Swivel Rotary

A-Axis Range: ±120°

C-Axis Rotation: 360°



Tool Clamping

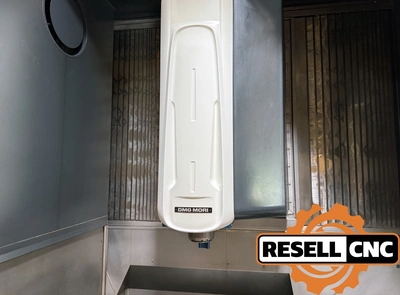

Vertical Headstock

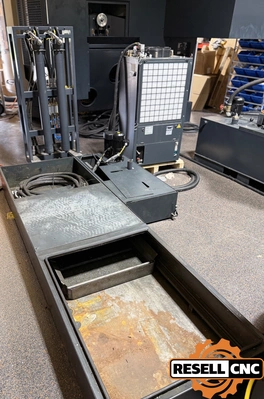

Chip Trough

Coolant Ring Nozzle

B Axis: false
C Axis: false

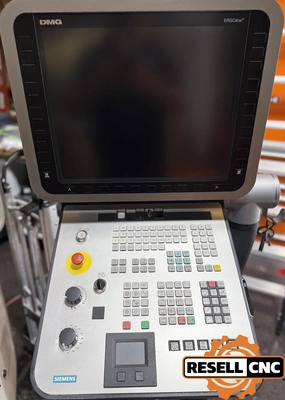

Control Make Model: Siemens 840D SolutionLine FD CNC Control
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 1323.0
Max Tool Diameter Adjacent: 12.5
Number Of Pallets: 1.0
Programmable Tailstock: false
Rotary Table Trunnion: None
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 17.4
Spindle Speed: 18000.0
Spindle Taper Type: HSK63
Sub Spindle: false
Tailstock: false
Tool Changer Type: Chain
Tool Magazine Capacity: 90.0
Twin Turret: false
Vertical Table Pallet Size: 31.5" x 25.6
X Travel: 24.8
Y Axis: false
Y Travel: 25.6
Z Travel: 21.2
