X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
B Axis: false
C Axis: false
Chip Removal: Chip Auger
Chip To Chip Time: 4.5

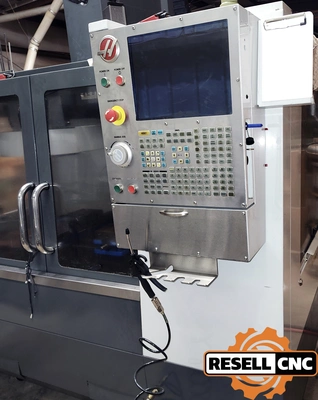

Control Make Model: Haas CNC Control
Control Options: Rigid Tapping, Expanded Memory
Coolant Type S: Programmable Coolant
Cutting Feed Rate: 650
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Tool Diameter: 3.5
Max Tool Weight: 12.0
Max Workpiece Weight: 3000.0
Programmable Tailstock: false
Rapid Traverse: 1000
Rotary Table Trunnion: Wired for 4th Axis
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 30
Spindle Nose To Table Top: 4-24
Spindle Speed: 7500.0
Spindle Taper Type: BT40
Sub Spindle: false
Tailstock: false
Tool Changer Type: Umbrella
Tool Change Time: 4.2
Tool Magazine Capacity: 20.0
Twin Turret: false
Vertical Table Pallet Size: 36" x 14"
X Travel: 30.0
Y Axis: false
Y Travel: 16.0
Z Travel: 20.0
