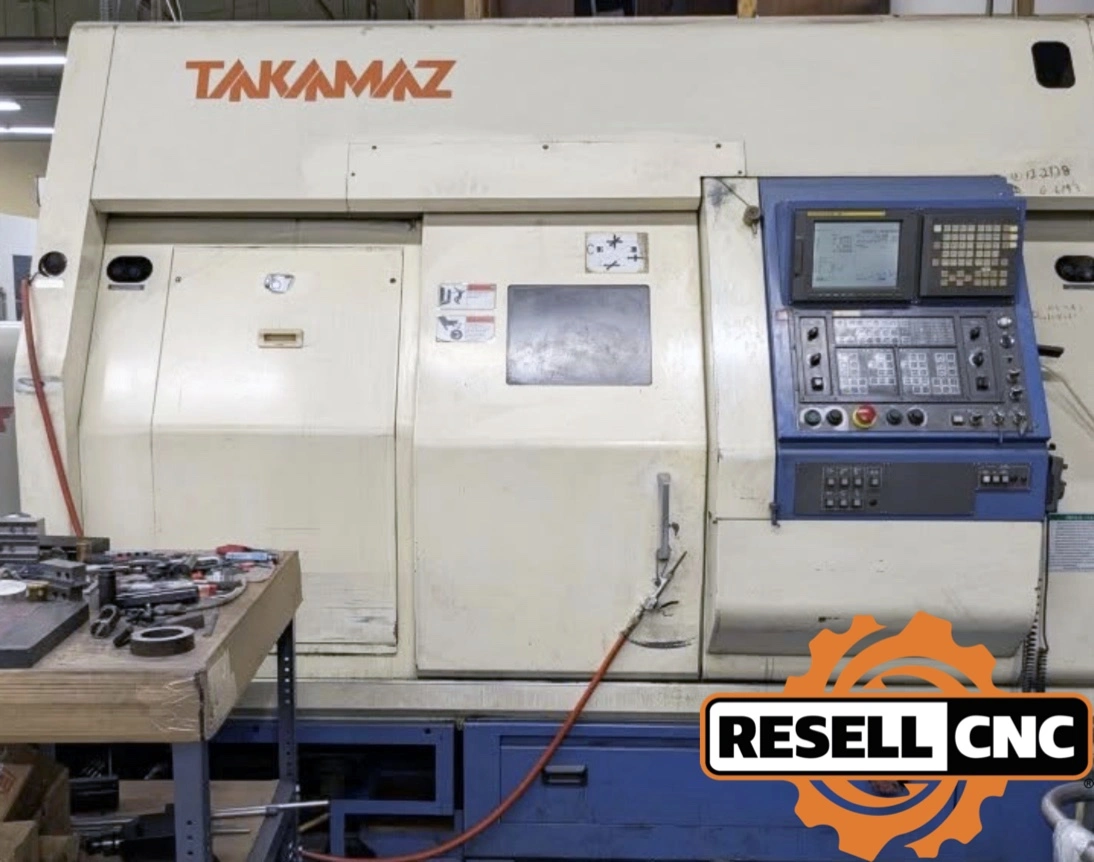

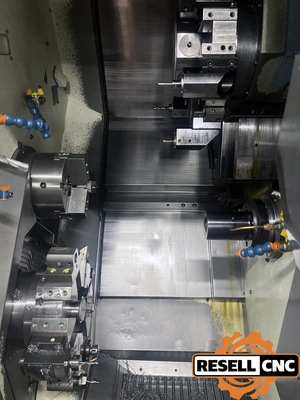

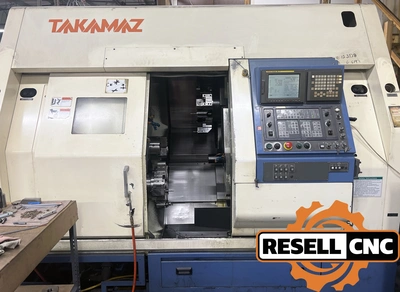

USED 2002 Takamaz XY-2000
Overview
Specs
X2nd Chuck Description: Collet
X2nd Turret Live Tooling: true
X2nd Turret Positions: 8
X4th Axis: false
X5th Axis: false
Additional Machine Specs: (10) Live Tool Holders
Bar Capacity: 2.5
B Axis: false
C Axis: true
Chuck Description: 3-Jaw
Chuck Size: 8.0
Chuck Type: Hydraulic
Control Make Model: Fanuc 18i-T CNC Control
Distance Between Centers: 20.08
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Max Cutting Turning Diameter: 8.27
Max Swing Over Bed: 8.27
Programmable Tailstock: false
Second Bar Capacity: 1.65
Second Spindle Motor: 15
Second Spindle Nose: 16C
Second Spindle Speed: 3500
Single Turret: false
Single Turret Live Tooling: true
Spindle Bore: 2.5
Spindle Motor: 25
Spindle Speed: 3500.0
Sub Spindle: true
Tailstock: false
Tool Positions: 12.0
Total Spindles: 2
Twin Turret: true
X Travel: 6.89
Y Axis: true
Z Travel: 20.08
