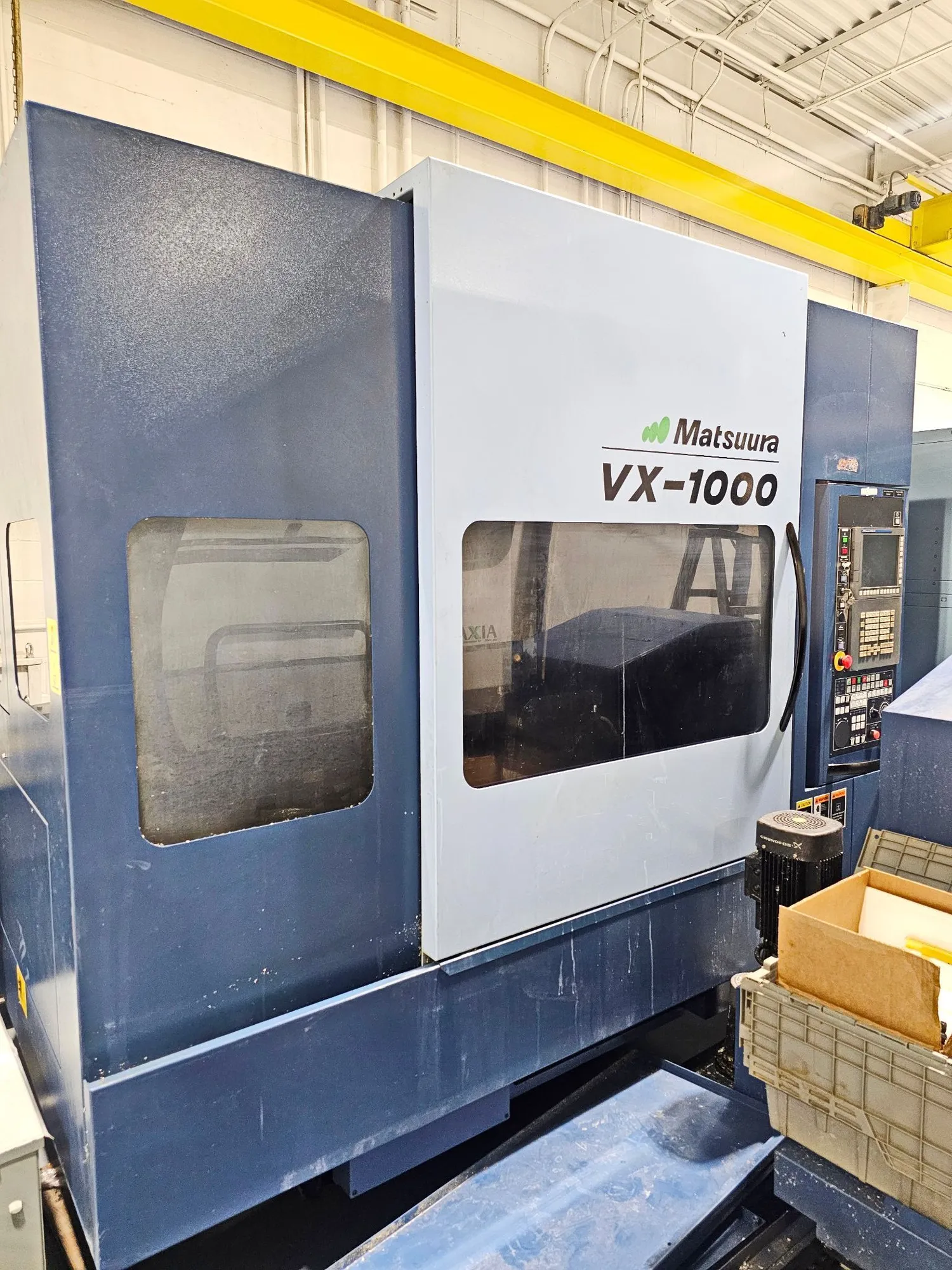

2017 Matsuura VX-1000 Vertical CNC Machining Center, 5-Axis Trunnion Rotary Table, TSC, Renishaw Probing, Coolant Filtration, Spindle Chiller, Chip Conveyor
| X-Axis | 40.15" | 1,019.8 mm |
| Y-Axis | 24.01" | 609.85 mm |
| Z-Axis | 24.01" | 609.85 mm |
| B-Axis | -30° ~ +110° | -30° ~ +110° |
| C-Axis | 360° | 360° |
| Power | 30 hp | 22.4 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 30" | 762 mm |
| Table-L | 47.24" | 1,199.9 mm |
| Distance Spindle Nose To Table Top | 27.95" | 709.93 mm |
| # Axis | 5 | 5 |
| Max Table Load | 1100 | 1100 |
| Rapid Traverse (X/Y/Z) | 1574.8 / 1574.8 / 1417.32 in/min. | 1574.8 / 1574.8 / 1417.32 in/min. |
| Made In | Japan | Japan |
| Control | CNC (Matsuura G-Tech 31i) | CNC (Matsuura G-Tech 31i) |
| Dimensions | 108.3" X 99.01" X 119.29" | 108.3" X 99.01" X 119.29" |
| Weight | 16,258 lb | 16,258 lb |
5-axis trunnion rotary table
Through spindle coolant
LNS coolant filtration
Renishaw OMP-40 in-process touch probe
Renishaw NC-4 non-contact laser tool probe
Refrigerated spindle chiller
Chip conveyor
