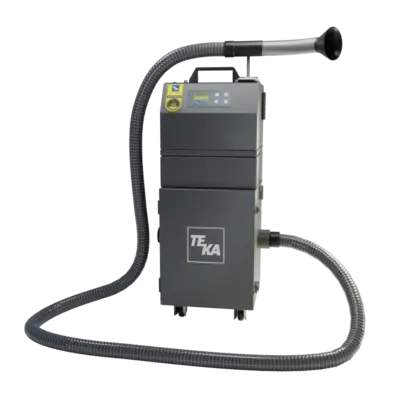

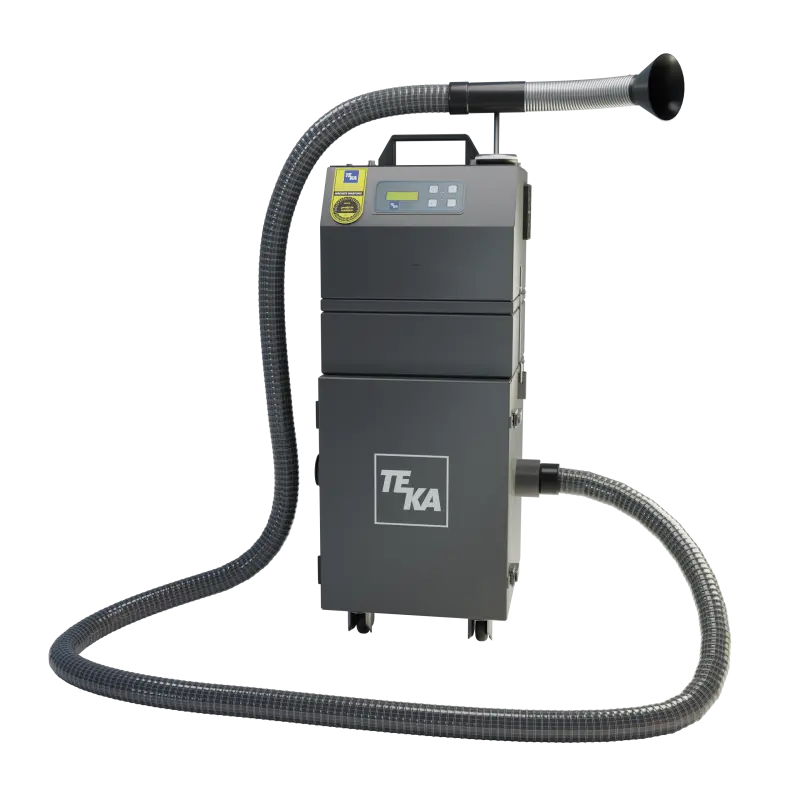

The HandyCart is a compact, mobile high-vacuum extraction unit designed for welding fume and dust extraction in frequently changing locations.
The HandyCart is a compact, mobile high-vacuum extraction unit designed for welding fume and dust extraction in frequently changing locations. Ideal for construction sites, shipbuilding, small parts welding stations, and motor vehicle workshops, this unit ensures efficient and reliable filtration. The filter is manually cleanable with a blow gun and 1.5-2 bar of clean, dry, oil free compressed air.
Key Features & Benefits
Portable and Compact Design for Easy Mobility: The HandyCart’s design allows for effortless transport to various work sites, providing on-demand fume extraction wherever needed.
High-Quality ePTFE Gore-Tex Filter Cartridge with ≥99% Separation Efficiency: Guarantees a high level of filtration, ensuring that harmful dust and fumes are effectively removed from the workspace.
Automatic Speed Control for Optimized Performance: Adjusts the extraction power automatically to maintain optimal performance and energy efficiency.
2 Hi-Vac Hose Connections (Ø 50 mm): Allows for simultaneous connection of two extraction hoses, increasing the versatility and efficiency of the unit.
User-Friendly Maintenance Door: Simplifies filter cleaning and maintenance, reducing downtime and ensuring consistent performance.
Optical Filter Monitoring and Operating Hours Meter: Provides real-time information on filter condition and usage, enabling proactive maintenance and ensuring optimal operation.
Optional Accessories Available for Enhanced Functionality: Expands the capabilities of the HandyCart to meet specific application requirements.
The HandyCart guarantees a separation efficiency of 99% or greater, ensuring that dust and fumes are contained. The dust collection tray allows for easy and clean disposal, and an optional polyethylene bag liner further simplifies maintenance.
Applications
Welding fume extraction in construction sites and shipbuilding
Small parts welding stations and automotive workshops
Industrial applications requiring portable fume extraction
Environments where torch extraction is needed
Max. Volumetric Flow of Fan: 188cfm
Max. Pressure: 21,000 Pa
Motor Performance: 1.6 hp
Separation Efficiency: ≥99%
Sound Level: Approx. 62 dB(A)
Hose connection: 2 x Ø 2in
Filter Equipment: ePTFE Gore-Tex Cartridge Filter
Filter Cleaning Method: Manual
Drive Type: Continuous Running Turbine
Dimensions (W × D × H): 11.8 in × 11.8 in × 26.73 in
Weight: Approx. 62 lbs
