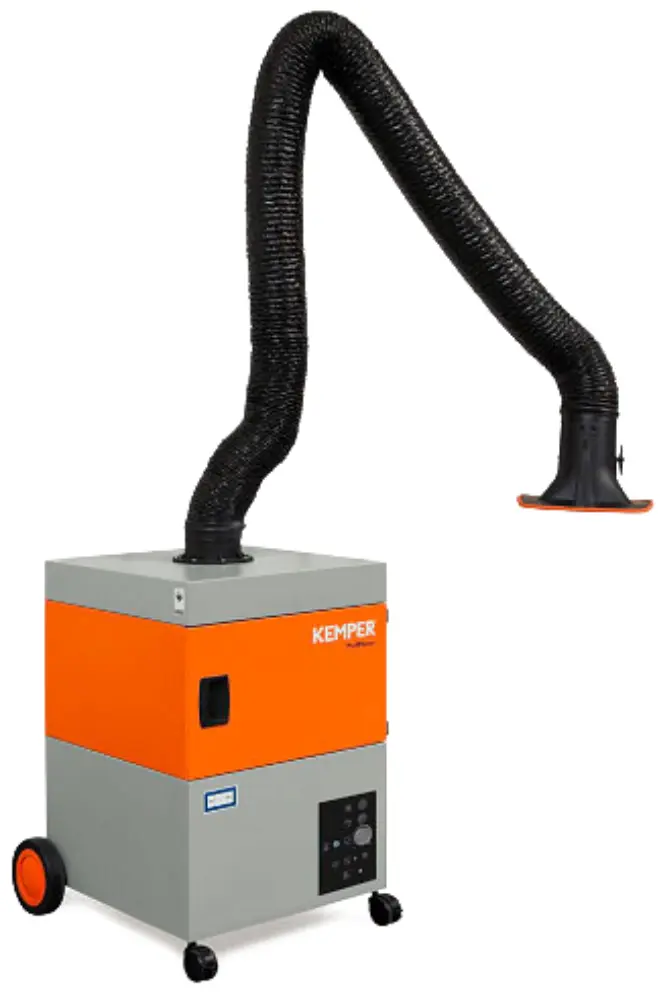

The ProfiMaster is a mobile fume extractor with W3 certification, designed for safe, efficient capture of low to medium welding fume and dust. Ideal for all materials, including high-alloy steel, in shops with occasional to frequent welding.
The ProfiMaster is a portable welding fume extraction unit engineered for light and moderate welding operations. Designed with a rugged powder-coated steel body and high-efficiency dual-stage filtration, this unit offers reliable fume control for TIG, MIG, and stick welding in small to mid-sized environments.
The ProfiMaster delivers reliable mobile welding fume extraction for a wide range of materials and duty cycles. Designed for safe and easy operation, it features a dual-stage storage filter cassette with pre-filter and a maintenance door for simple filter changes. The flow-optimized exhaust hood and 10 ft flexible arm provide effective source capture with minimal repositioning. Certified W3 for stainless and high-alloy steel welding, this portable system keeps your workspace cleaner and safer, with filter monitoring and rotation field control for added safety.
Key Benefits
Safe operation: Rotation field control and filter monitoring improve user safety
Easy filter changes: Maintenance door allows quick, tool-free filter access
Less repositioning required: Flow-optimized exhaust hood design
Flexible arm options: 10 ft rotating, flexible exhaust arm
W3-certified: Suitable for high-alloy steel and stainless fume
Applications
Welding and grinding on all materials, including stainless steel
Occasional to frequent use in fabrication shops
Low to medium levels of smoke and dust
Filter Stages: 2
Filter Type: Storage filter cassette
Filter Surface Area: 17 m²
Filter Material: Non-woven fiber
Filter Cleaning Method: Manual (replaceable)
Separation Efficiency: 99.5%
Filter Class: E12
Pre-Filter: Yes
Certification: IFA-Certified W3-Approved
Max Volumetric Flow of fan: 1,100 m³/h
Max. Pressure: 2,100 Pa
Engine Power: 1.5 HP
Supply Voltage: 115 V / 60 Hz
Current Consumption: 13 A
Extraction Arm Diameter: 6 inches
Sound Level Approx.: 72 dB(A)
Weight: 230 lbs
Fan Type: Radial fan
Quantity of Extraction Arms: 1
Exhaust Arm Type: Flexible exhaust arm
Exhaust Arm Diameter: 150 mm
Exhaust Arm Length: 10 ft
Dimensions (w × d × h): 31 × 29 × 37 inches
