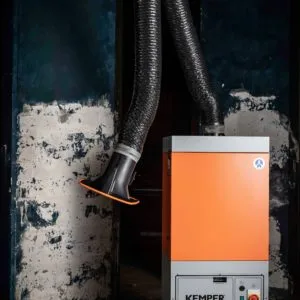

FilterMaster XL Mobile Welding Fume Extractor

The FilterMaster XL is a high-performance mobile welding fume extractor designed for nonstop duty cycles and high-particulate environments. With W3/IFA certification and automatic filter cleaning via rotating nozzle, it provides reliable, efficient air filtration across demanding applications.
The FilterMaster XL is an industrial-grade mobile welding fume extraction unit engineered to handle high levels of smoke and fine particulate emissions during nonstop welding operations. Designed for all welding materials including high-alloy steel, this extractor integrates a flow-optimized exhaust hood and KemTex® ePTFE membrane cartridge filters that deliver surface-level filtration with more than 99.9% efficiency.
The W3/IFA-certified FilterMaster XL uses an automatic rotating nozzle cleaning system triggered by pressure differential, ensuring consistently high airflow performance and extending filter life with minimal maintenance. The flexible 10 ft extraction arm provides full 360° access and is built to stay in position without constant repositioning. With a rugged steel housing, integrated radial fan, and rotation field control for added operational safety, this mobile unit is ideal for workshops requiring continuous, high-capacity fume extraction.
Key Benefits
Automatic filter cleaning: Internal rotating nozzle cleans filter based on pressure differential
KemTex® ePTFE filter cartridge: High-efficiency surface filtration exceeds 99.9%
W3/IFA certified: Suitable for welding fume separation of high-alloy steel processes
Flow-optimized exhaust hood: Reduces need for manual adjustment and improves fume capture
Flexible reach: 10 ft exhaust arm rotates 360° with integrated damper
Safe operation: Rotation field control and radial fan ensure reliable motor performance
Mobile and durable: Built for nonstop operation in demanding industrial welding environments
Applications
Welding processes producing high levels of smoke and particles
Continuous-duty welding environments
High-alloy steel welding
Shops needing W3-certified source capture
Situations requiring mobile extraction with flexible arm reach

Filter Stages: 1
Filter Method: Cleanable filter
Filter Cleaning Method: Rotating nozzle
Filter Surface Area: 10 m²
Filter Type: Filter cartridge
Filter Material: ePTFE membrane
Filter Efficiency: > 99.9%
Dust Classification: M
Min. Extraction Capacity: 1000 m³/h
Max. Pressure: 3,000 Pa
Engine Power: 2 HP
Supply Voltage: 115V / 60Hz Single Phase
Current Consumption: 16.5 amp
Separation Rate: 99.9%
Sound Level Approx.: 69 dB(A)
Quantity of Extraction Arms: 1
Exhaust Arm Type: Flexible Exhaust Arm
Extraction Arm Diameter: 150 mm
Weight: 342 lbs
Dimensions (W x D x H): 34 in. x 26 in. x 58 in.
IFA-Certification: W3 Approved – 201023121/1140
Fan Type: Radial fan
Compressed Air Supply: 5 – 6 bar
