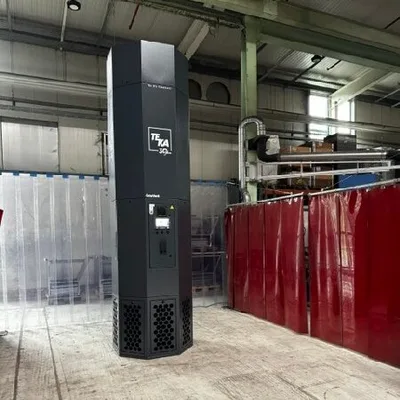

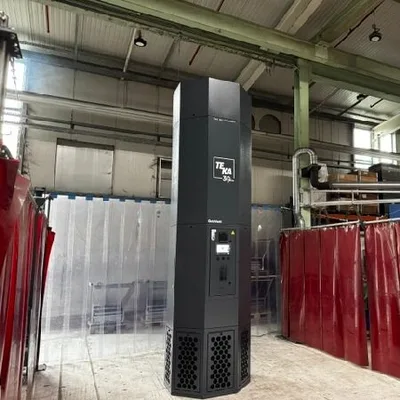

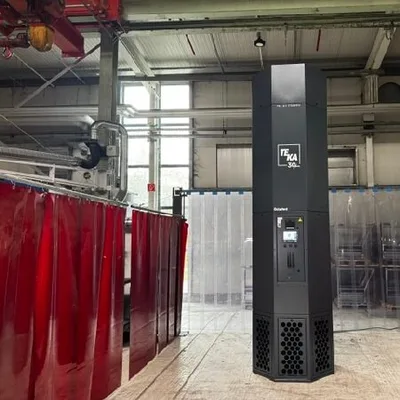

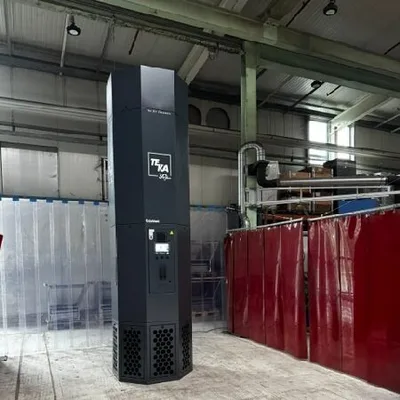

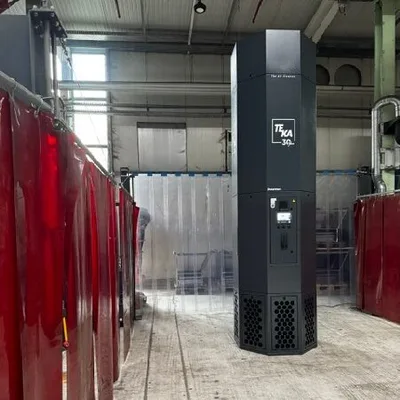

The OctaVent Industrial Air Purification System is designed to deliver clean, safe air in environments where local extraction alone is not possible or sufficient. Using the layered ventilation principle, it effectively protects employees and equipment by removing airborne dust, smoke, and contaminants. Clean air is recirculated back into the workspace with minimal turbulence, ensuring pollutants are not redistributed into surrounding areas.
Thanks to its innovative intake with an integrated baffle plate, the OctaVent immediately redirects contaminated air and separates coarse dust before it reaches the filter. This smart design increases filter lifespan and reduces maintenance costs. With four high-performance nano-fiber filters, a large filter surface, and an optional activated carbon post-filter for odors and gases, the OctaVent ensures exceptional air quality while operating efficiently.
Indispensable Air Purification for Demanding Industrial Environments
As part of a complete occupational safety strategy, the OctaVent Industrial Air Purification System is the ideal supplement to source extraction. Especially in welding, fabrication, and production areas where high volumes of dust and fumes are generated, OctaVent helps facilities meet exposure limit values and protect both operators and surrounding workstations.
Covering an area of approximately 2,690 ft² with a reach radius of up to 29.5 ft, OctaVent delivers powerful displacement ventilation from a compact 12.5-foot unit. It filters ≥99% of airborne particles while keeping energy consumption low, thanks to its efficient 8 hp EC-motor fan.
Key Benefits
Displacement ventilation: Captures polluted air at height and recirculates clean air near the floor
High efficiency: Cleans the air across approx. 2,690 ft² with up to 29.5 ft reach
Innovative intake design: Integrated baffle plate separates coarse dust early, extending filter life
Nano-fiber filters: Four PTFE nano filters with 80 m² surface ensure ≥99% separation efficiency
Odor control: Optional activated carbon post-filter neutralizes gases and unpleasant smells

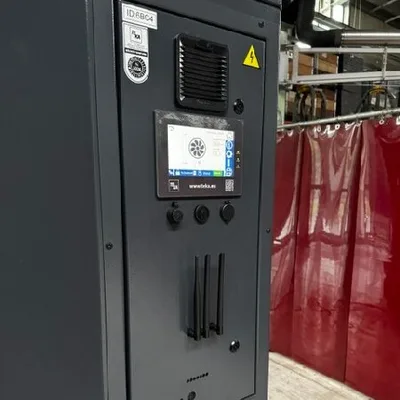

Smart operation: Environmental sensors, modern touch display, and network connectivity (LAN, Wi-Fi, GSM)

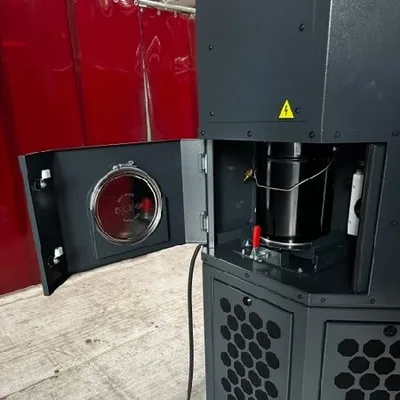

Low-contamination dust disposal: Easy-to-use dust collection bin with plastic liner option for safe emptying
Compact footprint: Only 40 in x 40 in base with 12.5 ft height, relocatable with crane eyes
Applications
Welding workshops and fabrication facilities
Production halls with changing dust and smoke sources
Logistics areas with high air quality requirements
Industrial environments where local exhaust ventilation is insufficient
Workplaces needing additional air purification to meet safety standards
Filters: 4
Filter Surface: 80 m²
Filter Material: Nano PTFE
Separation Efficiency: ≥ 99%
Cleaning: Automatic
Max. Fan Power: 8 hp
Dimensions (W x D x H): 40 in x 40 in x 12.5 ft
