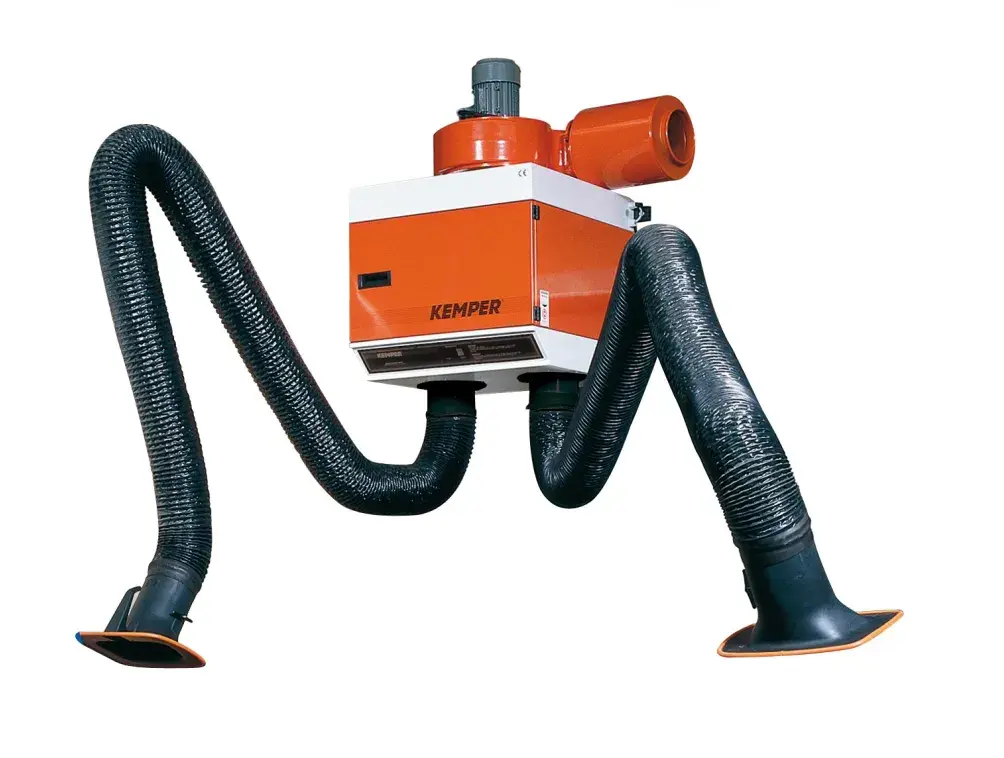

Mechanical Welding Smoke Filter w/2x10ft Arm,115v
Overview
Description
Configured with two 10 ft flexible exhaust arms, this model allows for dual-station extraction, making it possible to capture fumes from two work areas at once or alternate between stations as needed.
The Mechanical Welding Smoke Filter from Precision Welding Group provides effective source capture for low to medium-duty welding and metalworking applications. This stationary unit features a non-woven fiber filter cassette with a large 15.8 m² surface area, dual-stage filtration, and easy filter access via a maintenance door for quick replacement.
Equipped with a 10 ft flexible exhaust arm and 1.5 hp radial fan motor, the system ensures reliable airflow and efficient fume extraction. Its compact footprint and integrated silencer make it suitable for space-conscious environments. Additional options such as automatic start/stop and lighted capture hood are available for enhanced operator convenience. The design also supports advanced features like filter monitoring and optional dual-arm configurations.
Configured with two 10 ft flexible exhaust arms, this model allows for dual-station extraction, making it possible to capture fumes from two work areas at once or alternate between stations as needed.
Key Benefits
Easy filter changes: Maintenance door provides quick access for filter replacement
Reduced adjustments: Flow-optimized hood requires less repositioning
Filter monitoring: Integrated monitoring increases operational safety
Quiet operation: Integrated silencer reduces workplace noise
Flexible arm reach: 10 ft exhaust arm supports easy source capture
Applications
Light and medium welding workstations
Occasional to frequent use in small shops
Metalworking and fabrication booths
Training or maintenance areas
For assistance selecting the correct configuration or to discuss application requirements, contact our team.
Specifications
| Flow Rate | 1,200 ft³/min. | 1,200 ft³/min. |
|---|---|---|
| Power | 1.5 hp | 1.1 kW |
Filter Stages: 2
Filter Type: Disposable cassette
Filter Surface Area: 15.8 m²
Filter Material: Non-woven fiber
Filter Class: F9
Pre-Filter: Yes
Motor Power: 1.5 hp
Power Supply: 115V or 3ph 230/460V
Sound Level Approx.: 68 db
Fan Type: Radial
Weight: 187 lbs (without arms)
Dimensions (W x D x H): 25.78 x 25.78 x 39.37 in
