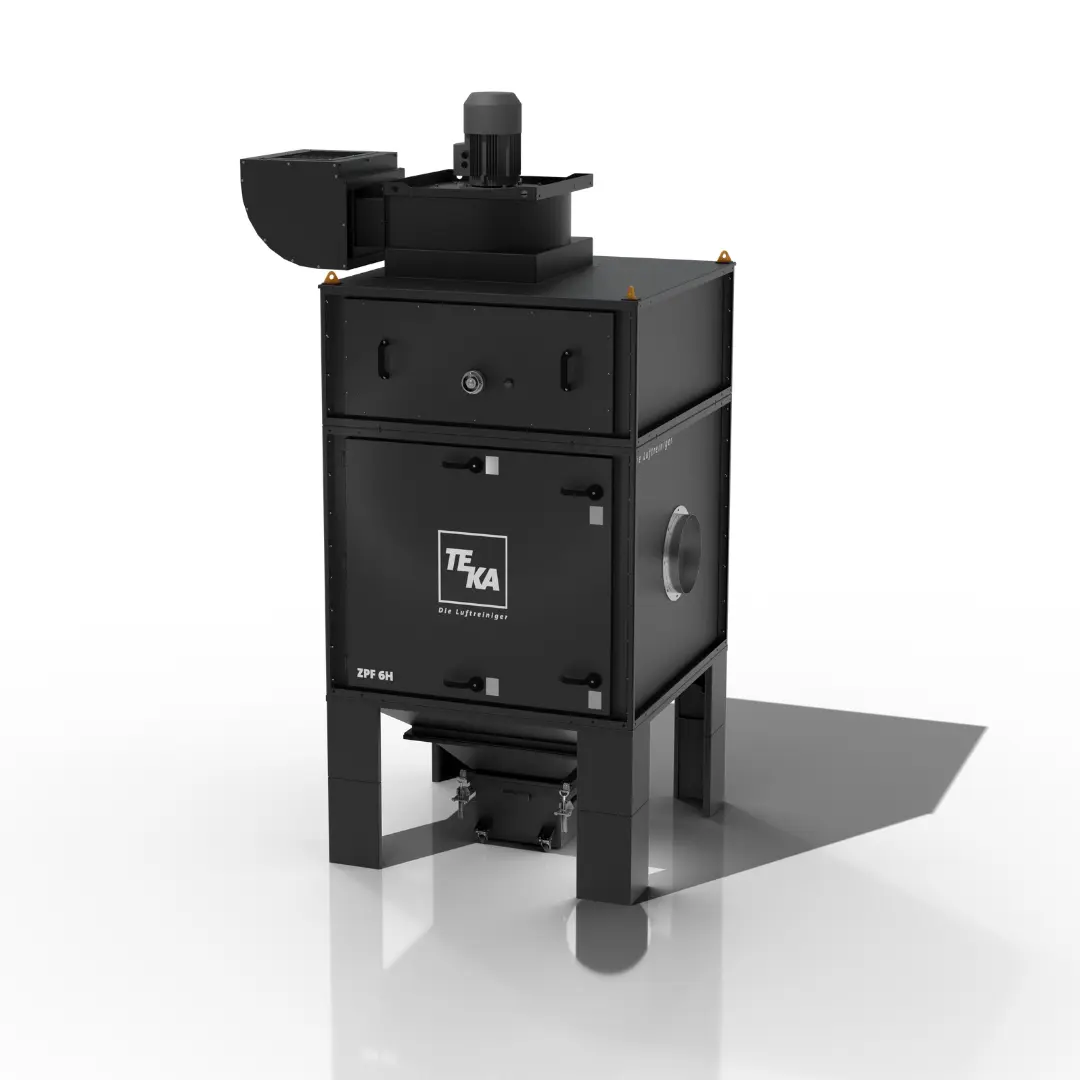

The ZPF Central Suction and Filter Unit is a high-capacity filtration system designed for multi-station air extraction. With automatic filter cleaning and a modular design, it effectively removes dust and fumes while minimizing maintenance.
The ZPF Central Suction and Filter Unit is a self-cleaning cartridge filtration system designed to remove harmful fumes and dust from multiple workstations. Its fully automated POWER SPRAY system keeps the filters clean, extending their lifespan and minimizing downtime. The heavy-duty, modular construction allows for scalability, adapting to future increases in filtration demands.
All units are equipped with M-class dust filter cartridges, which immediately separate larger particles into the dust collection bin. An integrated compressed air tank ensures optimal dust removal performance, and conveniently located maintenance doors provide easy access to key components.
For enhanced safety and efficiency, options such as sound-dampening modules and spark pre-separators are available.
Key Benefits
Fully Automatic Filter Cleaning with POWER SPRAY System: Minimizes maintenance and extends filter life, ensuring consistent performance.
High Airflow Capacity for Large-Scale Industrial Applications: Effectively handles the demands of large workshops and production facilities.
Self-Dust Removal System for Minimal Maintenance: Reduces the need for manual cleaning, saving time and labor.
Modular Setup for Increased Suction Power and Filter Surface: Allows for easy expansion and customization to meet evolving needs.
Snap-Closure Dust Bin for Easy Disposal: Simplifies waste management and ensures a clean working environment.
Integrated Compressed Air Tank for Efficient Dust Removal: Provides reliable and consistent cleaning performance.
Applications
Large-scale welding and fabrication workshops
Multi-station industrial air extraction systems
Automotive and aerospace manufacturing facilities
Heavy machinery production and metal processing plants
Industrial environments requiring high-volume air filtration
Volumetric Flow of Fan: 3000 – 24700 CFM
Max. Pressure: 2,500 – 5,600 Pa
Motor Performance: 5.5 – 55.0 kW
Separation Efficiency: ≥99%
Filter Surface: 1,615 – 7,267 sq ft
Welding Fume Class: W3 Certified
