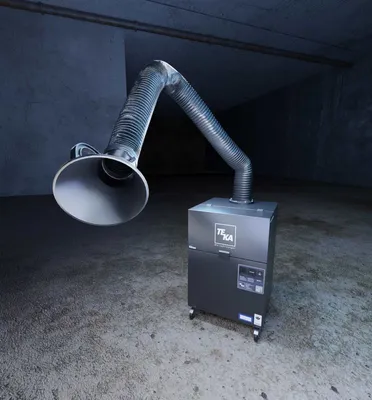

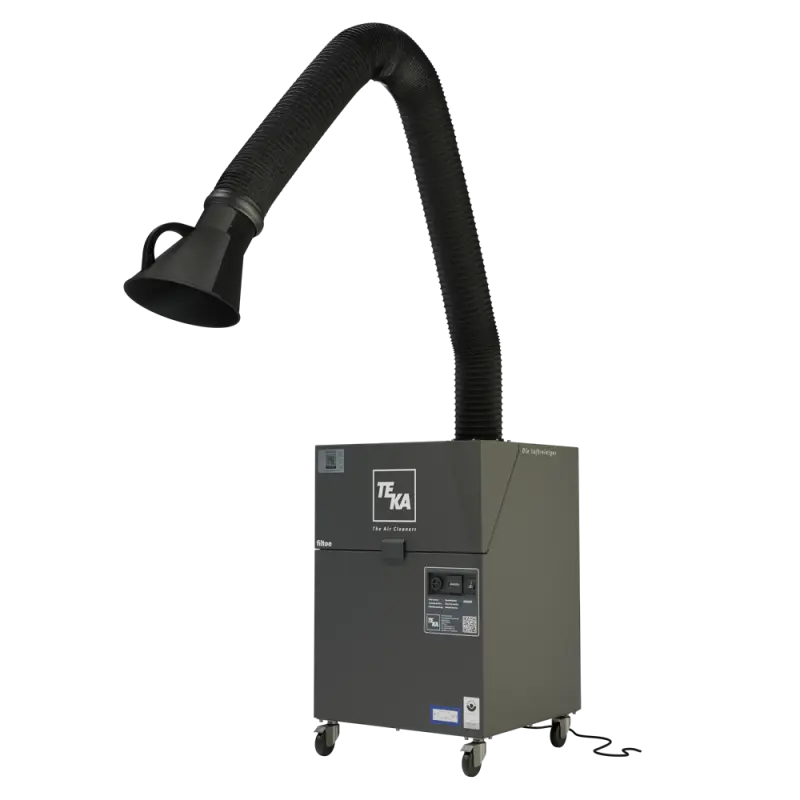

Filtoo Mobile Welding Fume Extractor with 10 ft. Arm
Overview
Description
Now Only $2,990 (Reg. $4,100)
The TEKA Filtoo Mobile Welding Fume Extractor is a compact, durable mobile extraction unit designed for effective filtration of welding fumes, dust, and fine particles. Ideal for welding shops, dental labs, and restoration work, the Filtoo features a powder-coated steel body, multi-level filter system, and easy-access maintenance panel for quick filter changes.
Certified by the IFA (W3 filter class), this plug-and-play unit ensures clean air and quiet operation, just connect the arm and go.
The Filtoo Mobile Welding Fume Extractor is a compact and robust mobile extraction unit suitable for various dust types, including welding fumes, and is also appropriate for dental laboratories and restoration work. Its sturdy steel construction is powder-coated inside and out. The filter elements are easily accessible via a maintenance cover for quick removal and replacement. The unit features convenient controls and is certified according to DIN EN ISO 15012-1. It is tested and approved by the IFA for filter class W3 as a mobile suction unit (IFA Nr. 201020469/1140).
This unit is designed for separating smoke generated during cutting and joining processes on non-alloyed steel and high-alloyed chromium and nickel steels. Polluted air is drawn into the unit through the extraction hose and passes through a multi-level filter system, removing particles and gases. The cleaned air is then returned to the workspace through sound-dampening module grilles. The Filtoo is a plug-and-play system; only the arm needs to be connected before operation. The optional STAVO pre-separator minimizes the risk of filter ignition from sparks.
Key Benefits
Compact and robust design.
High separation efficiency (≥99%).
Multi-level filtration system.
Easy filter access and maintenance.
Plug-and-play system.
Suitable for various dust types, including welding fumes.
Certified by IFA for W3 filter class.
Applications
Metalworking
Welding
Any application requiring mobile fume and dust extraction.
Specifications
| Flow Rate | 942 ft³/min. | 942 ft³/min. |
|---|---|---|
| Power | 1.5 hp | 1.1 kW |
Max Fan Performance: 942 CFM (1600 m³/h)
Max Pressure: 1,800 Pa
Suction Inlet: 6in
Sound Level Approx: 72 dB(A)
Main Filter Class: H13
Separation Efficiency: ≥ 99%
Filter Equipment: pre-filter mat, pre-filter cassette, activated carbon filter, main filter
Drive Power: 1.5 hp 115V
Dimensions (W x D x H): 22.8 in x 22.8 in x 35.4 in (580 x 580 x 900 mm)
Weight Approx,: 176 lbs (80 kg)
