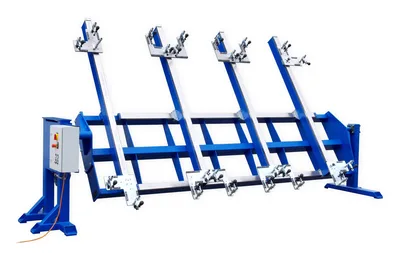

The Frame Welding Fixture provides precise, adjustable clamping and full-frame accessibility with a swiveling design, ensuring efficient and accurate welding on all sides of rectangular frames.
Forster America’s Frame Welding Fixture is designed for fast, efficient, and precise welding of frames. With easy adjustments, optimal clamping technology, and a swiveling capability, this fixture ensures seamless welding on all sides of your frame.
Key Features & Benefits
Optimized Welding Access for Superior Results: The fixture exposes the upper and lower angles of the frame, providing clear access for welding operations. This design allows for high-precision welds without obstruction, improving efficiency and accuracy.

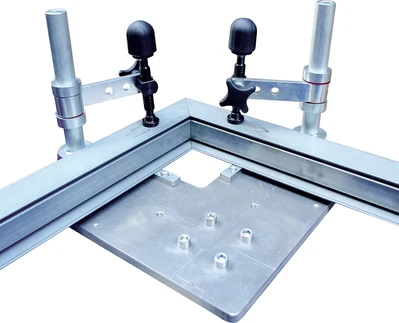

Advanced Clamping System for Maximum Stability: Equipped with mechanical clamping elements and spindle-compression, the fixture ensures secure positioning while compensating for any irregularities in the joint. The left-side clamping corner serves as the 0-point for both the x- and y-axis, offering a consistent reference for every setup.

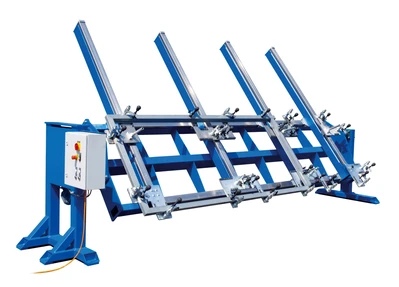

225° to 360° Swiveling for Full-Frame Accessibility: Depending on the size of your components, the fixture can swivel between 225° and 360°, allowing welders to access every side, including the underside, without repositioning the frame manually.
Customizable Adjustments for Versatile Applications

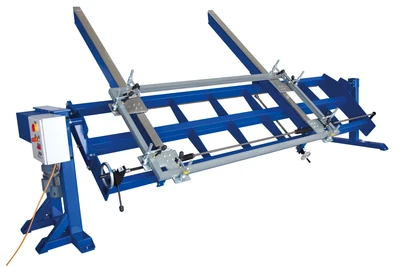

Manually adjustable in both the x- and y-axis for precision positioning.
Profile cross-section capacity: max. 100 x 100 mm, accommodating a range of frame sizes.
4x adjustable clamping corners aligned with measuring tape for easy setup.
Mounted at an optimal axis level of 1,000 mm for ergonomic operation.
Operates on a 380–480 V / 50–60 Hz power supply, ensuring compatibility with industrial welding environments.
Increase Productivity, Reduce Setup Time
By streamlining frame welding processes and minimizing manual repositioning, the Frame Welding Fixture reduces downtime and increases overall productivity. Whether you’re welding small or large rectangular frames, this system ensures consistent precision, efficiency, and repeatability in every application.
For precise, high-efficiency frame welding, the Forster America Frame Welding Fixture is the ultimate solution.
64203015: for Frames 3.000×1.500 mm
64103020: for Frames 3.000×2.000 mm
64103025: for Frames 3.000×2.500 mm
64304320: for Frames 4.300×2.000 mm
64304325: for Frames 4.300×2.500 mm
64504330: for Frames 4.300×3.000 mm
