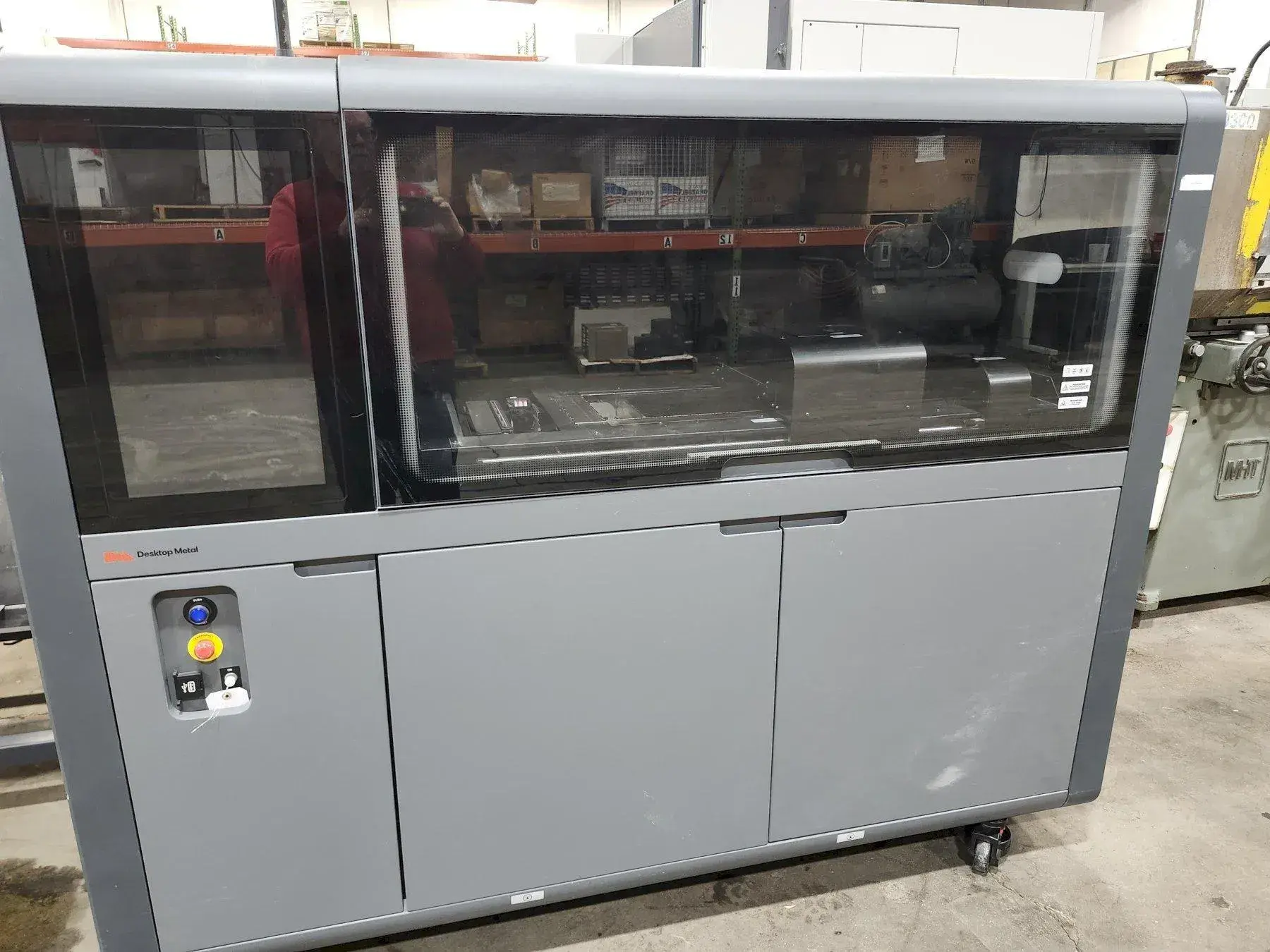

USED 2021 DESKTOP METAL SHP-PP0009

Desktop SHP-PP0009 Metal 3D Metal Printing Shop System (2021)
CNC Control: yes
Type of CNC Control: Desktop Shop System Control
Print technology: Binder Jetting
Print direction: Uni-directional
Maximum throughput: 800 cc/hr
Layer thickness: 50 μm - 100 μm
Native printhead resolution: 1,600 dpi (1 pL native drop size)
Dimensional tolerance of parts: ± 2.0%***
Binder jetting module: 70,000 nozzles (5x redundancy)
BUILD ENVELOPES: 12L - 350 x 222 x 150 mm (13.8 x 8.7 x 5.9 in)
Dimensions: External dimensions (W x D x H) 1,990 x 760 x 1,630 mm (78.3 x 29.9 x 64.2 in)
ELECTRICAL: Power requirements - 100-120V, 12.5A. 220-240V, 5.6A. 50/60 Hz, 1.03 kW
Key benefits
▪ Turnkey system, from printing through sintering
and powder recycling
▪ High resolution printing (1600 dpi)
▪ Maximum throughput of 800 cc/hr
▪ Configurable build envelope
▪ Print previously inaccessible complex geometry
▪ Flexible production from low-volume batches through
mid-volume production
The Shop System™ is the world’s first metal binder jetting system
designed specifically for machine shops—enabling shops to easily
produce parts with exceptional surface finish and resolution at scale.
With production rates of up to hundreds of green parts per day,
the Shop System™ produces parts up to 10x faster than laser powder
bed fusion*. Employing a ~1 pL droplet size, the Shop System™
achieves superior surface finish, bleed control and rich feature detail
at high speed. The Shop System is now available in three packages,
enabling reductions in operating costs and material flexibility for high
throughput customers.
