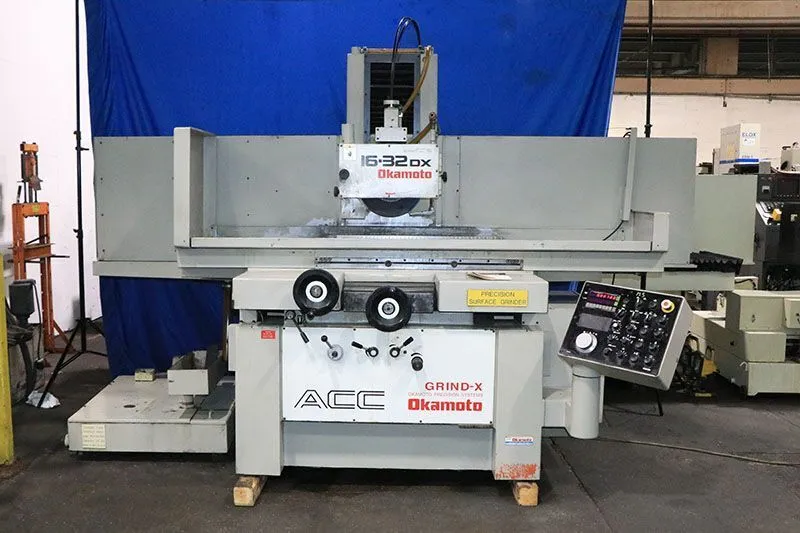

Okamoto ACC-1632DX High Precision Surface Grinder, New in 2001
| Table-W | 16" | 406.4 mm |
| Table-L | 32" | 812.8 mm |
| Horz/Vert | Horz | Horz |
| Power | 5 hp | 3.7 kW |
| Grinding Wheel Width | 2" | 50.8 mm |
| Grinding Wheel Dia. | 12" | 304.8 mm |
| Dimensions | 132” x 87” x 82" | 132” x 87” x 82" |
| Weight | 8,800 lbs | 8,800 lbs |
General Specifications:
Nominal Grinding Capacity: 16" x 32"
Height Under 12" Wheel to Table Surface: 21.5"
Table Speed, Infinitely Variable: Up to 82' FPM
Longitudinal Table Movement
-Manual: 30""
-Auto Crossfeed Increment: 0.002" - .80"
-Auto Continuous Crossfeed: 4' - 40' FPM
Crossfeed - Manual
-Hand Feed per Rev: 0.25"
-Grad. of Handwheel: 0.001"
Max Crossfeed, Manual: 18"
Auto Incremental Downfeed Increments: 0.00005" - .0015"
Power Rapid Wheel Positioning Rate: 16" IPM
Spindle Motor: 5 HP
Wheel Size: 12" x 1.5" x 5"
Wheel Speed: 6,500 SFPM
Grinding Wheel Speed: 1,800 RPM
Machine Dimensions: 107" x 87" x 70"
Machine Weight: 8,800 lbs
16" x 32" Pole Cross Pattern, Electro Magnetic Chuck
Variable Hold Chuck Control
Power Over the Wheel Dresser with Micrometer Adjustment
Low Profile Coolant System
Wired for 3/60/460 Volt
