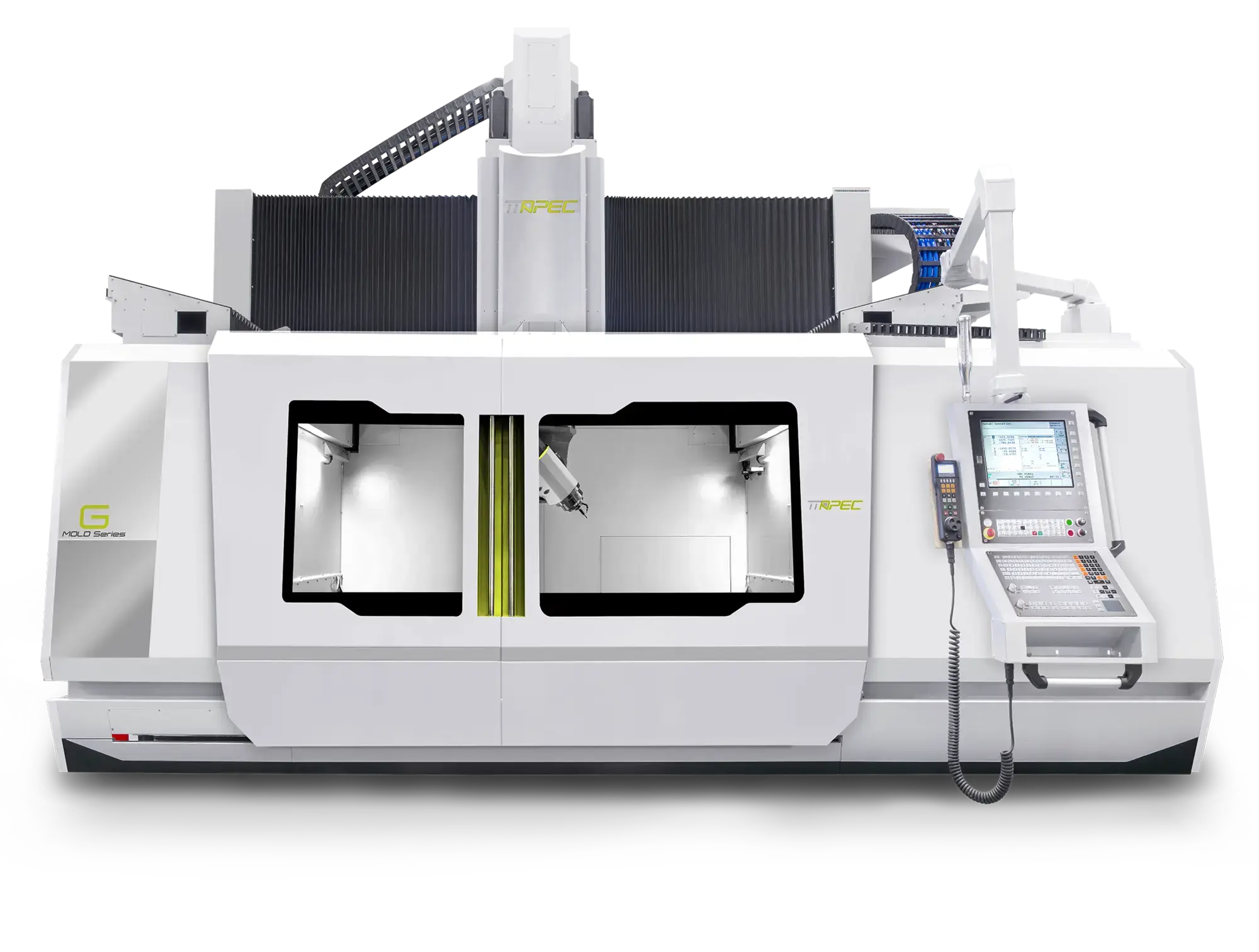

NEW APEC SK3040-5L
Overview
Description
The APEC SK2540-5L 5-Axis High Speed Gantry Machining Center is designed for manufacturers who demand precision, rigidity, and speed in large-scale machining. Built with a double-column gantry structure and advanced 5-axis simultaneous machining capability, the SK2540-5L ensures exceptional stability and accuracy for complex geometries and multi-surface machining.
With a spindle speed of up to 24,000 RPM, linear motor-driven axes, and high-performance rotary tables, this machine is optimized for the aerospace, automotive, energy, and mold-making industries. Its oversized working envelope and high-load table capacity allow it to handle large, heavy workpieces while maintaining excellent dynamic accuracy. The gantry design minimizes vibration and ensures consistent precision, even under high-speed and heavy-duty cutting conditions.
The SK2540-5L is equipped with advanced automation features including an automatic tool changer (ATC), high-pressure through-spindle coolant system, and centralized lubrication, reducing downtime and maximizing productivity. With Siemens or Fanuc CNC controls available, operators benefit from intuitive programming, real-time monitoring, and high-speed processing.
This machining center provides a perfect balance of power, speed, and precision, making it a trusted solution for industries requiring superior surface finishes, tight tolerances, and maximum efficiency.
Key Features
• 5-Axis High Speed Gantry Machining for multi-surface precision and efficiency
• Spindle up to 24,000 RPM with high-torque capability
• Large working envelope designed for oversized and heavy workpieces
• Double-column gantry structure for maximum rigidity and vibration reduction
• Linear motor-driven axes for high speed and accuracy
• Automatic tool changer (ATC) for uninterrupted production
• High-pressure through-spindle coolant system for efficient chip removal and tool life extension
• Centralized lubrication system for low-maintenance operation
• Compatible with Siemens or Fanuc CNC controls with advanced programming and monitoring features
• Ideal for aerospace, automotive, mold, energy, and heavy machinery applications
Specifications
| X-Axis Travel | 4,000 mm | 157.48" |
|---|---|---|
| Y-Axis Travel | 3,000 mm | 118.11" |
| Z-Axis Travel | 1,000 mm | 39.37" |
| Spindle End to Table Distance | 50~1050 MM | 50~1050 MM |
| Table Size-X | 4,000 mm | 157.48" |
| Table Size-Y | 2,500 mm | 98.425" |
| X/Y Rapid Feed Rate | 60 m/min. | 2,362.2 in/min. |
| Z Rapid Feed Rate | 40 m/min. | 1,574.8 in/min. |
| Spindle Speed | 24,000 RPM | 24,000 RPM |
| Spindle Taper | HSKA63 | HSKA63 |
| Spindle power (S1/Max) | 60/75 kW | 60/75 kW |
| Spindle torque (S1/Max) | 48.2/60.5 Nm | 48.2/60.5 Nm |
| Swivel/Rotation Speed | B/C = 60 RPM | B/C = 60 RPM |
| Swivel/Rotation Torque | B/C = 1980/1740 Nm | B/C = 1980/1740 Nm |
| Clamping Torque | B/C = 4000 Nm | B/C = 4000 Nm |
| Swivel/Rotation Angle | A= ±120, C= ±360 | A= ±120, C= ±360 |
| ATC | 60 | 60 |
| Max. Tool Length | 300 mm | 11.811" |
| Max. Tool Weight | 8 lb | 3.6 kg |
| CN Control | Heidenhain TNC640 | Heidenhain TNC640 |
Equipped With
HEIDENHAIN TNC640 5-AXIS CNC CONTROLLER WITH HR520 MPG
AGA FORK TYPE MILLING HEAD
24,000 RPM BUILT-IN SPINDLE, 60 / 75 KW (S1/S6), 48.2 /60.5 NM(S1/S6), HSK63A
60 TOOLS ATC MAGAZINE
OIL AIR LUBRICATION DEVICE FOR SPINDLE
X/Y-AXIS WITH LINEAR MOTOR DRIVE
CHILLER FOR LINEAR MOTORS
GERMANY BRAKING SYSTEM FOR LINEAR MOTOR
Z-AXIS WITH HIGH SPEED BALL SCREW DRIVE
X/Y/Z-AXIS WITH HIGH RIGIDITY ROLLER TYPE LINEAR GUIDE WAY
5-AXIS WITH HEIDENHAIN OPTICAL LINEAR / CIRCULAR SCALE
COUNTER BALANCE SYSTEM
CHIP FLUSHING SYSTEM (INCLUDING CHIP CONVEYOR)
ENLARGE COOLANT TANK WITH OIL SKIMMER
AUTOMATIC TOOL CHANGER W
SPINDLE CHILLER
SPINDLE THERMAL COMPENSATION
AIR THROUGH SPINDLE
AIR AROUND SPINDLE
70 BAR COOLANT THROUGH SPINDLE
COOLANT AROUND SPINDLE
AIR CONDITIONER FOR ELECTRICAL CABINET
AIR DRYER
OIL MIST COLLECTING SYSTEM
WATERPROOF LED WORKING LAMP
SAFETY INTERLOCK OF FRONT AND BACK DOOR
AUTOMATIC OPEN/CLOSE TOP ROOF SLIDING COVER
BLUM TOOL LENGTH MEASURING SYSTEM
BLUM WORKPIECE MEASURING SYSTEM × 1
VACUUM PREPARATION
