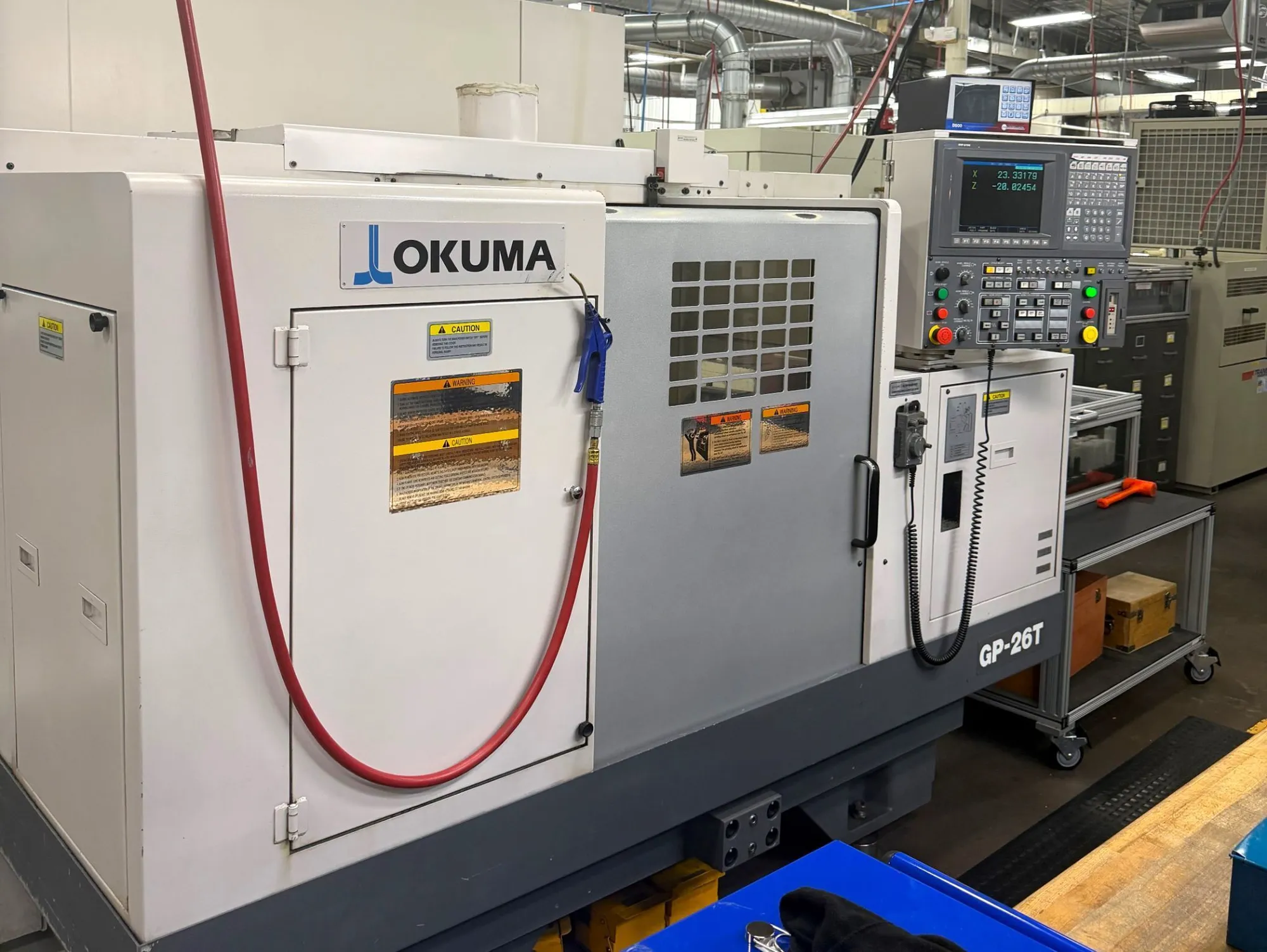

USED 2011 OKUMA GP-26T

Illinois, United States
3,091Listings|671Followers
Overview
Cylindrical Grinders Including Plain & Angle Head

Very Low Utilization Okuma GP-26T CNC Cylindrical Grinder New in (2011) boasts a range of features tailored to precision grinding needs. Its rigid and thermally stable construction ensures consistent performance even under demanding conditions. Equipped with Okuma's OSP U10G CNC Control, operators benefit from intuitive interface and advanced functionalities for efficient setup and operation.

This grinder offers high accuracy through its direct-drive workhead and hydrostatic bearing technology, facilitating precise grinding operations. With a spacious work envelope and versatile wheelhead options, it accommodates various workpiece sizes and shapes. Additionally, the GP-26T integrates Okuma's Intelligent Technology, providing automatic wheel balancing and in-process gauging for enhanced productivity and part quality. Overall, it's a reliable solution for achieving tight tolerances and superior surface finishes in cylindrical grinding applications.

Specs
Swing
12.99"
329.95 mm
Centers
25.6"
650.24 mm
Plain or Angle Head
Plain
Plain
Grinding Wheel Dia.
24"
609.6 mm
Wheel Power
10 hp
7.5 kW
Wheel Speed
8,859 RPM
8,859 RPM
Plunge
Yes
Yes
Gauging
Yes
Yes
Dresser
Yes
Yes
Control
CNC (OSP U10G CNC Control)
CNC (OSP U10G CNC Control)
Dimensions
95" x 96" x 97"
95" x 96" x 97"
Weight
12000
12000

Okuma GP-26T CNC Cylindrical Grinder (2011)

CATALOG SPECIFICATIONS:
12.99 Swing
25.6 Distance Between Centers
110 Lbs. Max Workpiece Weight
24 Dia x 2.9 Wide Grinding Wheel
20 HP Spindle Motor
8859 FPM Peripheral Wheel Speed
12.59 X-Axis Wheel Slide Travel
25.59 Z-Axis Travel
#4 MT Center Hole Taper in Work Spindle
#4 MT Center Taper in Tailstock
12,000 Approx Machine Weight
Dimensions 95" x 96" x 97"

Equipped With

OSP U10G CNC Control
Model CTS 3300 Rotary Dresser
Shoulder Gauge (Lateral Locating Gauge)
Coolant System
D500 In-Line Post Process Spool Gage
Kanto Seiki Oilmatic Chiller
In Process Sizing Gauging W/ G2 Heads
Live / Dead Switchable Work Head
20 HP Main Motor Drive
Marposs Sensor I/F
Coolant System Prep
Air Regulator and Filter
DNC
19-35mm Wheel Flange
35-60MM Flange
Prep For Mist Collector
SBS Auto Wheel Balancer
Prep For Oil
SBS Sensor
Blast Gates
