5 HP Vertical V.S. head and 5 HP horizontal spindle, #40 NMTB,
| Table Size-W | 11" | 279.4 mm |
| Table Size-L | 51.5" | 1,308.1 mm |
| Power | 5 hp | 3.7 kW |
| Dimensions | 74" LONG X 62" WIDE X 94" TALL | 74" LONG X 62" WIDE X 94" TALL |
| Weight | 5750 lbs | 5750 lbs |

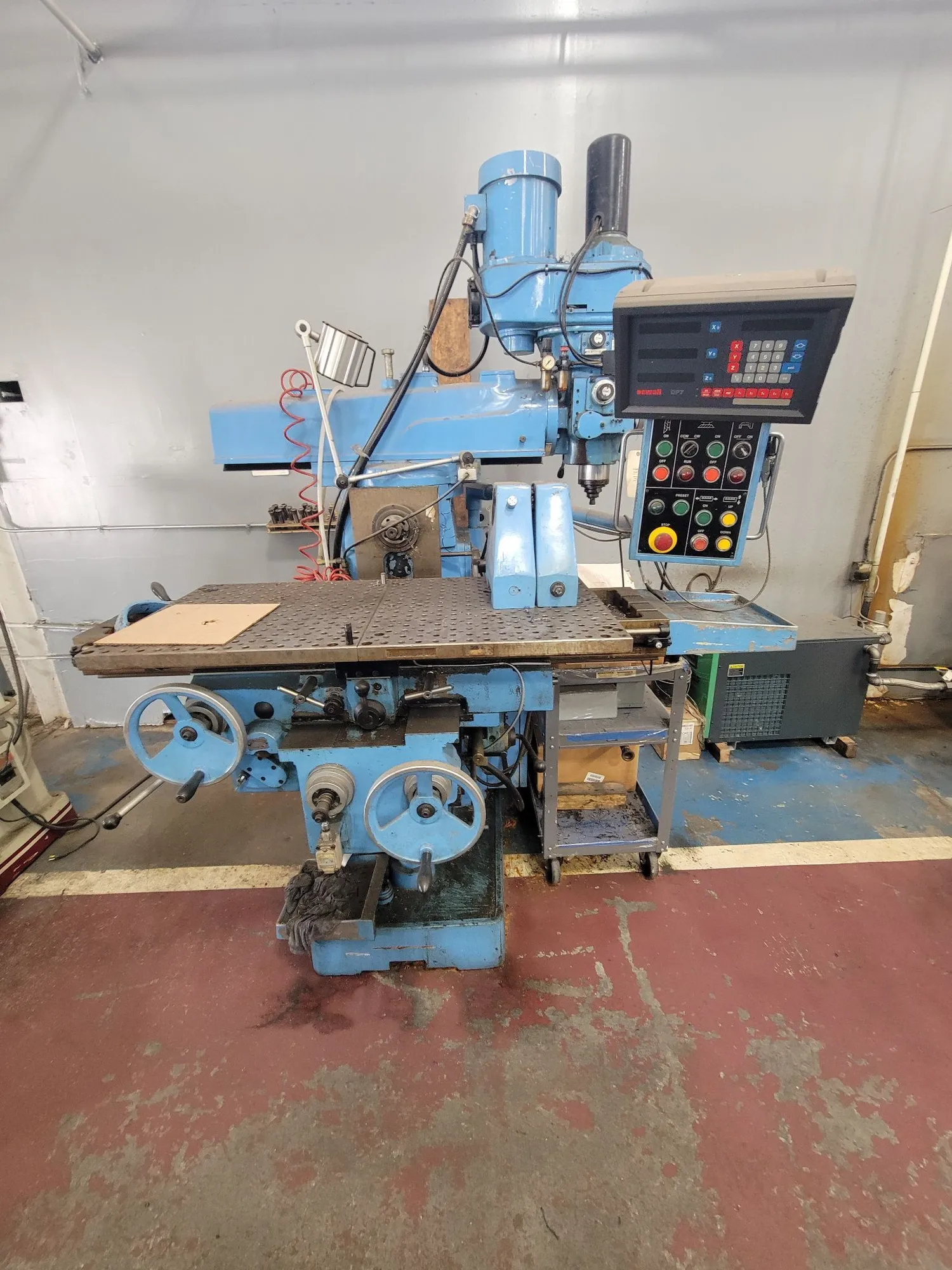

MODEL.......................: YCM-2GS-16
TABLE SIZE..................: 51.2" X 11"
TABLE TRAVEL LONGITUDINAL...: 39.4"
CROSS TRAVEL................: 16"
VERTICAL....................: 17.7"
TABLE FEEDS:
LONGITUDINAL & CROSS........: 1/2 TO 23-3/4 IPM
RAPID TRAVERSE:
LONGITUDINAL & CROSS........: 118 IPM
VERTICAL....................: 31-1/2 IPM
HORIZONTLE SPINDLE:
TAPER.......................: 40
NUMBER OF FEEDS.............: 9
RANGE OF SPEEDS.............: 85 TO 1300 RPM
MAIN SPINDLE MOTOR..........: 5 HP
SWIVEL OF COLUMN............: 45 DEGREES
VERTICAL SPINDLE:
MAIN MOTOR..................: 5 HP
RANGE OF SPEEDS.............: 75 TO 4220 RPM
SPINDLE NOSE TAPER..........: 40 TAPER
QUILL FEEDS.................: 3: .0015, .005, .003 IPR
QUILL TRAVEL................: 5-1/2"
SWIVEL ANGLE OF HEAD........: 90 DEGREES
MACHINE WEIGHT: 5,720 LBS
DIMENSIONS: 74" LONG X 62" WIDE X 94" TALL
Newall 3 axis DRO, 2 overarm Arbor supports, Drilled and tapper Sub plate, Power draw bar vertical, Full power knee with rapids,
