| X | 24" | 609.6 mm |
| Y | 20" | 508 mm |
| Z | 24" | 609.6 mm |
| Power | 12 hp | 8.9 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 20" | 508 mm |
| Table-L | 30" | 762 mm |
| # Axis | 3 | 3 |
| Control | CNC (Hurco) | CNC (Hurco) |
| Dimensions | R-L 153″ x F-B 86″ x Height 110″ | R-L 153″ x F-B 86″ x Height 110″ |
| Weight | 9,100 Lbs. | 9,100 Lbs. |

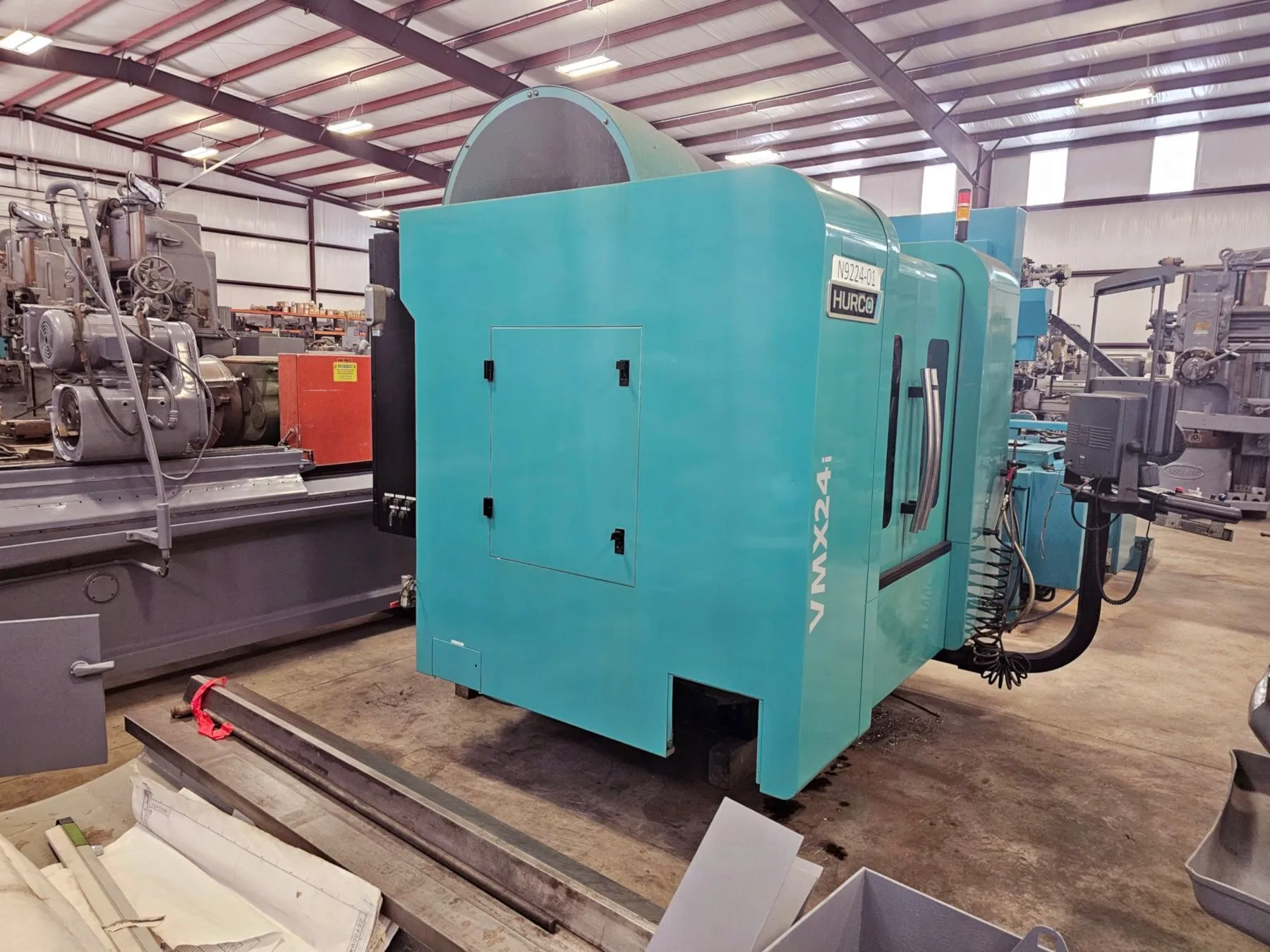

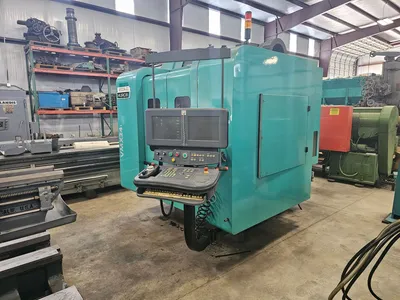

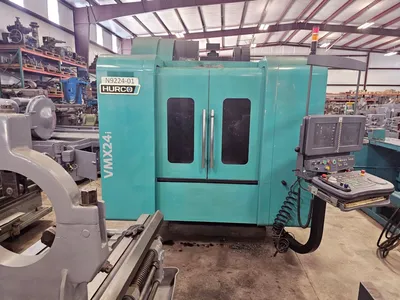

Type of CNC Control...............................Hurco
Year Of Mfg.......................................10-01-2014
Table Size........................................20″ x 30″
Maximum Weight on Table...........................3,300 lbs.
# Axis............................................3
Number Axis.......................................3
X-Axis Travel.....................................24"
Y-Axis Travel.....................................20"
Z-Axis Travel.....................................24"
Spindle Speed.....................................12,000 RPM
Spindle Taper.....................................CAT-40
Spindle Torque Peak...............................70 ft-lbs. @ 900 rpm
Main Motor........................................12
Tool Changer Capacity.............................30
Floor Space.......................................R-L 153″ x F-B 86″
Height............................................110″
Machine Weight....................................9,100 Lbs.
Chip Conveyor.....................................Yes
High Pressure Coolant.............................Yes
Machine has just arrived. It will be cleaned and cycled.
