5-axis mill/turn with pallet changer, 120 tools BT40, The NMV 5000 DCG is a 5-axis, vertical machining center equipped with the DMG MORI original technologies: the DDM (Direct Drive Motor) to achieves zero backlash, the DCG (Driven at the Center of Gravity) to control vibration for higher acceleration, and the ORC (Octagonal Ram Construction) to ensure high-speed, high-precision feed.
The model achieves high-efficiency, high-quality machining of complex-shaped workpieces up to φ700 × 450 mm. With one clamp, any area except the clamped section can be machined.
| X | 28.7" | 728.98 mm |
| Y | 20.1" | 510.54 mm |
| Z | 20.1" | 510.54 mm |
| # Axis | 5 | 5 |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 120 | 120 |
| Taper | BT40 | BT40 |

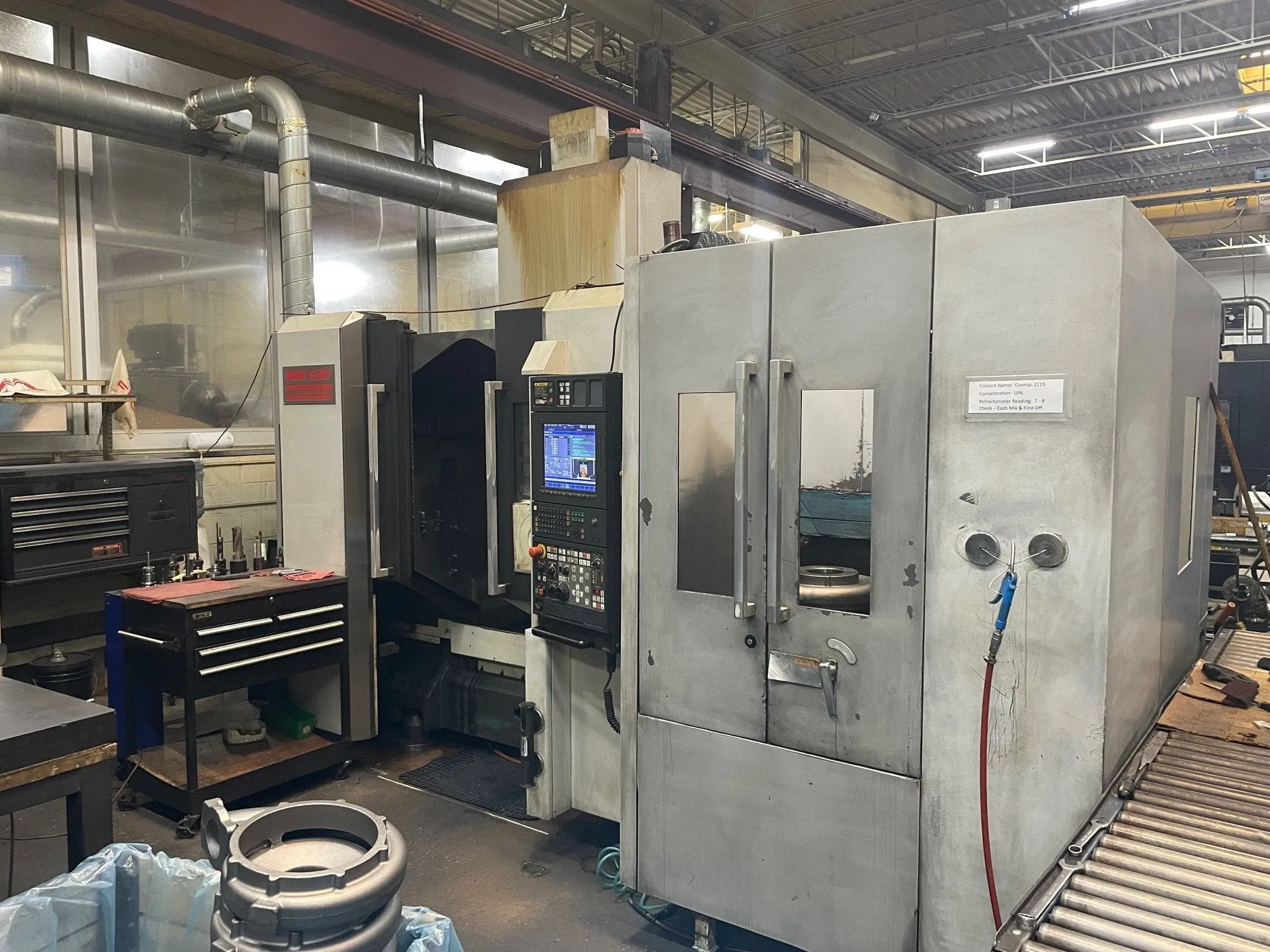

DMG Mori NMV5000DCG 5 Axis Vertical Machining Center (2010)
Table Size
19.7" round
Table Capacity
660 pounds
Max. X-axis travel
28.7 in.
Max. Y-axis travel
20.1 in.
Max. Z-axis travel
20.1 in.
B Axis Head Tilt
+160° to -180°
C Axis Index
360°
Max. workpiece diameter
19.7 in.
Max. workpiece height
17.7 in.
Max. workpiece weight
661.4 lbs.
Spindle Speeds
12000 RPM
# Axis
5
Rapid Traverse Rate (X/Y/Z)
1,968/1,968/1,574
Spindle Taper
HSK 63
Spindle Speed
12,000 rpm
Main Motor
25 hp
Tool Changer Capacity
120
5-axis Mill/Turn with Pallet Changer, 120 tools BT40, 12000 RPM
