12000 RPM, 5 Axis
| size | 24" x 30" x 20" | 24" x 30" x 20" |
| X Travel | 24.8" | 629.92 mm |
| Y Travel | 30.12" | 765.05 mm |
| Z Travel | 20.08" | 510.03 mm |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 120 | 120 |
| Taper | 40 | 40 |
| Table-W | 19.69" | 500.13 mm |
| Table-L | 19.69" | 500.13 mm |
| # Axis | 5 | 5 |

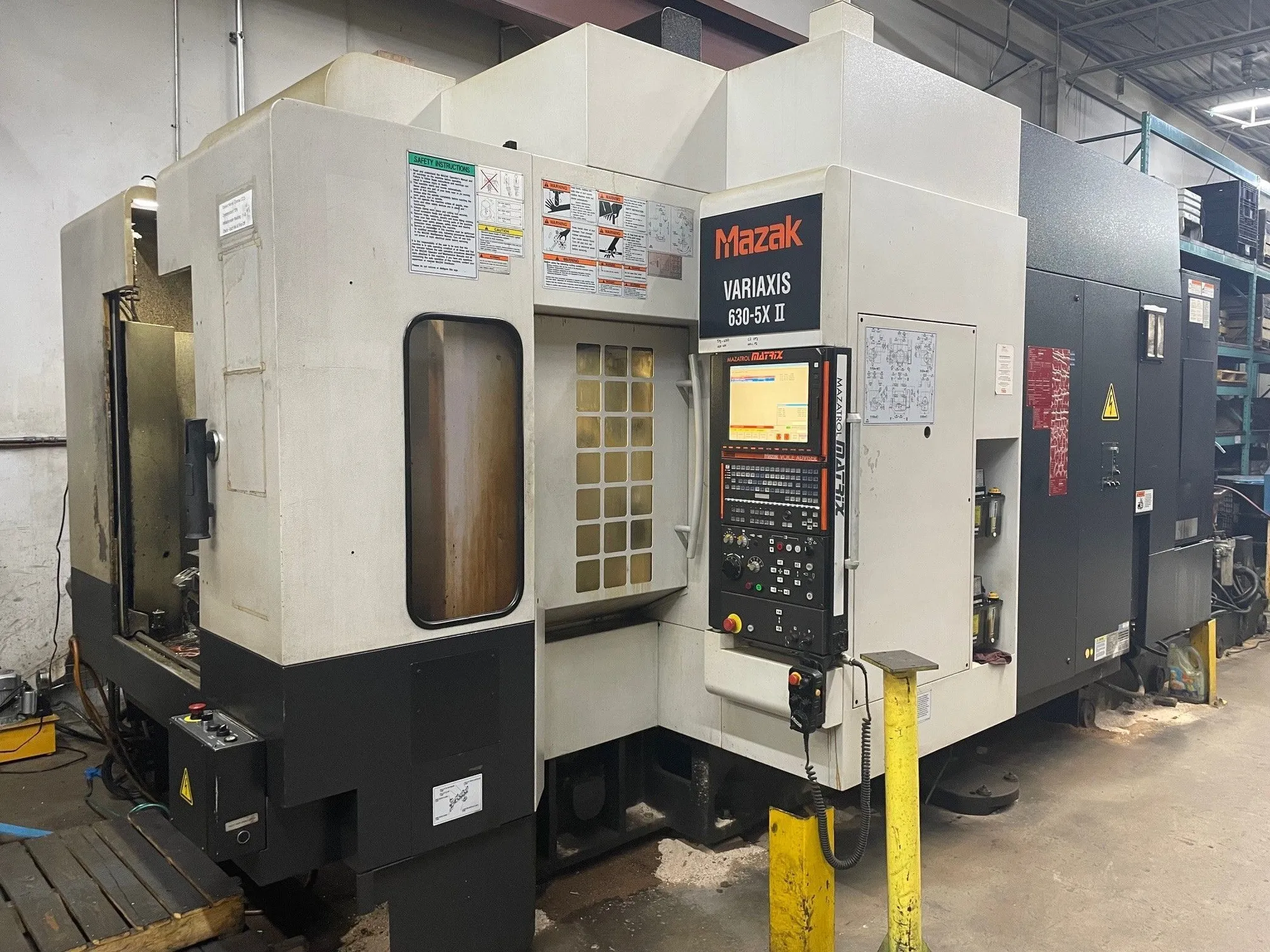

Mazak Variaxis 630-5X II 5 Axis Machining Center (2011)
Table Size:
19.69 IN x 19.69 IN
Max Table Load Capacity:
1,102 LBS
Spindle Nose to Table:
9.06 IN – 29.13 IN
Spindle Speed:
12,000 RPM
Spindle Horse Power:
30 HP
Spindle Taper:
CAT 40
X-Axis Travel:
24.8 IN
Y-Axis Travel:
30.1 IN
Z-Axis Travel:
20.08 IN
A-Axis Travel:
-120° to +/-30°
C-Axis Travel:
360° INF
Rapid Traverse Rate (X, Y, & Z):
1,969 IPM
Number of Tool Stations:
120 ATC
H
MAZATROL Matrix CNC
Simultaneous 5 Axis Cutting
Multi-Tap Transformer
Mist Collector
Through Spindle Coolant
Renishaw Part Probing
Chip Conveyor
