NEW 2026 ACRA FEL-1660 ENC

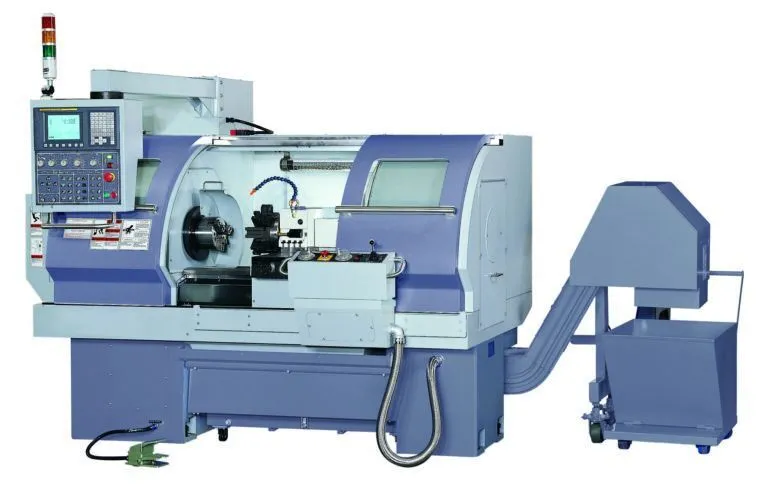

2026 ACRA Mode FEL 1660ENC Engine Lathe with Fanuc 0i Mate TD Conversational Control
The ACRA FEL-1660 CNC Lathes are versatile Teach type CNC flat bed Lathes with Manual, Conversational, Teach, and CNC operating modes. The bed features a rugged MEEHANITE casting, with thick widely spaced cross supports and induction hardened ground ways for accuracy and rigidity. Coolant system with removable tank is standard. Precision ground Ballscrews are driven by AC digital servo motors. The spindle is driven by an infinitely variable AC inverter and includes constant surface speed and threading functions.

The Acra FEL1660ENC is a machine designed for precise fabrication tasks across different sectors. Known for its accuracy, this model serves industries that demand high-quality machining. Handling tasks such as creating intricate parts, it supports manufacturers ranging from aerospace to automotive. The Acra FEL1660ENC is engineered for reliability, with capabilities that include crafting small components or working on larger parts. Industries using this model value its performance and adaptability, as it accommodates a variety of materials and job requirements. This machine stands out in environments where precision and efficiency are crucial. From small-scale workshops to large production floors, the Acra FEL1660ENC finds a place in diverse operations.
This machine will be useful on day #1 with any level of operator, for production or prototype. It can be operated manually with jog joysticks and MPG hand wheels Teach and Repeat, user interactive Conversational, or full blown CNC G-Code / M-Function with macros. Some models include a Part Shape program generator, with graphics display

Specifications:

Swing Over Bed: 16.14″
Max. Working Length: 47.63″
Max. Working Diameter: 8.66″
Between Centers: 55.90″
Width of Bed: 10.236″
Spindle Nose: A25
Spindle Center Sleeve: M.T. #4
Spindle Bore: 1.81″
Bar Capacity: 1.41″
Range of Spindle Speed: 40 – 5,000 RPM (Infinite Variable)
Motor: 7.5 HP (10 HP Optional)
Travel X: 8.07″
Travel Z: 34″
Rapid Travel: 295.3/393.7 ipm
Axis Motor: 1 HP
Z Axis Motor: 1.6 HP
Turret:
Tool Station: Standard Manual 4-Way Tool Post
Boring Bar Diameter: 20mm (0.787″)
Tailstock:
Quill Taper: M.T. #4
Quill Diameter: 2.28″
Quill Travel: 5.5″
Standard Equipment:
Fanuc Oi Mate TF Controller
Halogen Light Yes
Coolant System
Mechanical Specifications:
Dimensions: 80″ x 117 1/2″ x 86 1/2″ H
Weight: approx. 6,063 lbs.

FOB Factory

Key Features:
Controls: Fanuc 0i Mate-TF, or optional conversational systems.
Operation: Full CNC, Teach-and-Repeat, and manual operation via MPG handwheels.
Construction: Induction hardened and ground ways, heavy-duty Meehanite casting.
Standard Equipment: Hydraulic tailstock quill, 6" hydraulic chuck, auto lubrication system, and coolant system. Moving door Splash Guard
4 Way Tool Post
Halogen Light
Options: Hydraulic V8 turret or 4-station electrical turret.

OPTIONS
6" Hydraulic Chuck & Actuator $4,100.00
Steady Rest $600.00
Follow Rest $350.00
Chip Conveyor $4,400.00
Hydraulic Turret or V8 turret $3,500.00
Hydraulic Tailstock Quill $2,800.00
Chuck Guard $500.00
